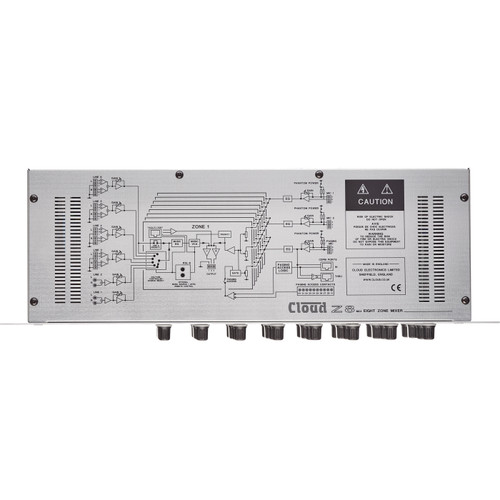

The Z8MK4 is the latest generation of the ever popular Z-Series Venue Zone Mixer. The latest upgrades include a number of new features which make the Z8MK4 even more flexible and installer friendly.
A Universal Power Supply (85-254v) allows the Z8MK4 to be installed anywhere in the world, regardless of mains supply. The new up-rated power supply also provides increased output to support connection of up to 600mA of internal accessories such as EQ cards and external devices such as LM-2 Line/Mic/Remote Mixer Modules and Paging Consoles. The addition of a new RJ45 THRU/IN terminals allows for the simple connection of Cloud Digital Paging Microphones and the addition of four balanced inputs add to the flexibility and increased installer friendliness.
The Z8MK4 is a complete solution for multi-zone, multi function venues. With the ability to accept up to six input sources directly such as Media player, MP3, Hardisc, CD, Video, Satellite etc., the Z8MK4 has been developed to act as a user friendly master control for an entire sound system.
Connecting an LM-2 or LM-2A active module extends the versatility providing additional localized inputs and control allowing designers to provide simple, cost effective solutions to many customers' requirements that are difficult to achieve with other manufacturers' products.
| Line Inputs | |
|---|---|
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| Distortion | |
| Sensitivity | -11 dBu (218 mV) to +12.5 dBu (3.2V), +/0.5 dBu |
| Input Gain Control | 20 dB (unbal i/p's); 22 dB (bal i/p’s) |
| Input Impedance | 47 kohms |
| Headroom | >20 dB |
| Noise | -90 dB A Weighted (0 dB Gain) |
| Equalisation | HF: ±10 dB @ 10kHz, LF: ±10 dB @ 50 Hz |
| Microphone Inputs | |
| Frequency Response | 100 Hz / -3 dB (Filter) 20 kHz ±0.5 dB |
| Distortion | |
| Gain Range | 10 dB – 50 dB |
| Input Impedance | >2 kohms (Balanced) |
| Phantom Power | +12 V (Internal DIP Switch For On/Off) |
| Headroom | >20 dB |
| Noise | -120 dB EIN 22 Hz - 22 kHz (150 ohms) |
| Equalisation | HF: ±10 dB @ 5 kHz, LF: ±10 dB @ 100 Hz Fixed High Pass Filter: 3rd. order (18 dB/oct) @ 100 Hz |
| Facility Input | |
| Input Impedance | 10 kohms (Balanced); Pin 3 (+), Pin 4 (-) |
| Sensitivity | 0 dBu (775 mV) |
| Noise Gate | Use J4 to Disable |
| Outputs | |
| Balanced Zone Outputs | 775 mV (0 dBu), 3-Pin Screw Terminal Connector |
| Minimum Load Impedance | 600 ohms |
| Maximum Output Level | +20 dBu (7.75V) |
| General | |
| Power Input | 85 V to 253 V AC, 47 - 63 Hz |
| Fuse Rating | 250 V – T1A H (High Breaking Capacity) |
| Fuse Type | 20 mm x 5 mm 250 V |
| Dimensions (H x W x D) | 5.25" (132.5 mm) x 19" (482.6 mm) x 6.3" (160 mm) |
| Net Weight | 8.06 lbs (3.60 kg) |
