Collegiate Basketball Gymnasium Sound System with 8 JBL Loudspeakers 6 Pendant Speakers and 4 Pendant Subwoofers

Collegiate Basketball Gymnasium Sound System

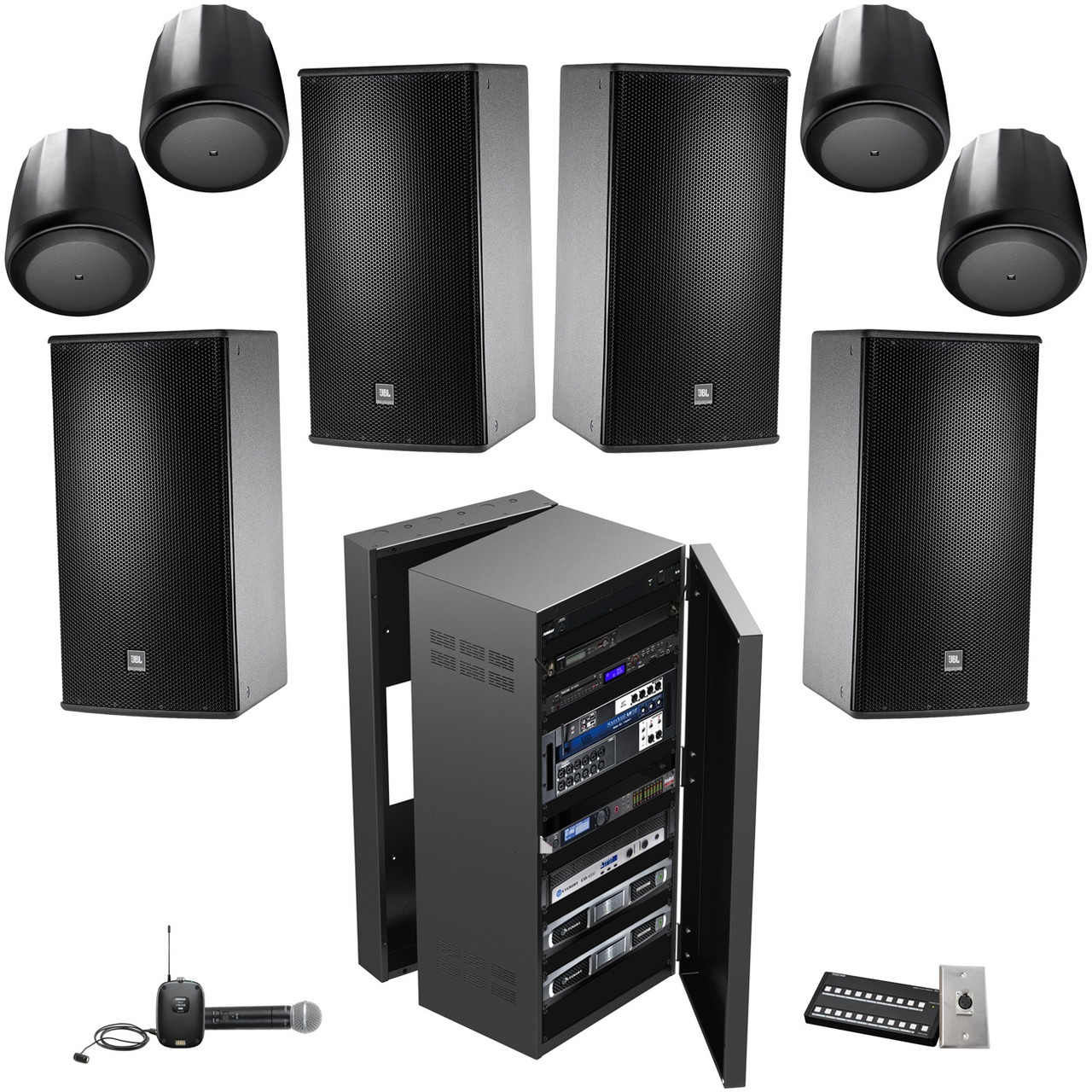

Rev up the crowd for the big game with this complete Collegiate Basketball Gymnasium Sound System featuring 8 JBL AM7215/95 Loudspeakers, 6 JBL Control 67 HC/T High ceiling pendant speakers and 4 JBL Control 60PS/T Pendant Subwoofers, for powerful high-quality sound and maximum coverage, so even those way in the back can hear.

The Soundcraft Ui16 remote controlled digital mixer with two Crown DCi 4|1250 4-channel power amplifiers and a Crown DCi 4000 power amplifier combine high performance with cross-platform compatibility and loudspeaker DSP signal processing offering the required flexibility and reliability needed in such a large system. A Shure SLXD124/85 combo wireless microphone system with hanheld and lavalier mic designed for clear high-quality sound great for announcements and performances. A DBX VENU360 loudspeaker management system provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. The accompanying DBX RTA-M reference microphone saves work and time by automatically "tuning" the room.

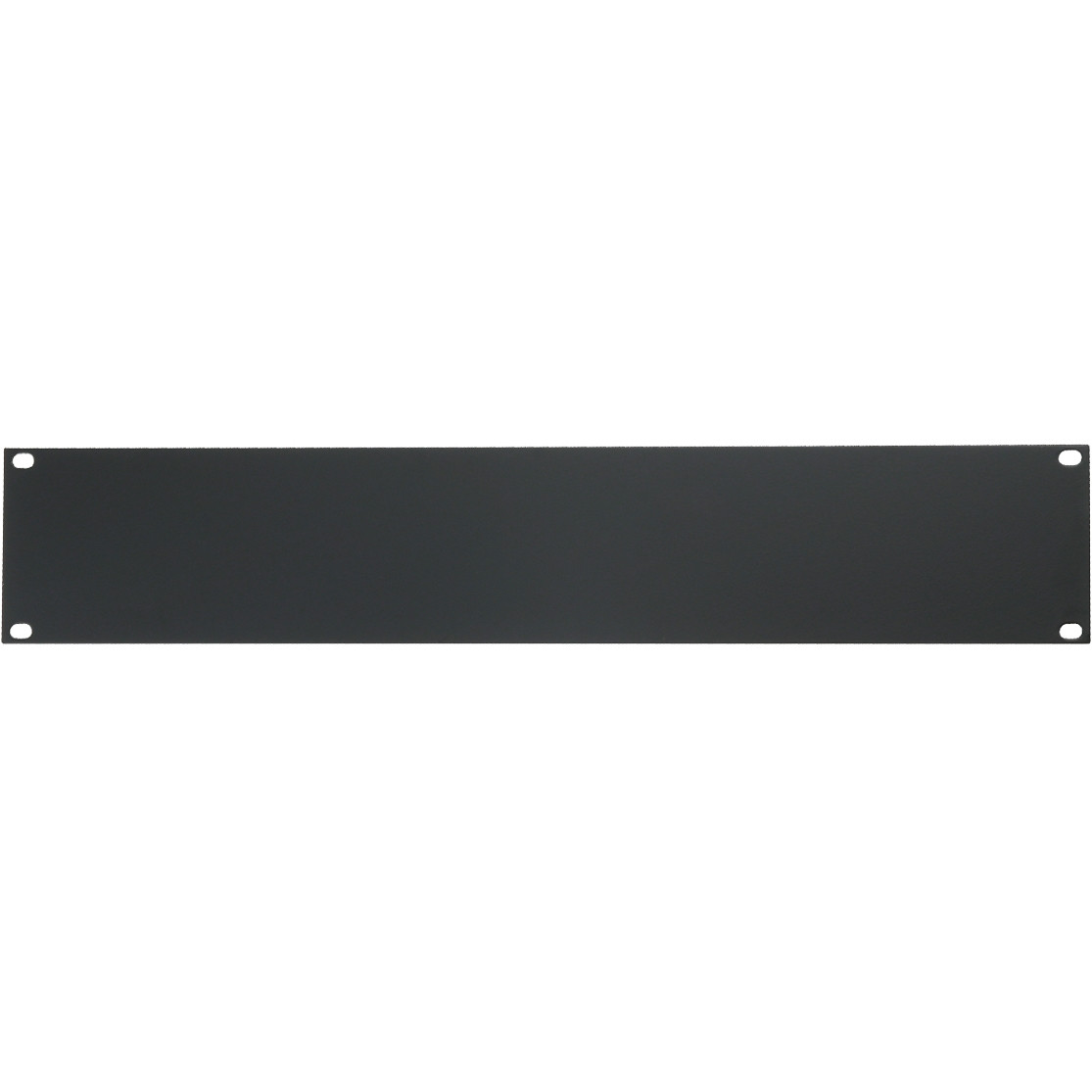

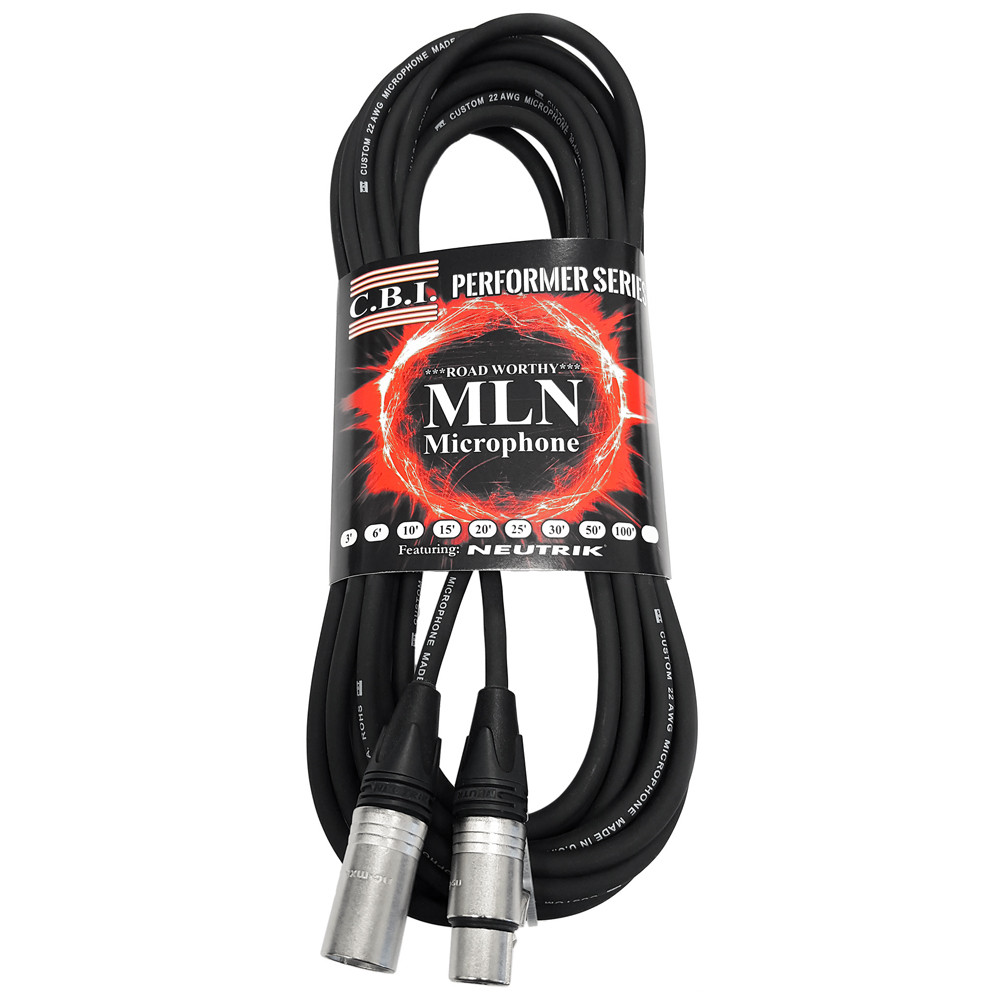

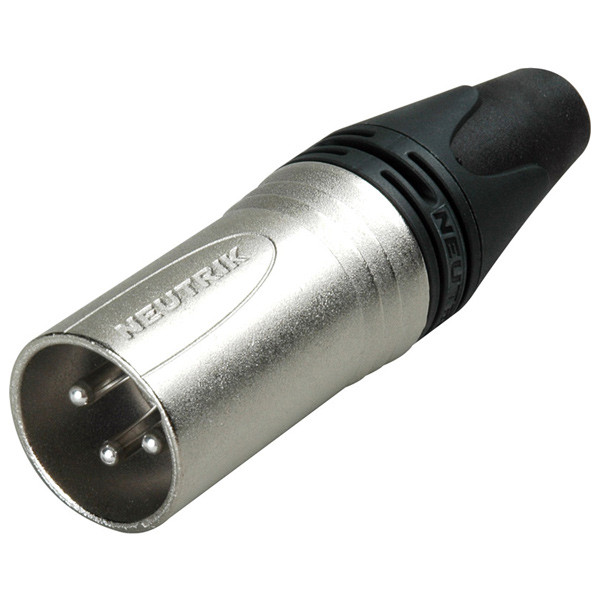

This system also includes Tascam CD-400 single rackspace cd player with Bluetooth and a Tascam RC-20 direct play remote for instant access to CD tracks and instant playback. A CBI WP1-1F XLR wall plate connects to the RC-20 for complete remote control of the CD player. A Furman M-8x2 Power Conditioner is included to protect all of the system's equipment from overload and an Atlas Sound 324-14 24U Wall Cabinet holds all rack-mounted equipment for easy access. Also included: 6 1U blank panels, 2 2U blank panels, a 250 foot unshielded wire, three 500 foot unshielded wires, ten 3 foot microphone cables, three 3 pole XLR male cable connectors, and 16 4 pole SpeakOn cable Connectors.

JBL AM7215/95 15" Loudspeakers with 90° x 50° Coverage

The AM7215/95 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array-ability.

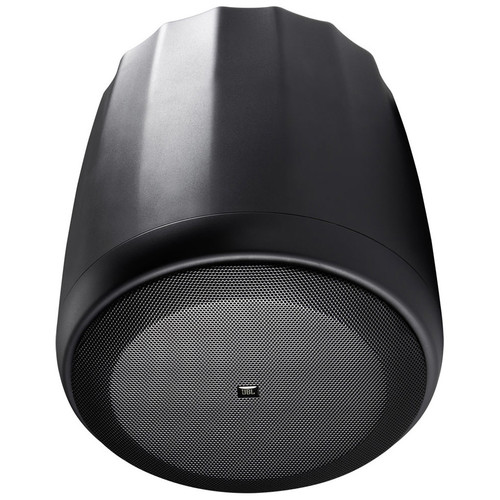

JBL Control 67 HC/T Narrow 75° Coverage High Ceiling Pendant Speakers

The well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics such as convention centers, transit centers, exhibit venues and hotel atrium areas. JBL’s patent-pending Radiation Boundary Integrator® (RBI) technology, adapted from the groundbreaking VERTEC Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining an extra-large 295 mm (11.6 in) diameter waveguide with low frequency projection apertures, the two coaxially-mounted drivers provide a seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality.

JBL Control 60PS/T Pendant Subwoofers

The JBL Control 60PS/T pendant subwoofer loudspeaker with crossover, provides bass extension and high impact. Features 150 Watt power handling and low distortion, the long-excursion 8" low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 2" voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty-cycle, working conditions.

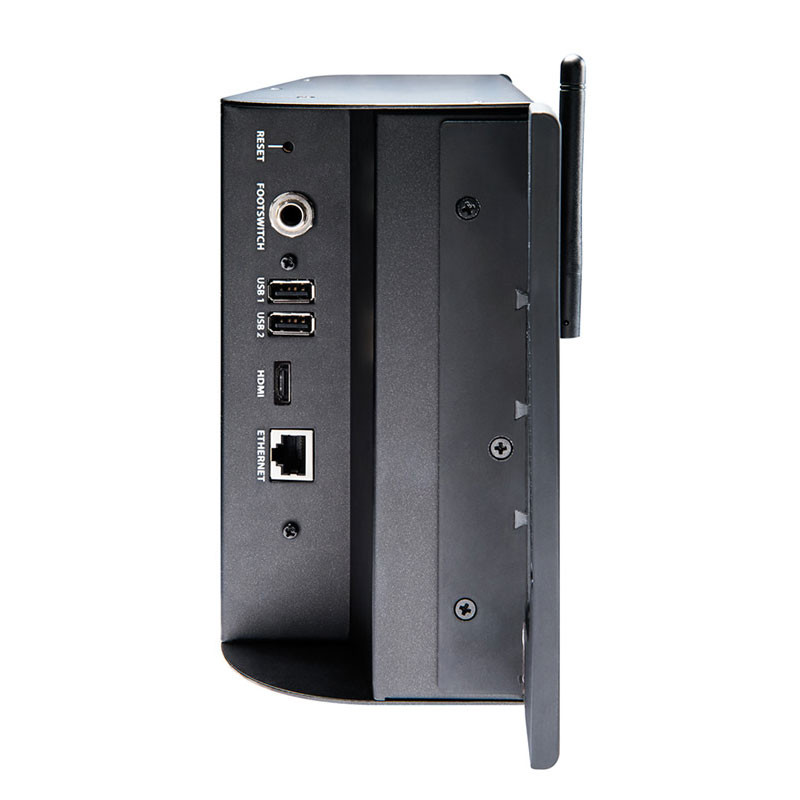

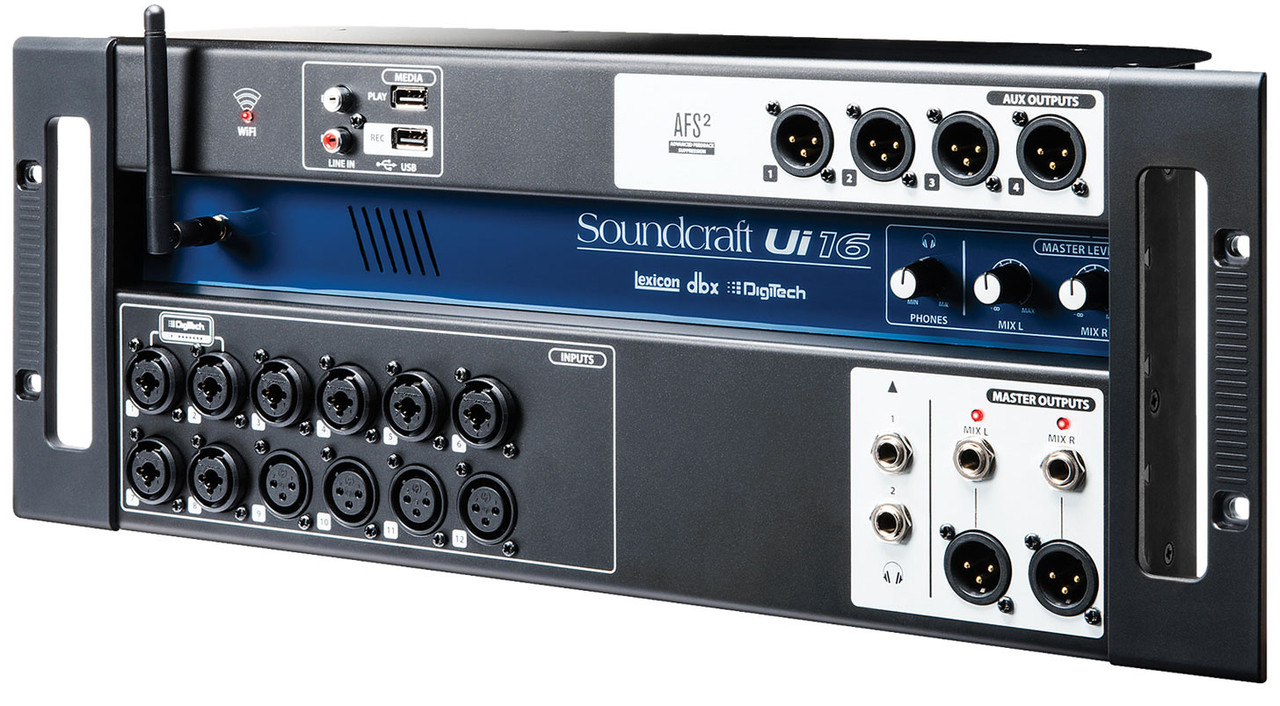

Soundcraft Ui16 Remote Controlled Digital Mixer

The Soundcraft Ui16 Remote Controlled Digital Mixer features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui16 each features built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.

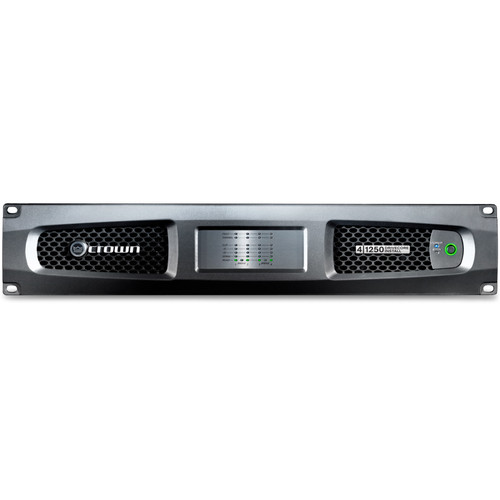

Crown DCi 4|1250 4-Channel Power Amplifier

The new DriveCore™ Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore™ technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

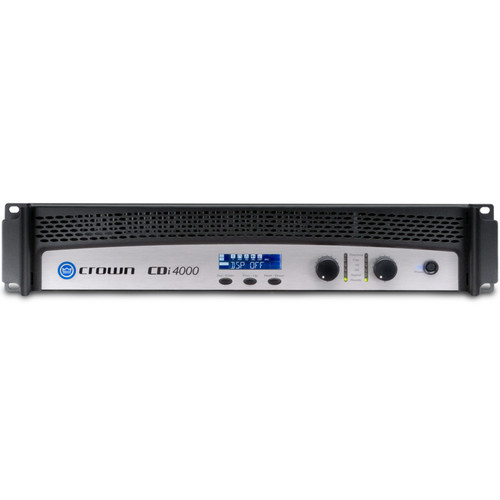

Crown CDi 4000 Power Amplifier

The CDi 4000 Power Amplifier features an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.

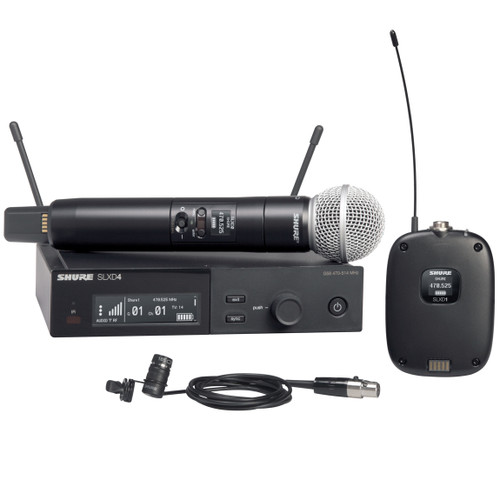

Shure SLXD124/85 Combo Wireless Handheld and Lavalier Microphone System

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With the Shure SLXD124/85 digital wireless handheld and lapel microphone system you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

DBX DriveRack VENU360 Complete Loudspeaker Management System

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx's proprietary AutoEQ™ and AFS™ algorithms, additional input channels, ethernet control via an Android,® iOS,® Mac,® or Windows® device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

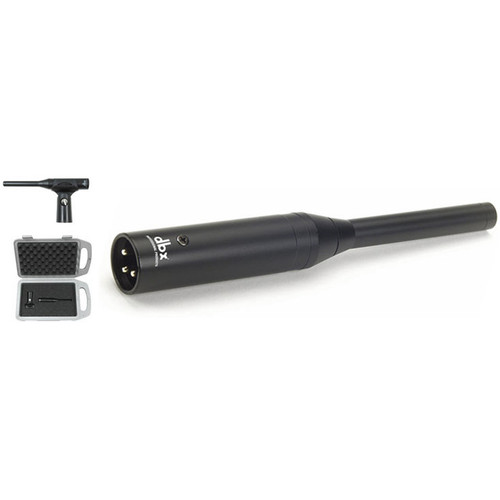

DBX RTA-M Reference Microphone

The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA2 and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments. The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz, ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case

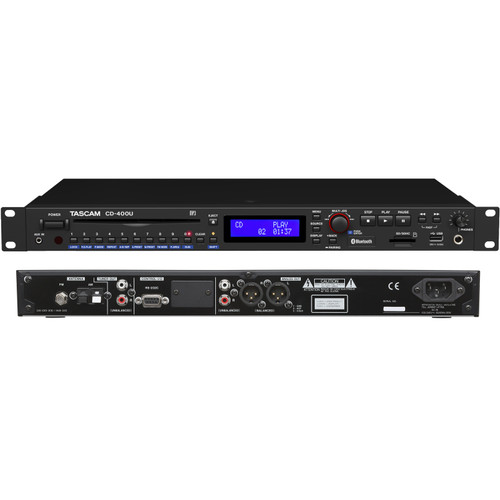

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth

Ideal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible.

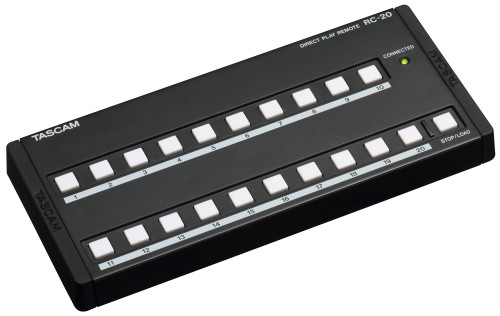

Tascam RC-20 Direct Play Remote

The RC-20 Direct Play Remote brings instant playback through flash start to the CD-500 or CD-500B – the only CD players available with flash start capability. A set of 20 pushbuttons on the remote play the first 20 tracks on a CD when plugged into the remote jack on the CD-500 or 500B. The simple-to-use remote includes space to label each track to help locate the target material. A Stop/Load button is also available for preloading tracks and stopping playback. All of this is housed in a remote under 9" wide and available at a price never before possible.

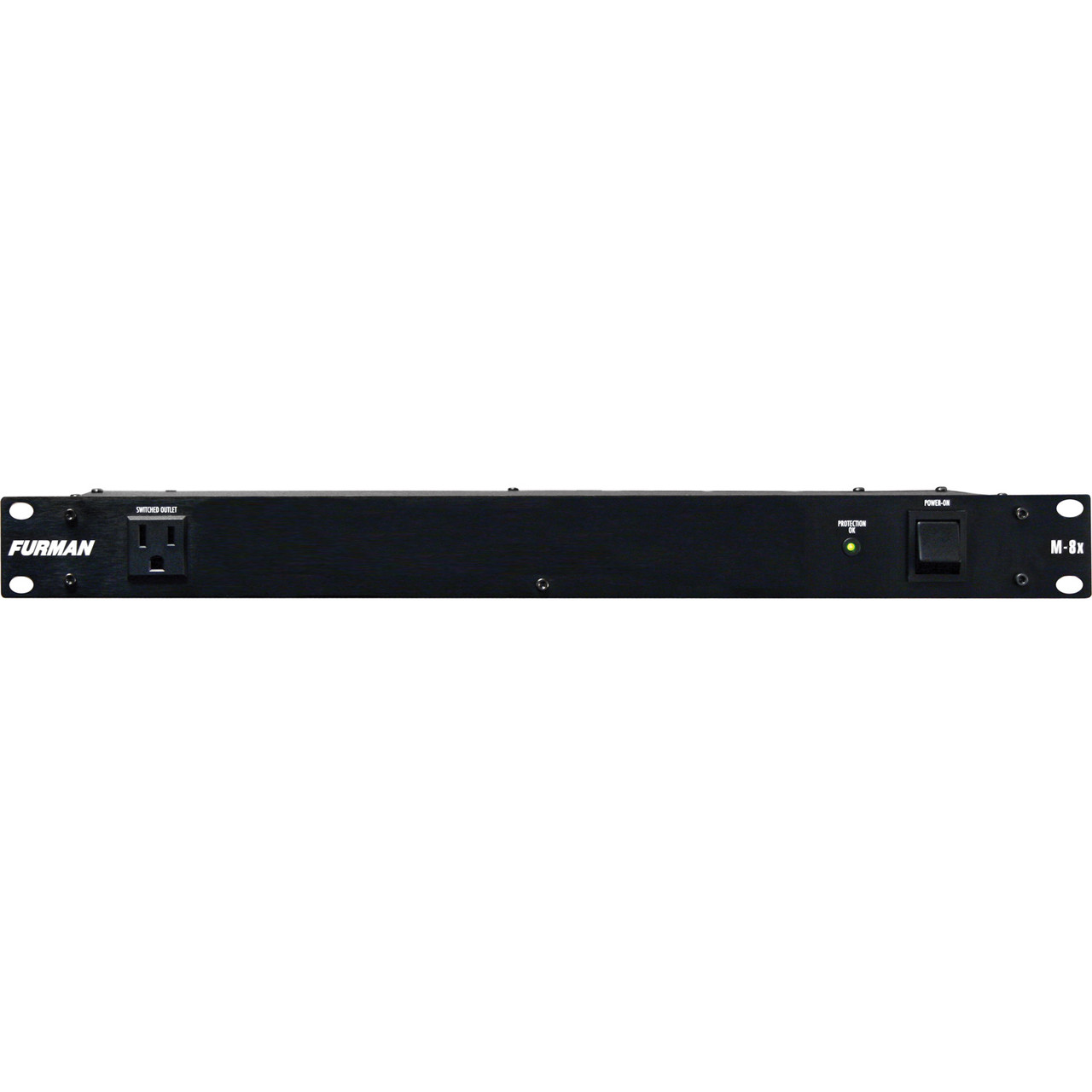

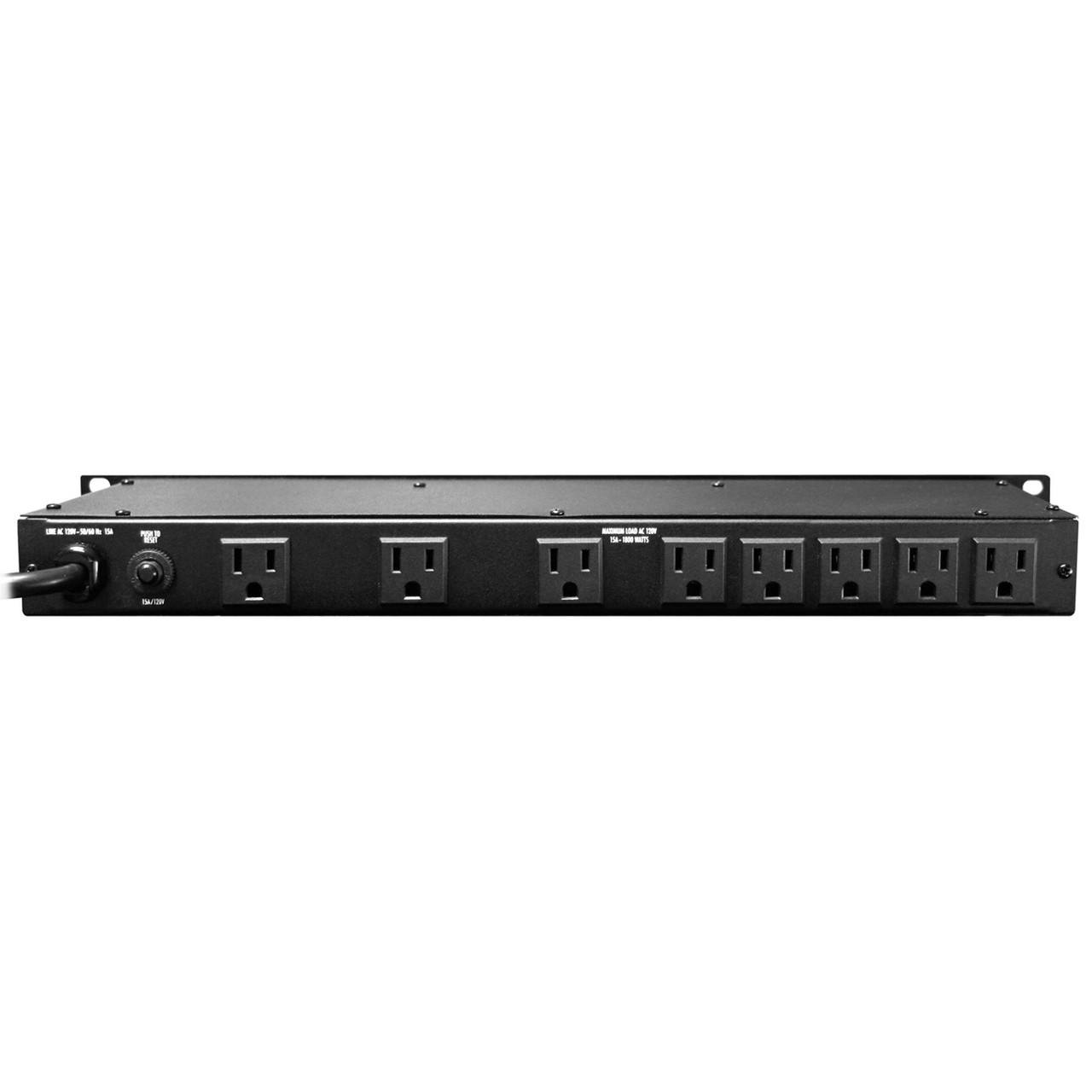

Furman M-8x2 Power Conditioner

A Merit Series Power Conditioner is the perfect low-cost AC power solution for any rack mount system. Install an M-8x2 into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. The M-8x2 is designed for applications where lights are not required.

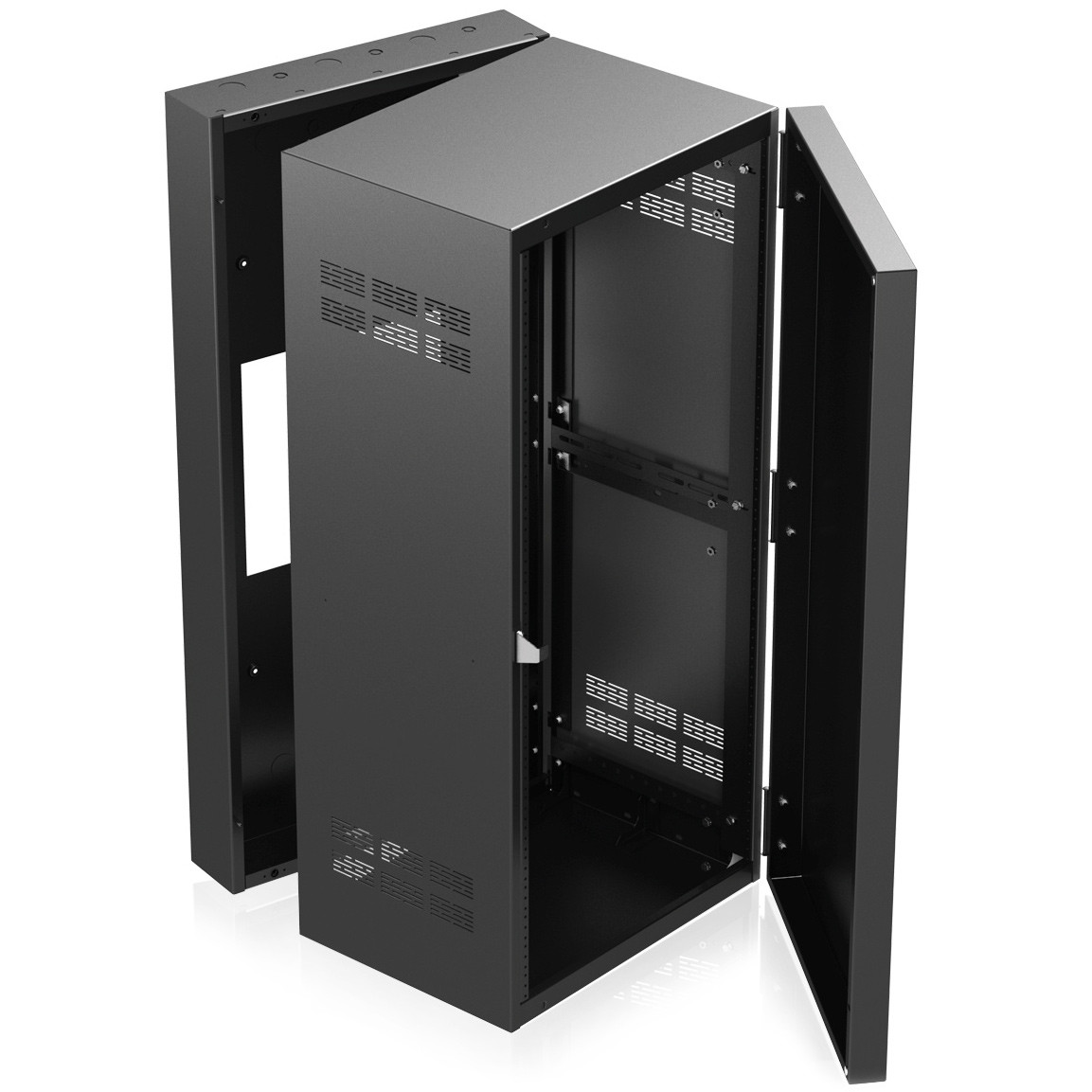

Atlas Sound 324-15 24RU Wide Opening Wall Cabinet

The Atlas Sound 324-15 24RU wide opening wall cabinet is welded with center-section depths of 15". It includes three, 16-gauge CRS sections which include a 2" deep, solid-steel front door, a 15" deep center section with adjustable mounting rails, and a 4 1⁄2" deep rear door. Enclosures are equipped with provisions for custom cabinet mounting, wire management, equipment mounting, and structural support. The wall cabinet features adjustable front rack rails tapped 10–32, and manufactured to standard E.I.A. 1⁄2" spacing.

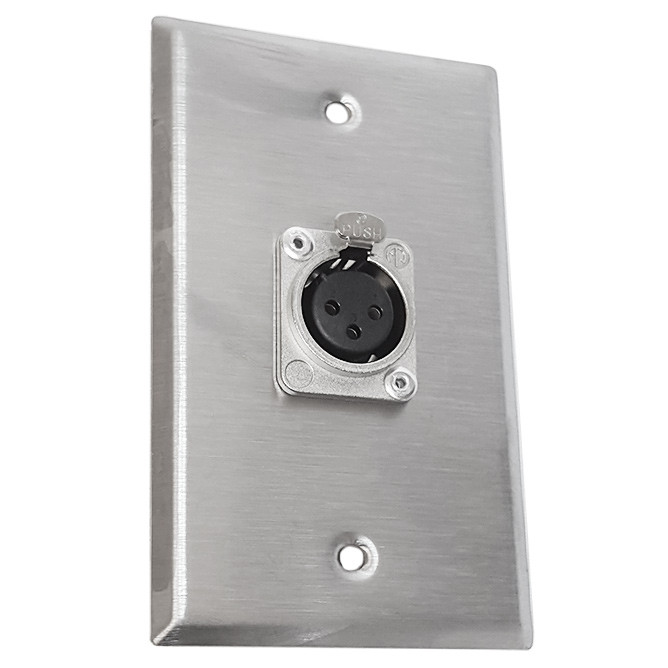

CBI WP1-1F XLR Wall Plate

The CBI WP1-1F is a Neutrik DL Series Female XLR 1 Gang wall plate.
