- Description
Details

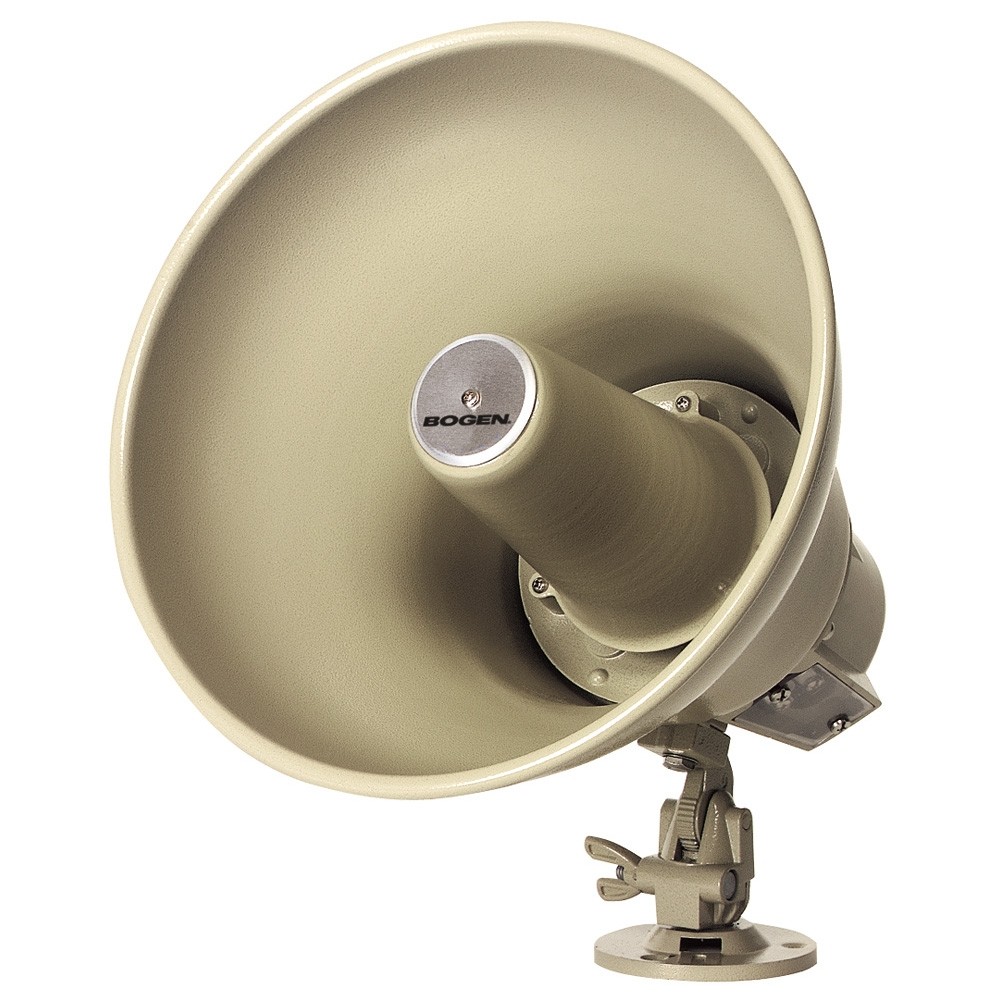

The 8 ohm Bogen SP308A is a compact, high intelligibility, reentrant type loudspeaker, designed for one-way or two-way sound and communication systems. This sturdy, weatherproof, all-metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.
- Features
Features
- High intelligibility and efficiency; ideal for both one-way and talk back applications
- Weatherproof, all-metal construction
- 30 watts; 8-ohm operation
- Tilt and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field replaceable diaphragm
- Textured mocha enamel finish
- Limited lifetime warranty
- Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
- Specification
Power Rating 30 watts continuous, 40 watts equalized Frequency Response 225 Hz to 14 kHz Impedance 8 ohms Sound Pressure Level 125 dB @ four feet on axis with 30-watt input @ 1000 Hz Dispersion 100º Sensitivity as Microphone -22 dBm [Ref: 10 dynes/cm2] Finish Textured mocha enamel Dimensions (Dia x D) 11" x 10.5" Product Weight 5 lbs (2.26 kg) - Reviews
