- Description
Details

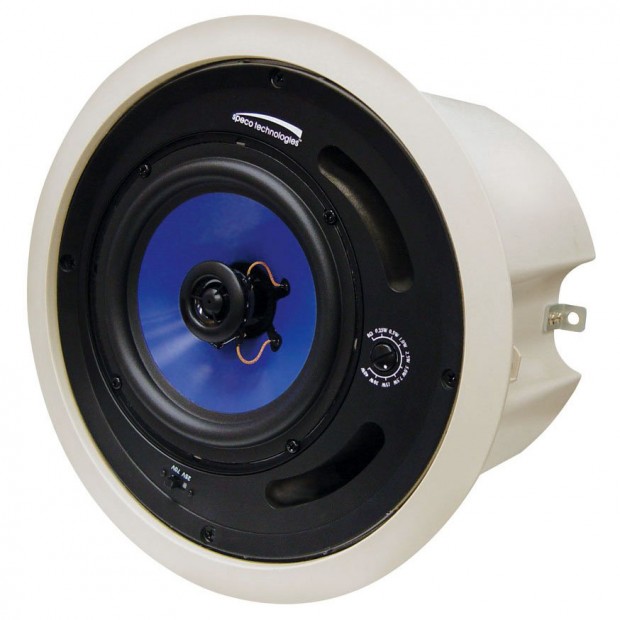

Speco Technologies’ Multi-Application Series was designed to make the contractor’s work as easy and time-efficient as possible.
Our all-in-one unit comes pre-assembled with back can and mounted transformer. It features a quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial. The choice of 8 or 9 individual wattage tap settings covers a complete range of uses. This flame-retardant ABS unit also comes with insulated wires, has an attached metal seismic safety loop and built-in easy mount tabs for securing the unit. The MA Series is the ideal, all-purpose value speaker covering a wide range of commercial applications.
The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs.- Features
Features
- Quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial
- 8 or 9 individual wattage tap settings
- Insulated wires, attached metal seismic safety loop and built-in easy mount tabs
- Furnished 8 Ohm tap selector for securing the unit
- Specification
RMS Power 40W Max. Power 80W Transformer Type 70/25V (selectable) Transformer Setting 40W, 30W, 15W, 7.5W, 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms Sensitivity 88dB (1W/1M) Maximum SPL (Pmax/1M) 92.3dB Impedance 8 Ohms, 70/25V Frequency Response Range 34Hz – 20kHz Low Frequency Driver 6.55" Polypropylene Low Frequency Magnet 10 oz. ferrite High Frequency Driver 1" Mylar tweeter Material Baffle: Fire-resistant
Backcan: Fire-resistant
Grille: MetalCut-Out Dimensions 9.88" (250.95 mm) Minimum Mounting Depth 7" (177.8 mm) Dimensions (Dia x D) 11.02” (279.91 mm) x 7.58” (192.5 mm) Weight 5.5 lbs (2.5 kg) - Documents
Documents
- Reviews
Write Your Own Review
