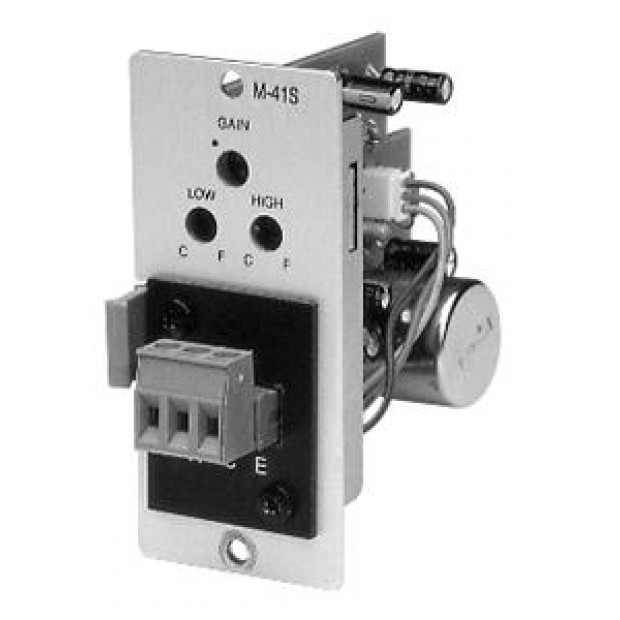

The M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier. The M-41S has a phantom power supply and a 600 balanced input. The module also has a voice-activated muting control output.- Features
Features
- Gain Control.
- High and Low Cut Filters.
- Mute Send Sensitivity.
- Phantom Power.
- Specification
Performance Input: 600 tb Gain (Adjustable): 32 ~ 52 dB Maximum Input: -14 dB Signal to Noise (S/N): -126 dBu (EIN 200 Ohm) Physical Connector: Removable Terminal Block Power Source 24 V DC Current Consumption Under 15 mA input Sensitivity (Rated output 100 mV) 0.2 - 5.0 mV (adjustable) Low Cut Filter (100 Hz) -5 to -15 dB High Cut Filter -7 to -13 dB Noise Output (20-20,000 Hz BPF) Under 50 V Distortion Under 0.2% Frequency Response 25 - 20,000 Hz Phantom Power Over 20 V Signal-Activated Muting 0.3 - 0.8 mV Input Connector 3P terminal block Output Connector 6P card edge-connector Dimensions (W x H x D) 1.37" x 3.07" x 3.46" Weight 0.17 lb (80 g) - Documents
