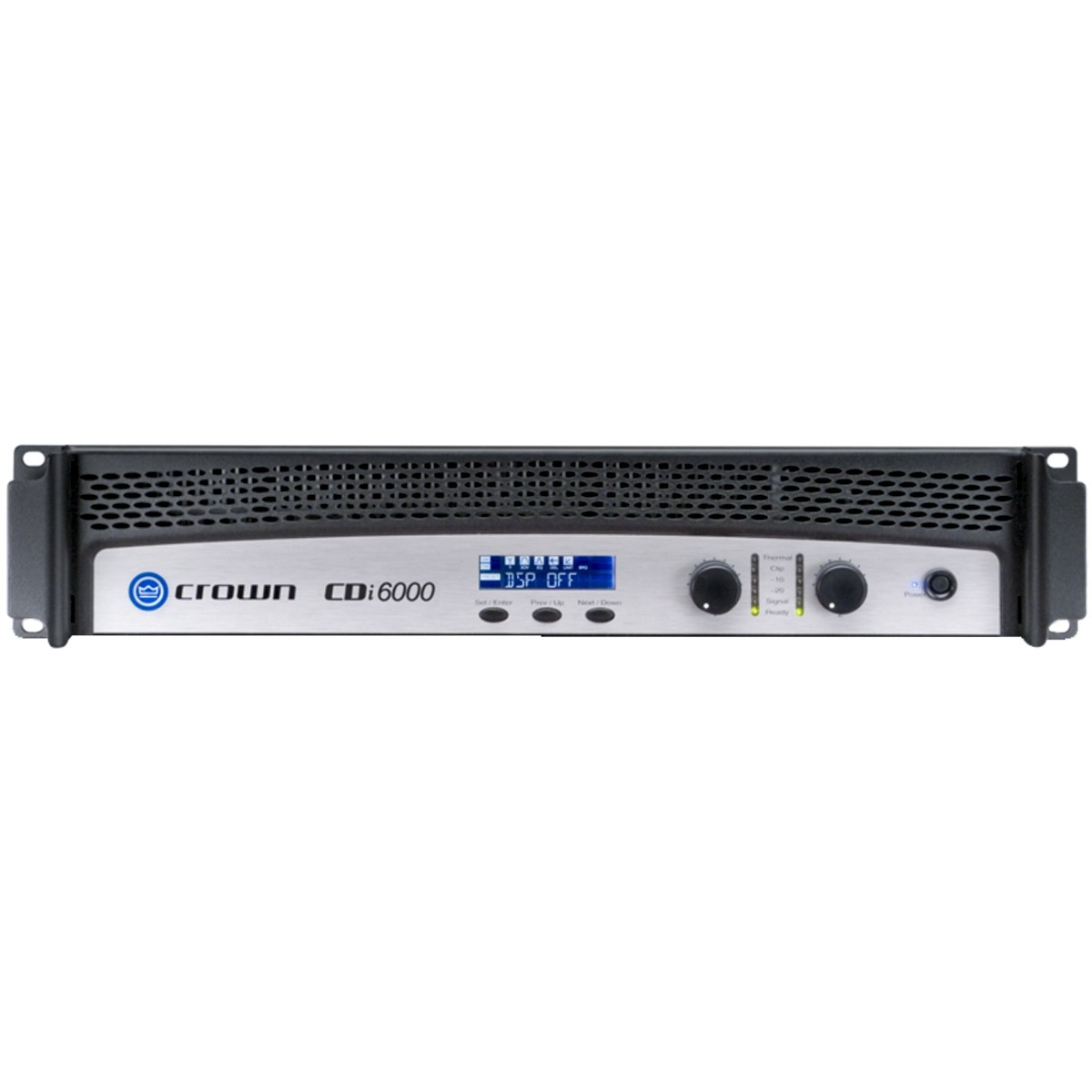

The CDi Series of Crown® amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000 and CDi 6000. All are rugged and lightweight and offer unmatched value in their class.
CDi-Series amplifiers feature an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/100V/140V loads, short-circuit protection and more.
- Features
Features
- Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
- Extremely versatile; rated for 2, 4, 8-ohm loads and 70V/100V and 140V outputs
- Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
- Intuitive front-panel LCD screen for quick, easy configuration
- Switch-mode universal power supply
- Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
- All products fill 2U rack spaces and weigh under 19 pounds
- Barrier strip outputs for low-Z or 70V/100V/ 140V loads, removable Phoenix-style inputs
- Specification
Power Matrix 2 ohm Dual (per channel) 3000W 4 ohm Dual (per channel) 2100W 8 ohm Dual (per channel) 1200W 70V Dual (per channel) 2500W 4 ohm Bridge-Mono 6000W 8 ohm Bridge-Mono 4200W 140V Bridge-Mono 5000W Performance Specifications Voltage Gain at 1kHz 37.1 dB Frequency Response +0/–1 dB from 20 Hz to20 kHz at 1 watt into 4 ohms Load Impedance (Stereo mode) Safe with all types of loads. Rated for 2 to 8 ohms Load Impedance (Bridge-Mono mode) 4 to 16 ohms Sensitivity (for full rated power at 8 ohms) 1.4V Signal to Noise Ratio (below rated 8-ohmpower at 1 kHz) 103 dB (A weighted) Damping Factor Better than 500 from 20 Hz to 400 Hz Crosstalk > 70 dB below rated power, 20 Hz to 1 kHz, A-weighted Input Stage Input is electronically balancedand employs precision 1% resistors Input Impedance (nominal) 20 k ohms, balanced;10 k ohms, unbalanced AC Line Voltage and Frequency Configurations Available 100V, 120V, 220-240V, 50/60 Hz AC Line Current
(120VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)15.3A; at idle draws no more than 180 watts Rear Panel Controls and Connectors AC Line Connector NEMA 6-10P (20A)IEC C20 (20A) Input Connector Two 3-pin removable Phoenix-type connectors each accept a balancedline-level input signal Output Connectors 4-position barrier stripwith connectors for dual louspeakers or bridgemonoloudspeaker HiQnet USB Connector Type B, connects to aHiQnet network HD-15 Connector For cinema I/O compatibilitywith CDi-8M System Monitor Construction Specifications Chassis Steel Cooling Proportional speed fan with front-to rear airflow Dimensions (H x W x D) 3.5" (88.9 mm) x 19" (482.6 mm) x 16.2" (411.5 mm) Weight 30 lbs (13.6 kg) - Documents
