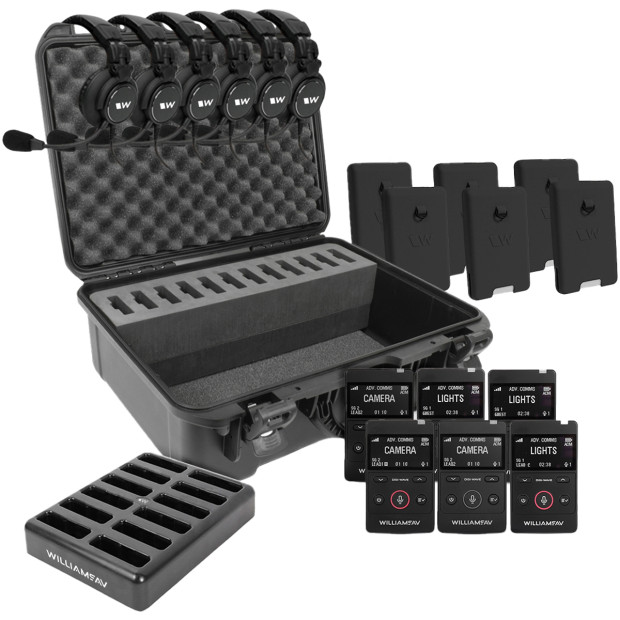

Williams AV DW SYS2ACM 6-Person Digi-Wave ACM Wireless Intercom System

The Digi-Wave ACM DW SYS2ACM is a professional 6-person wireless production intercom system designed for broadcast, theater, and live event environments. Delivering full duplex, two-way communication without the need for a base station, it provides unmatched mobility and flexibility for production teams. With its portable design and up to 16 hours of battery life, this system ensures reliable, all-day communication in fast-paced and demanding settings.

Built with advanced communication features, the system includes an All-Call function that allows designated users to instantly communicate with all team members, making it ideal for stage cues, announcements, and coordination. The flexible access point feature enables any unit to act as the system hub, maximizing coverage and eliminating single points of failure. Additionally, the system supports up to four subgroups, allowing teams such as lighting, audio, stage, and security to operate independently while maintaining seamless coordination.

Designed for efficiency and scalability, the Digi-Wave ACM system offers customizable subgroup naming, quick switching between groups, and a control function that allows administrators to configure settings offline without interrupting active communication. The complete kit includes six transceivers, six headset microphones, protective cases, and a 12-bay charging system, making it a comprehensive and ready-to-deploy solution for professional intercom applications.

Features

Features

6-person wireless production intercom system for professional use
Full duplex communication for simultaneous two-way audio
No base station required for fully portable operation
Flexible access point allows any unit to act as the system hub
All-Call function for instant communication with the entire team
Supports up to 4 subgroups for organized team communication
Custom subgroup naming for easy identification and management
Quick switching between subgroups for efficient coordination
Up to 16 hours of battery life for all-day operation
Control function enables offline system programming
Private line communication between designated units

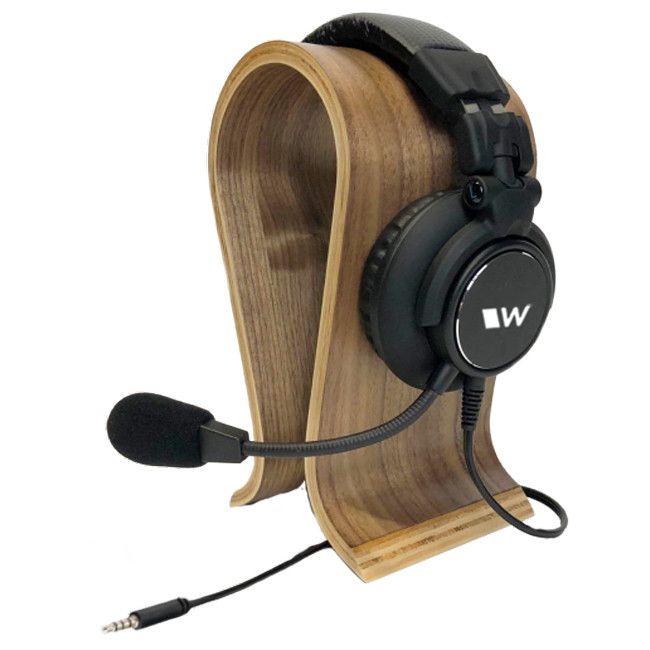

Includes 6 transceivers and 6 single-muff headset microphones
12-bay charger and carry case for easy storage and transport
Ideal for broadcast, theater, live events, and production teams

Specification

DLT 400-ACM
Frequency Range	2.4 GHz ISM Band (2402–2476 MHz, FHSS)
Operating Range	Up to 900 ft (274 m) depending on environment
Battery Type	1800 mAh Lithium Polymer rechargeable battery
Battery Life	Up to 16 hours talk time per charge
Audio Frequency Response	100 Hz - 7.2 kHz (intercom/Q&A modes), up to 11.5 kHz (other modes)
Signal-to-Noise Ratio	73 dB (A-weighted)
Total Harmonic Distortion	0.1% at 1 kHz
Encryption Security	87-bit/128-bit encryption with PIN protection
Headphone Output	3.5 mm TRRS jack, 25 mW into 32 ohms
Charging Interface	USB-C plus contact charging for CHG 412 system
Dimensions (H x W x D)	4.22" (107.3 mm) x 2.60" (66 mm) x 0.50" (12.6 mm)
Weight	0.21 lbs (0.1 kg)
CHG 412
Power Supply Input	TFP 066, 90-240 VAC input, 1.5 A max
Power Supply	Universal DC adapter, 5 VDC - 6A output, center positive
Output Rating	5 VDC, 0.5A per bay (12 charging bays)
Charging Time	~5 hours
Unit Capacity	12 Units
Compatible Units	Transceiver: DLT 400 Receiver: DLR 400 RCH
Indicators	Charge status indicators on DLT or DLR
Approvals	CE, FCC, WEEE, RoHS, CB
Enclosure	Black, ABS plastic with metal base
Dimensions (H x W x L)	1.5" (38.1 mm) x 7" (177.8 mm) x 9" (228.6 mm)
Weight	1.8 lbs (0.82 kg)
