Lowell 100LVC-D 100W 70V Decora Volume Control
The Lowell 100LVC-D volume control is a 100W autoformer attenuator (volume control) with 1.5 or 3dB steps for use with 100/70/25V speaker line. It includes a decora wall plate with a rotary switch. It has an optional priority relay for emergency bypass and is ETL Listed.

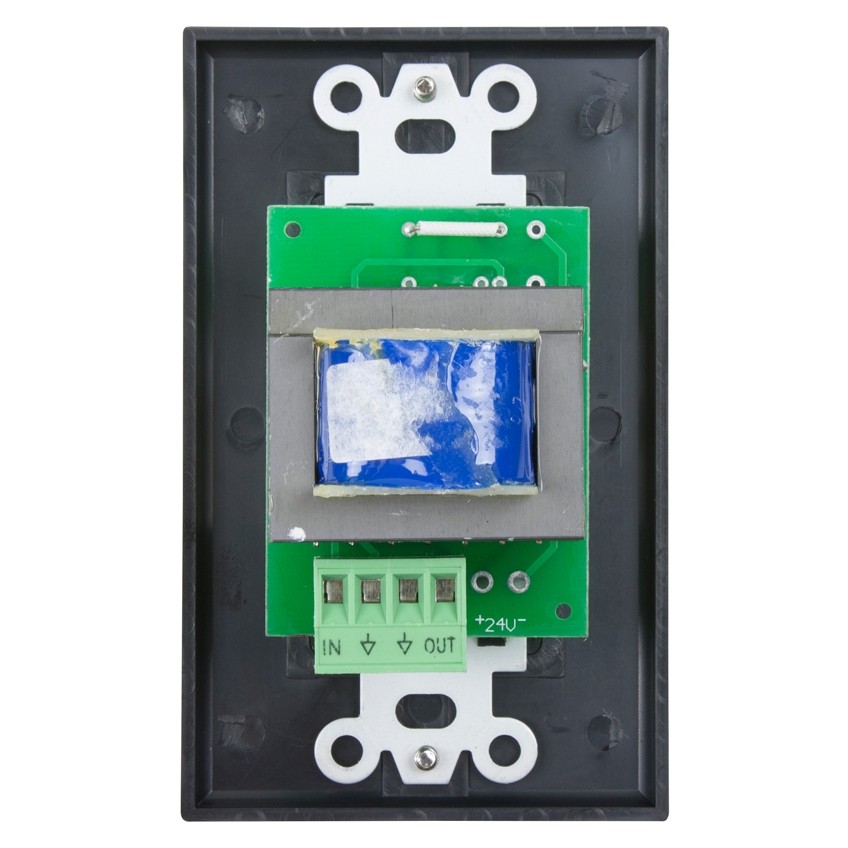

The Lowell 100LVC-D Volume Control provides high-quality level adjustment of single or multiple speaker lines. The Lowell 100LVC-D is a single gang unit that mounts in a minimum depth of 2.125". All units have phoenix-style removable screw termination strips for pre-wire with capacity for 14ga wire. It is 3db/step or 1.5db/step as noted. Models with priority relay (24VDC @ 5mA) allow emergency and paging signals to bypass (override) the attenuator.
- Features
Features
- Decora-style plate
- 3dB per step attenuation
- Rotary switch (10–Off). Stops at "Off" and "10" (noncontinuous rotation)
- Easy-connect, phoenix style plug-in screw termination strips for pre-wire convenience; wire capacity up to 14-gauge
- Standard or decorator style one-gang wall plate in various colors
- Fits standard single gang E.O. box with minimum depth of 2.125" (order separately)
- ETL Listed
- Specification
Type Auto-trans Power 100 Watts Switch Type Rotary Switch Position 10-off Attenuation Step / Total 3dB / 33dB Dimensions (H x W x D) 2.75" (69.85 mm) x 4.5" (114.3 mm) x 2.13" (53.98 mm) Weight 1 lbs (0.454 kg) - Documents
