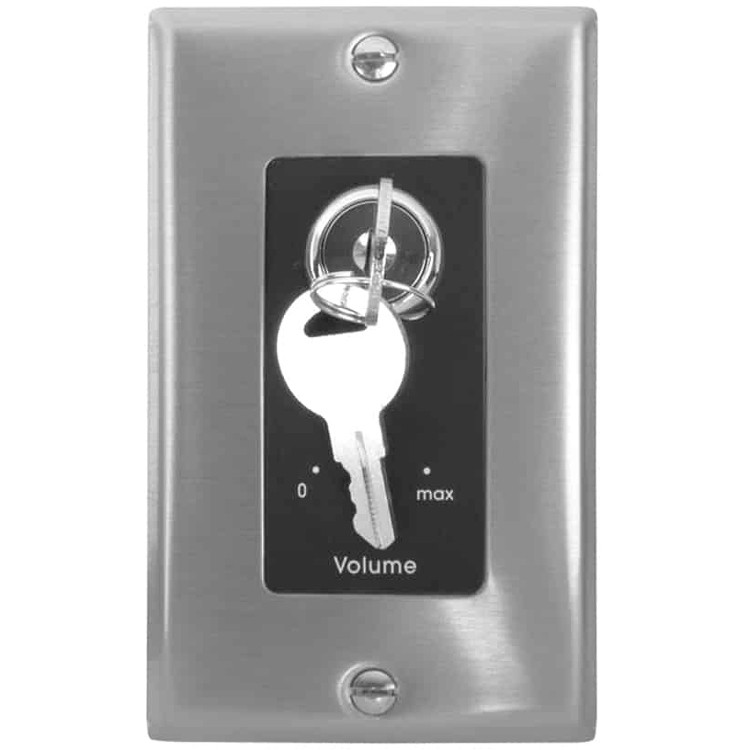

Lowell KL100-DSB Keylock Series 100W Volume Control with Key Switch
The Lowell KL100-D Keylock Series volume control is a 100W keylock autoformer attenuator (volume control) with 3dB steps for use with 100/70/25V speaker line. It includes wall plate with key switch. It also features an optional priority relay for emergency bypass and is ETL Listed.
Lowell's KL series volume controls feature a keylock instead of a knob to perform volume level adjustments. This patented Lowell design provides systems administrators with secured settings for volume level of critical paging and/or emergency systems. Additionally, these controls are advantageous for maintaining comfortable listening levels for music, paging, or masking in health clubs, entertainment and retail facilities, schools and offices of all kinds. The Decora®-style (two-piece) plates are available in plastic (white, ivory or black) or with a stainless steel coverplate and a plastic (white or black) subplate. They are compact, 1-gang Decora® style (two-piece) plate assemblies with a 100W power rating. They all include easy to connect, phoenix-style plug-in screw termination strips for pre-wire convenience with wire capacity up to 14gauge. Attenuation is 3dB per step.
- Features
Features
- Power Rating: 100W
- Attenuation: 3dB per step (33dB total)
- Use With: 25/70/100V speaker line
- Activation: Key
- Volume Positions: 0-10
- Two steps of 6dB each before off
- Termination: Phoenix-style
- Wire Capacity: 14-gauge
- Wall Plate: 1-gang decorator style
- Finish: Stainless Steel & Black
- Fits standard E.O. box (2.125 in. min. depth)
- Specification
Switch Type Keylock Switch Positions 10-off Attenuation 3 dB Plate Choice 1 gang Dimensions (H x W) 2.75" (69.85 mm) x 4.5" (114.3 mm) Weight 1 lbs (0.454 kg) - Documents
