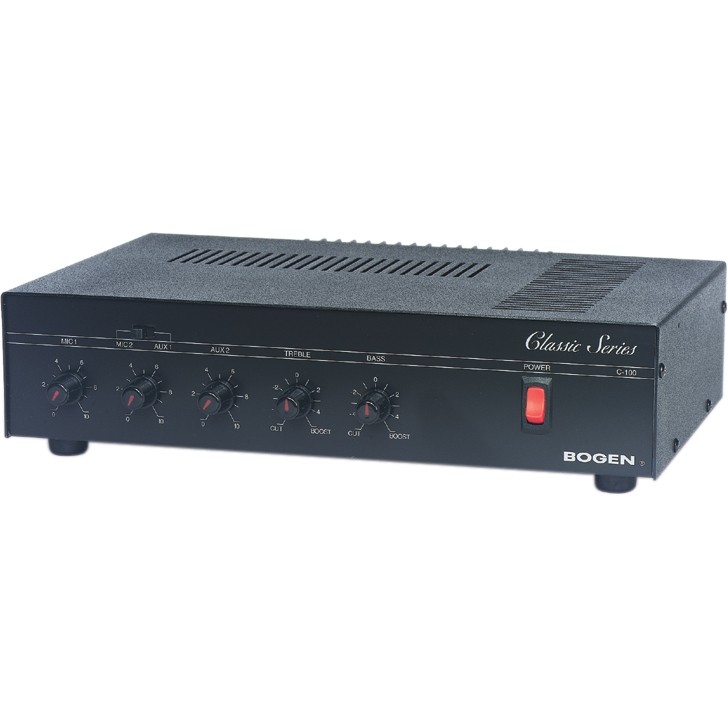

Bogen Communications C100 Classic Series Public Address Amplifiers

The Bogen Communications C100 is a public address mixer amplifier that provides the mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm, 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.

• 4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
• Each input controlled by an independent volume control
• Treble and bass controls
• AUX muting by external contact closure for push-to-talk microphones
• TEL input for telephone paging applications
• TEL input voice-activated (VOX) mute over AUX input
• Variable threshold for TEL input voice-activated AUX mute
• Outputs for 4-ohm (direct), 16-ohm, 25V, and 70V speaker systems (transformer-coupled)
• Output jack to connect a recording device or booster amplifier
• Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
• Thermal protection and electronic shutdown
• Rack-mountable with accessory mounting kit (model RPK50)
• Listed to UL Standard 60065 for U.S. and Canada
