- Description
Details

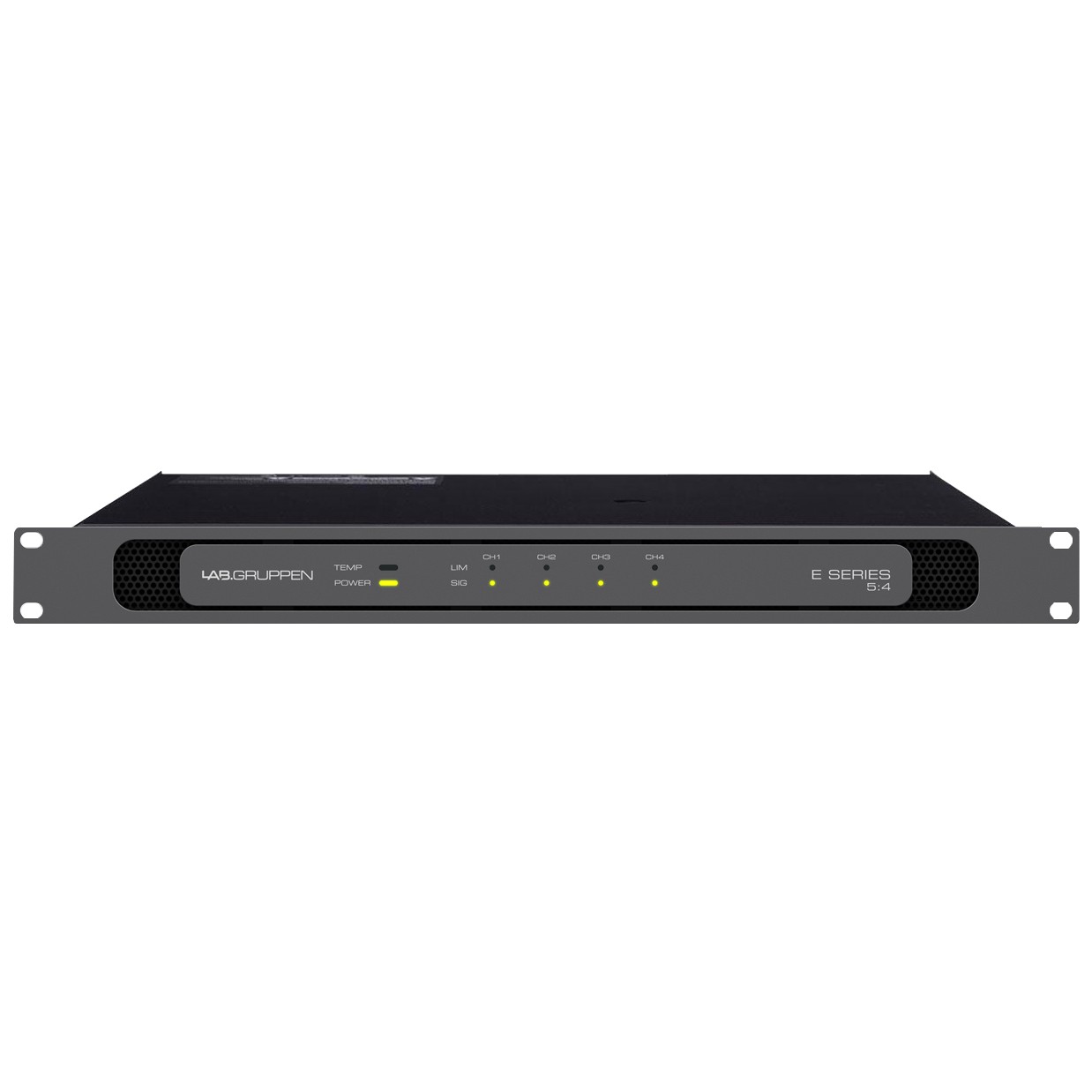

Building on Lab.gruppen’s touring reputation for sonic excellence and rock-solid durability, E Series brings a competitive edge to the installation market by adding ultra-compact size, high operating efficiency, output configuration flexibility, and an unprecedented cost-benefit ratio.
At the heart of E Series is Lab.gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology. Based around a patented Class D variant output stage, IDEEA produces high power levels with very low distortion while drawing minimal mains current.
Lab.gruppen’s proprietary Rail Sensing Limiter (RSL™), also exclusive to E Series, greatly reduces signal clipping to ensure high quality audio output at all times. User configurable for Hi-Z (70 V) or Lo-Z, RSL senses rail voltages and optimizes each output for instantaneous load conditions. RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency. Total available output power can be allocated among the channels as required by the application. This makes it possible, for example, to drive a small sub on one channel, a number of 70 V ceiling loudspeakers on the second channel, and a pair of full-range low impedance loudspeakers on the two remaining channels.
Lab.gruppen’s IDEEA architecture secures full Energy Star compliance by combining net operating efficiency of greater than 80% with an auto-power-down feature. After 20 minutes with no input signal, the amplifier automatically switches to standby mode – with consumption of less than 1 W – and switches back on when an input signal returns. GPIO facilities enable third-party systems to remotely control and monitor power state via contact closure.
- Features
Features
- High power density – 4 x 125W in 1U
- Certified Energy Star compliant
- Flexible – IntelliDrive delivers similar power per channel at 70 V or Low-Z (4, 8 and 16 ohms)
- Asymmetric loading – Allows “mixing and matching” of loads with different impedances to maximize both overall system efficiency and inventory utilization
- IDEEA™ output stage based on patented Class D variant
- Exceptionally low lifetime operating costs
- High efficiency – Extremely low power consumption and heat output
- Auto-standby function – Power consumption < 1 W in standby mode
- RSL switch – Innovative circuit senses rail voltage and optimizes output for instantaneous load conditions
- Efficient cooling – Dual temperature-controlled fan
- Comprehensive circuit protection and fault indication
- Specification
Number of channels 4 Total output all channels driven 500 W Peak output voltage per channel 100 V / 70 Vrms Max. output current per channel 9.9 Arms 4 ohms (Lo-Z mode) 125 W 8 ohms (70 V mode) 125 W 16 ohms (70 V mode) 125 W 70 V (70 V mode) 125 W 100 V Can deliver 125 W to a 100 V load tapped at 250 W THD 20 Hz - 20 kHz for 1 W <0.1% THD at 1 kHz and 1 dB below clipping <0.05% Signal To Noise Ratio >112 dBA Channel separation (Crosstalk) at 1 kHz >70 dB Frequency response 2 Hz - 40 kHz Input impedance 20 kOhm Common Mode Rejection (CMR) 50 dB Output impedance 25 mOhm Limit and gain switch (per channel) 2 pos: Lo-Z and 70 V VPL for 70 V mode 100 V VPL for Lo-Z mode 44.7 V Sensitivity for 70 V out in 70 V mode 4 dBu Sensitivity for 70.7 V out in 70 V mode 4 dBu Sensitivity for stated power into 4 Ohm in Lo-Z mode 1 dBu Sensitivity for stated power into 16 Ohm in 70 V mode 0 dBu Gain in 70 V mode 35.2 dBu Gain in Lo-Z mode 31.2 dB Level adjustment (per channel) Rear p anel p otentiometer, d etented f rom - inf to 0 d B Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced Output connectors (per ch.) 2-pin detachable screw terminals High pass filter Fixed at 50 Hz, switchable per channel Power control Can be used to go between standby and ON GPI (power control input) Contact closure type, 2-pin detachable screw terminal, controls the power state GPO (power state output) Contact closure type, 2-pin detachable screw terminal, for external monitoring of the power state Cooling Two fans, front-rear airflow, temperature controlled speed Nominal voltage 100 - 240 VAC Operating voltage 85 - 265 VAC Standby consumption <1 W Finish Dark grey aluminium front and black steel chassis Dimensions 1.75" (44 mm) x 19" (483 mm) x 10.9" (276 mm) Weight 13.2 lbs (6 kg) - Documents
Documents
