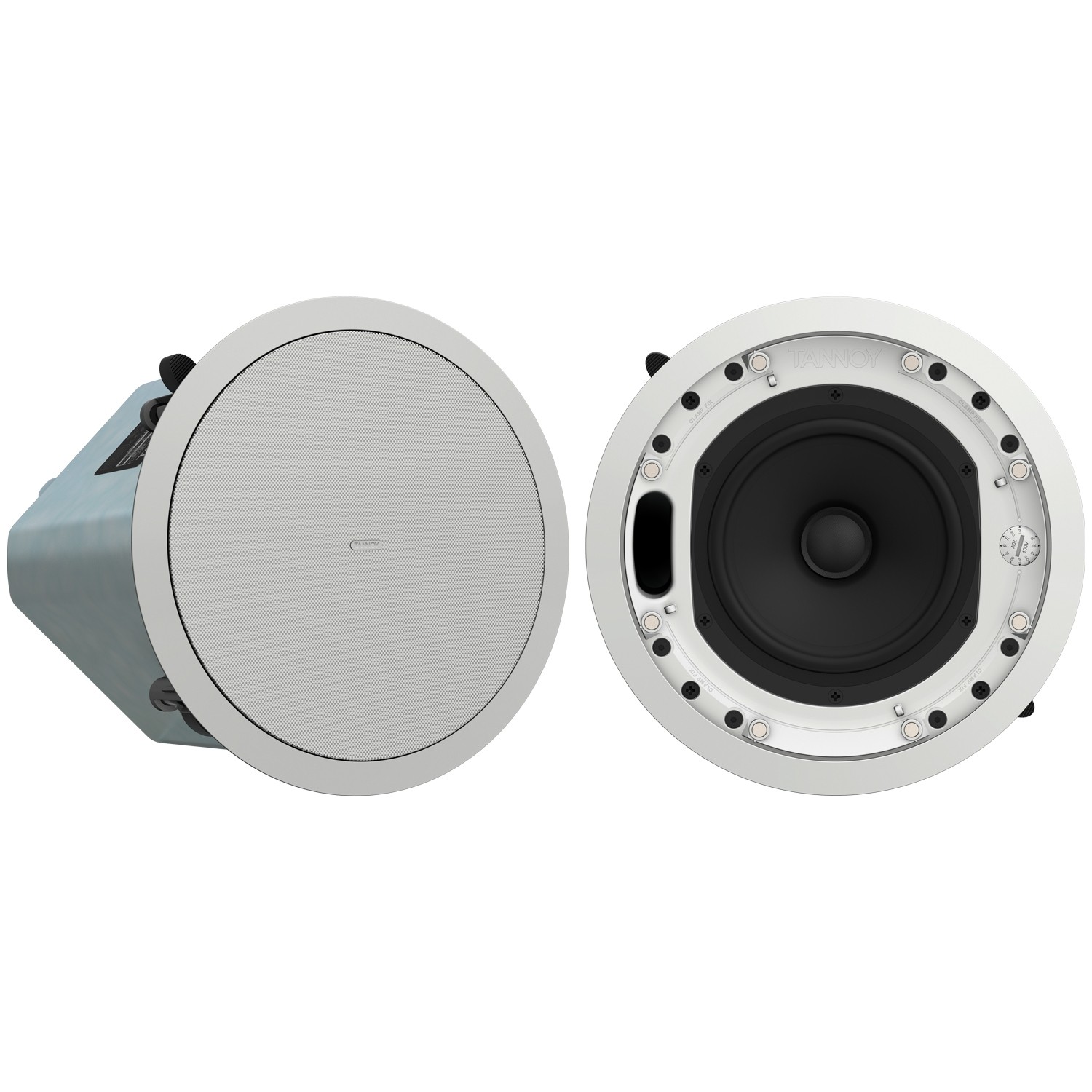

Tannoy CMS 603ICT LS 6" 70V Full Range Ceiling Loudspeaker with ICT Driver - Pair

The Tannoy CMS 603ICT LS is a wide bandwidth, high power-handling and high sensitivity loudspeaker (certified UL-1480, category UUMW), for use with non-DC supervised systems. Built around CMS 3.0 – the third generation of Tannoy's revolutionary Ceiling Monitor System technology it incorporates a newly refined version of Tannoy's proprietary ICT™ point-source driver. The CMS 603ICT LS has been re-engineered for optimum compatibility with Lab.gruppen commercial amplifiers while also delivering consistent broadband directivity, precise articulation for voice and music, and exceptional long-term reliability.

The point source configuration of the Tannoy ICT driver's mid-bass and tweeter sections ensures a wide and controlled dispersion for optimum coverage, avoiding significant energy losses in the vertical plane at the crossover frequency, a flaw inherent in typical two-way designs. The ICT (Inductive Coupling Technology) drive unit also addresses two common component failures in background music systems: the tweeter and the crossover. Use of wireless electromagnetic coupling to drive the tweeter means that no crossover is required, making the ICT drive unit exceptionally reliable and ideal for applications where constant heavy usage is the norm. The mineral-loaded polypropylene cone material and nitrile rubber surround further enhance durability and long-term reliability.

The CMS 603ICT LS utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). The low-insertion loss 60W transformer features convenient front bezel switching for taps at 60W, 30W and 15W, with an additional 7.5 W tap for traditional constant voltage systems.

The CMS 603ICT LS also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents inadvertent over-screwing. Magnetic grille attachment enables easy removal and fitting for custom painting and tapping changes with grilles now available as either traditional style (inset in bezel) or new Arco™ style, which conceals the entire unit for architect-friendly aesthetic appeal.

The CMS 603ICT LS is supplied with an integral zinc plated steel back-can, ready to install as a single unit and feature an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and loop-thru facility. Strain relief is provided by a clamping mechanism for use with plenum-rated cable or conduit, while new spring-loaded and self-aligning clamps make for even quicker and easier installation. All models are supplied with classic grille, two tile support rails and one C-ring; Arco grille and plaster (mud) ring are available as optional accessories.

• Full range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power
• 6" ICT (Inductive Coupling Technology) point source driver for an extended frequency range
• Blind Mount version supplied with acoustically enhanced zinc plated steel back can
• Integrated single unit construction for ease of installation
• High durability design for constant heavy usage in demanding applications
• UL 1480 UUMW certified for life safety applications
• UL 2043 certified for air-handling spaces
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
• Semi-matte white finish fits unobtrusively in any environment
• Powder coated UV resistant perforated steel mesh grille with dust protection
• Removable magnetic grille for custom painting
• Optional ARCO designer grilles available for minimal architectural impact
• Self-aligning 4 way clamp mounting system
• Mounting C-ring and ceiling tile rails included
• 10-Year Warranty Program
• Designed and engineered in the U.K.
