- Description
Details

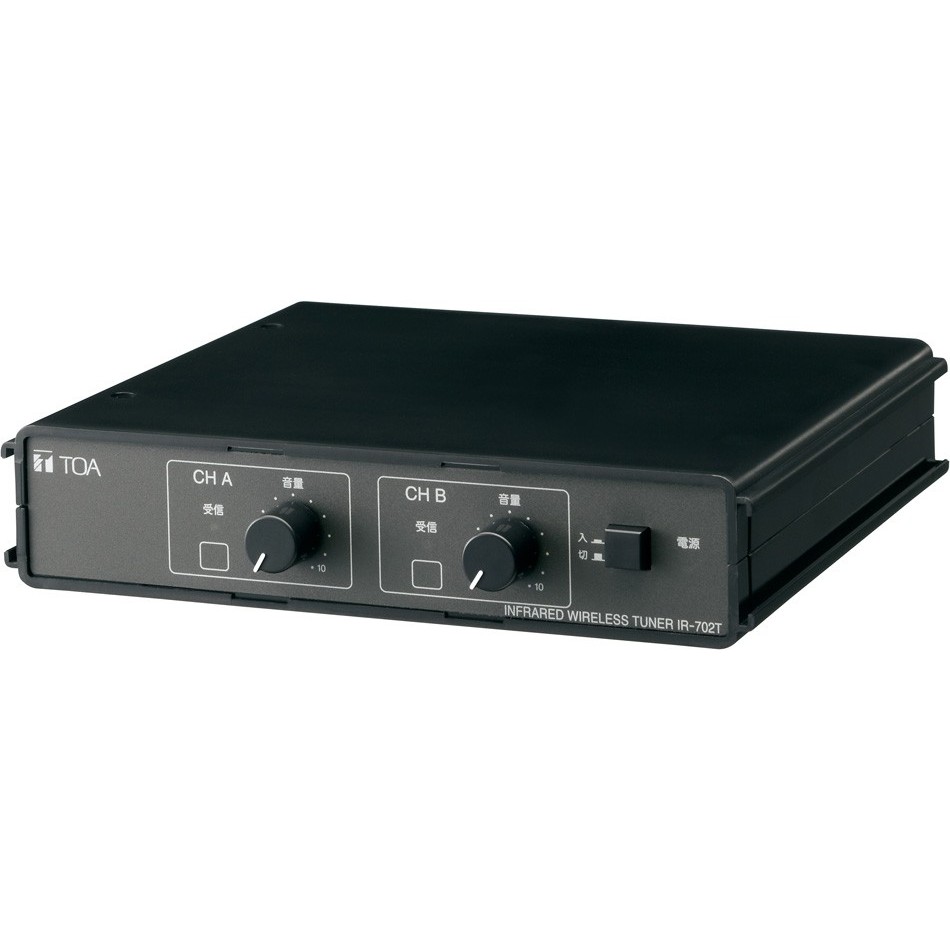

The IR-702T is a 2-channel infrared wireless tuner employing a fixed frequency system. This tuner is combined with an infrared wireless microphone and an infrared wireless receiver to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms.- Features
Features
- Comes with a built-in 2-channel fixed-frequency tuner.
- Enables installation of up to 4 infrared light receivers per unit.
- Equipped with signal reception light and knob for microphone volume control.
- Two line outputs, one with a MIX output switch allowing output of mixed voices from channels A and B.
- Rack-mountable with optional brackets (MB-WT3/MB-WT4).
- Specification
Power Source AC mains 50/60Hz (supplied from the accessory AC adaptor) Power Consumption 15W or less Receiving Frequency Channel A: 3.100MHz/Channel B: 3.350MHz Receiver Sensitivity S/N ratio over 50dB (40dB μ V input, 1 kHz modulation,±4.8 kHz deviation) S/N Ratio 61 dB or more (60dB μ V input, ± 4.8 kHz deviation, A-weighted) Tone Squelch Frequency 32.768kHz Infrared Receiver Input 75Ω, BNC jack x 2 (IR receiver'spower source: 24V DC, max. 220mA in total of 2 terminals) Output Channel A and B: –10 dB*1 (±4.8 kHz deviation, at volume level max.), 600 Ω, 3 pole phone jack Frequency Response 100Hz – 12kHz Operating Temperature 14° F to 122° F Operating Humidity 30% to 85% RH Finish Case: ABS resin, black Dimensions 8.3” (W) x 1.7” (H) x 8.3” (D) Weight 2.9 lbs (unit only) - Reviews
