Community IV6-118S 18" Modular Line Array Subwoofer

I SERIES Modular Vertical Array 600 is a scalable, adaptive sound reinforcement system featuring multiple vertically arrayable elements designed to be used in combination or separately, and with or without splay between elements, providing an extensive range of vertical coverage angle and throw distance configurations.

The IV6-118S is a high power 1 x 18" compact, direct-radiating subwoofer designed to complement the full range IV6-1122 elements in any array configuration with deep, impactful low-frequency support. Large, balanced ports provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s size. With 800W @ 8 Ohms of continuous power handling (80V), the IV6-118S subwoofer can be conveniently driven by the same size power amplifier as the IV6-1122 full-range array elements.

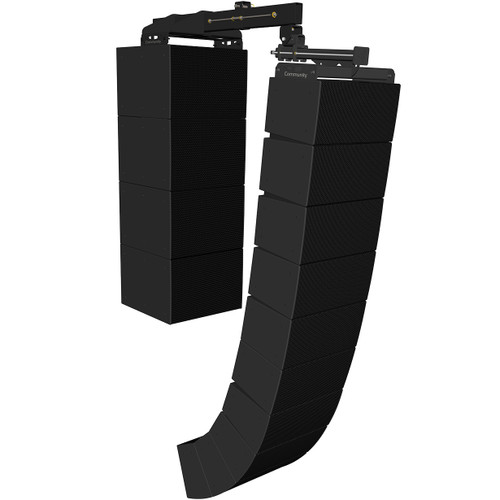

The subwoofer can be ground-stacked or suspended at the top of, or behind, a flown array. Cardioid subwoofer tunings are easily deployed using the IV6-SB-AF (Sub Behind Array Frame) and can be integrated into a single full-range array or flown separately. The IV6-118S is fully compatible with all of the available accessory array frames in the series, presenting virtually limitless options for integration in any application
