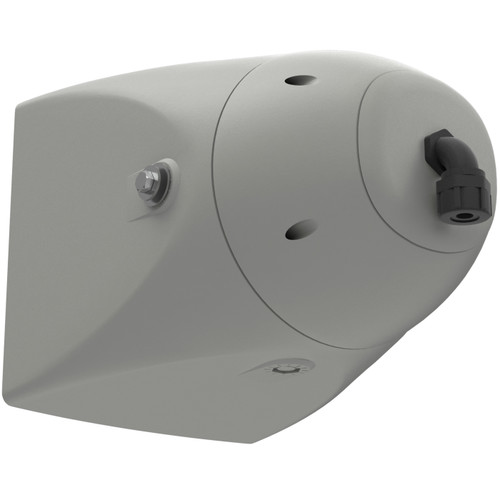

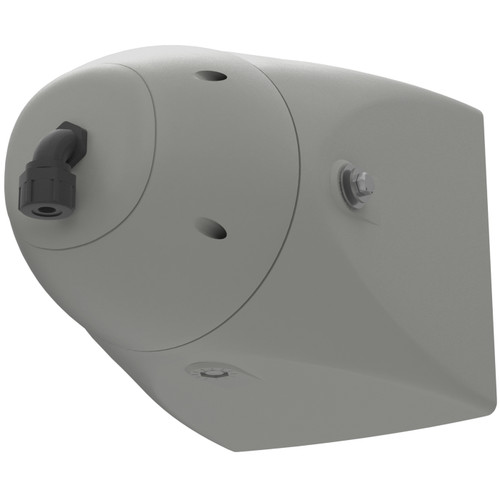

The R.15-3696 is a full-range, three-way triaxial loudspeaker that delivers excellent voice intelligibility and quality music playback, similar to the best-selling R.35-3896 loudspeaker, but in a more compact housing ideal for large installations where cost is a primary consideration.
The R.15-3696 is a fully horn-loaded triaxial three-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance.
It is designed to withstand long-term exposure to tough, environmental conditions and to provide musical performance normally only associated with indoor loudspeakers. The R.15-3696 features Biamp's innovative MultiSource Waveguide™ horn design; the output from the dual midrange compression drivers and 1-inch exit HF driver are combined seamlessly into a single time-coherent source, resulting in excellent musicality, intelligibility and dispersion consistency. The high efficiency 6.5-inch LF provides high sensitivity and full LF extension into the male voice speech range. The low LF/MR passive crossover point results in improved mid-range pattern control and elimination of horn coloration in the LF response.

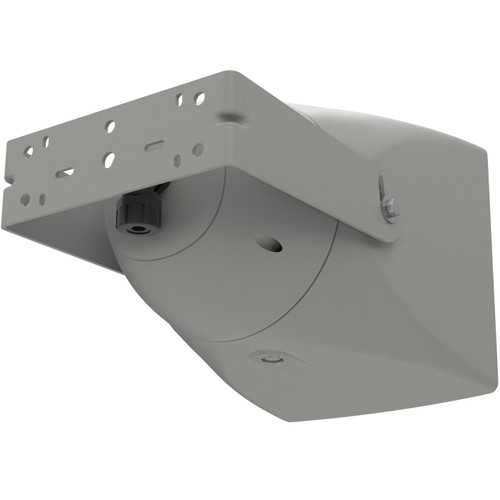

The R.15-3696 is built using components engineered for the harshest environments, including heavily plated and powder coated internal components, conformal coated crossover components, water-resistant driver, and IP54 ingress protection for the grille. The steel bracket is heavily zinc-plated and powder coated and attached using stainless steel and brass hardware.
The R.15-3696 carries a 5-year product warranty and a 15-year enclosure warranty.
| Transducers | LF: (1) 6.5" (165 mm) Woofer with hydrophobic treatment MR: (2) x 2.35" (60 mm) MultiSource Waveguide™ compression drivers HF: (1) x 1" (25 mm) exit polymer diaphragm compression driver |
|---|---|
| Nominal Beamwidth (H x V) | 100° x 80° |
| Operating Range | 140 Hz to 19.5 kHz |
| Autoformer | Taps: 70V: 100W, 50W, 25W, 12.5W 100V: 100W, 50W, 25W |
| Operating Environment | Indoor or Weather-Resistant Outdoor |
| Environmental Ratings | IP54 per IEC 529, IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist) IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) IEC 60068-2-1 (Cold operational) |
| Finish | Gray matte, paintable high-impact ABS |
| Mounting | Four (4) M8 rigging points |
| Optional Accessories | PMB-1RR and PMB-2RR (Pole Mount Bracket Kits) |
| Dimensions (H x W x D) | 9.25" (235 mm) x 9.25" (235 mm) x 14" (356 mm) |
| Weight (Speaker Only) | 12.6 lbs (5.7 kg) |
| Weight (Speaker + Bracket) | 15.2 lbs (6.9 kg) |
