JBL Live Sound System with PRX ONE All-in-One Powered Speaker with Bluetooth, Microphone and Speaker Transporter

Inside the Design

This portable live sound package features the JBL PRX ONE all-in-one powered column PA speaker with a built-in mixer and DSP for powerful, high-quality audio and versatile sound control. It includes a JBL Transporter for easy and secure transportation of the PRX ONE speaker. For vocals, the package comes with a Pure Resonance Audio UC1S ultra-clear dynamic vocal microphone with an on/off switch, paired with an On-Stage Stands MS7701B Euro Boom microphone stand for stable and adjustable mic placement. Additionally, the package includes a 25ft Pure Resonance Audio XLR cable for flexible and reliable connections. Ideal for solo performers, public speakers, and small events, this portable and easy-to-set-up JBL live sound system delivers exceptional audio quality and versatile functionality.

Sound System Features:

• Powerful JBL PRX ONE speaker provides exceptional clarity and high output
• Integrated mixer and DSP for versatile sound control
• Bluetooth connectivity for wireless streaming
• Convenient JBL Transporter for easy portability
• Ultra-clear vocal performance with the Pure Resonance Audio UC1S microphone
• Stable and adjustable On-Stage Stands MS7701B microphone stand
• Pure Resonance Audio XLR cable ensures flexible and secure connections
• Versatile setup suitable for various venues and events
• Seamless integration with other audio equipment for optimal performance
• Reliable and durable components designed for long-lasting use



About the System Components

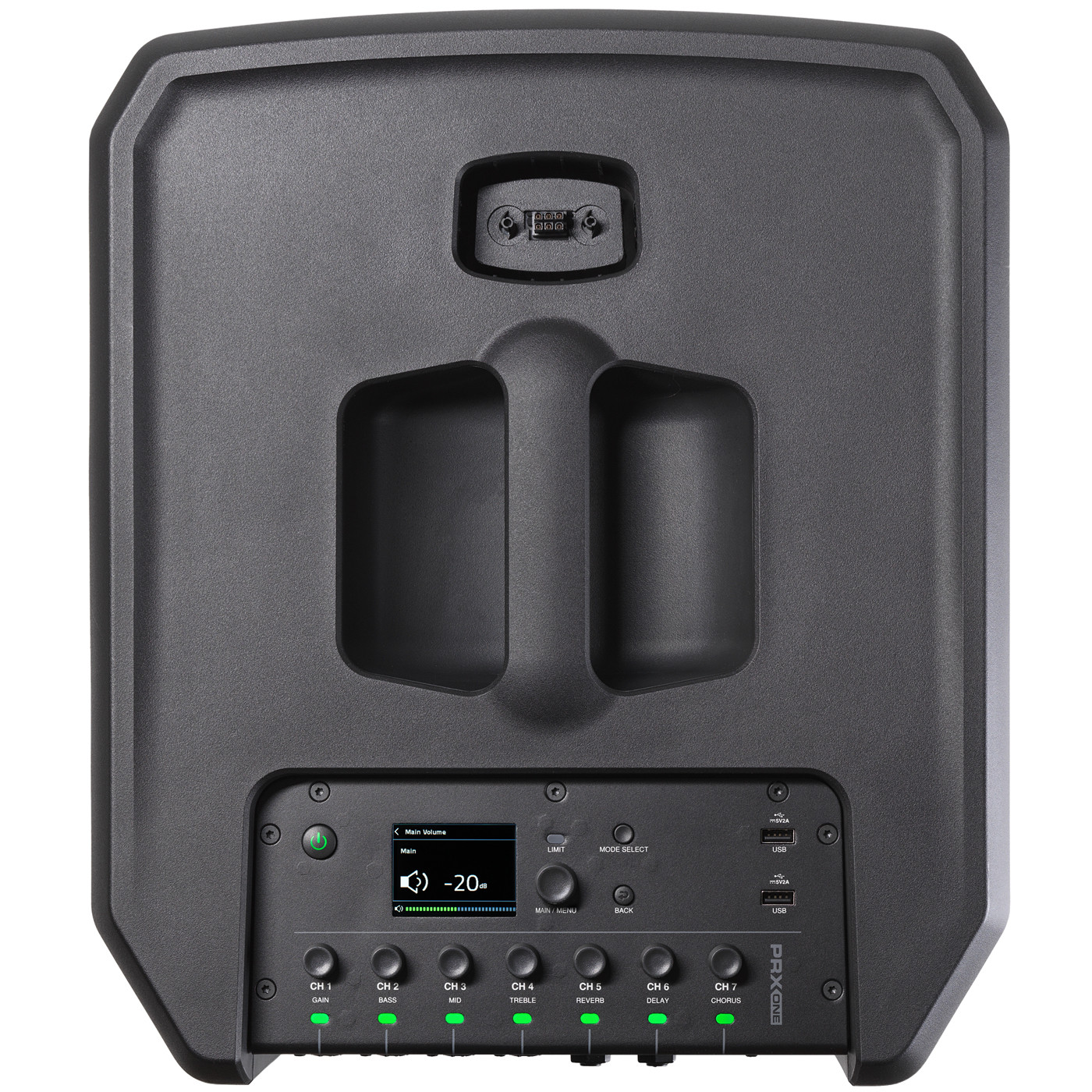

JBL PRX ONE All-in-One Powered Column PA Speaker

The JBL PRX ONE is a versatile all-in-one powered column PA speaker that delivers exceptional sound quality with its built-in mixer and DSP. JBL live sound speakers are perfect for a wide range of applications, offering high output and clear audio. The PRX ONE's advanced features, such as Bluetooth connectivity and a user-friendly interface, make it an ideal choice for both novice and professional sound engineers.

JBL Transporter for PRX ONE Speaker

The JBL Transporter is designed specifically for the PRX ONE speaker, providing a convenient and secure way to transport your equipment. Its durable construction ensures your speaker is protected during transit, making it easier to set up and break down at different venues. The Transporter's wheels and handles allow for effortless mobility, enhancing the overall convenience of your live sound system.

Pure Resonance Audio UC1S Ultra-Clear Microphone

The Pure Resonance Audio UC1S microphone is designed to deliver ultra-clear vocal performance, making it an excellent addition to any live sound setup. Featuring an on/off switch for added control, this dynamic vocal microphone ensures crisp and clear audio reproduction. Its robust construction and reliable performance make it a favorite among vocalists and public speakers.

On-Stage Stands MS7701B Euro Boom Microphone Stand

The On-Stage Stands MS7701B is a versatile and stable microphone stand that is perfect for any live performance. Its adjustable height and boom length provide flexibility in positioning, ensuring optimal sound capture. The stand's sturdy construction and easy-to-use design make it a reliable choice for both indoor and outdoor events.

JBL PRX ONE All-in-One Powered Column PA Speaker with Mixer and DSP:

• Vertical array of 12 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back
• Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
• JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
• Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
• Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range
• 12-inch bass-reflex woofer extends low-end response to 35 Hz
• 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes
• Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
• 130 dB max SPL
• Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends.
• Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup
• Triple Tier DSP control offers multi-level user experiences based on knowledge level
• dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control
• One-touch ducking by Soundcraft ensures speech is always heard

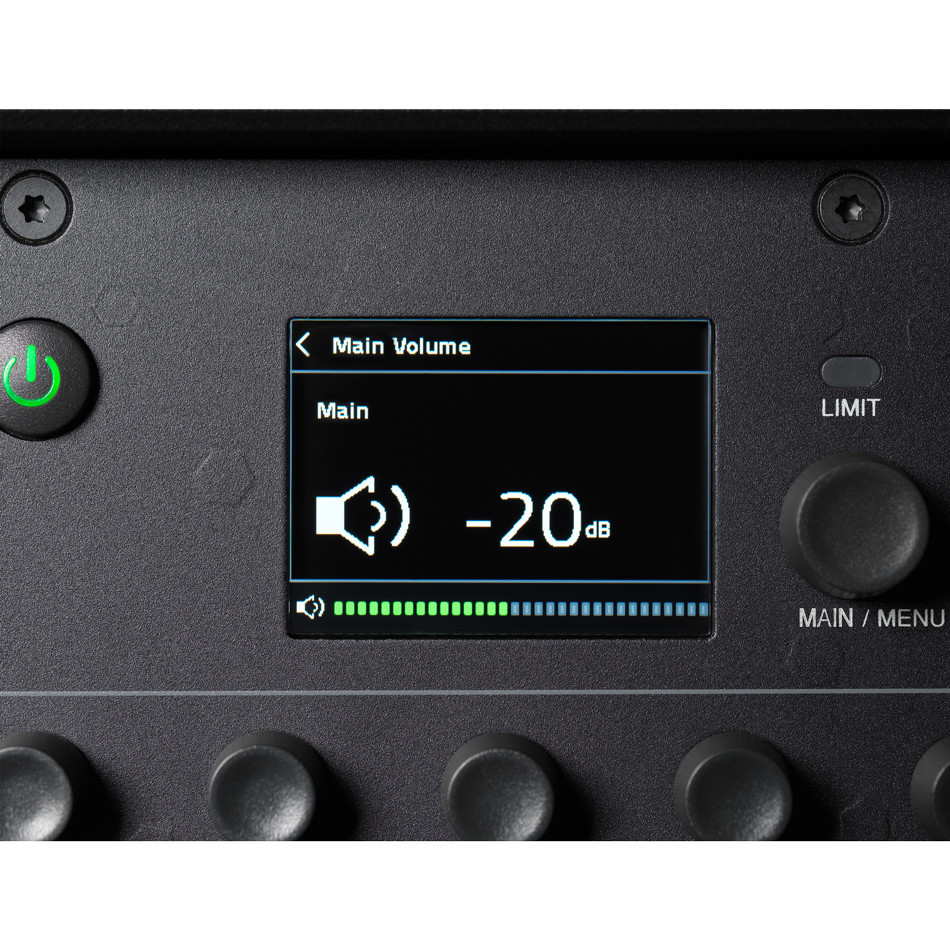

• Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
• 8 user presets instantly optimize system sound
• Robust audio connectivity: I/Os include 4 XLR Combo, 2 Hi-Z, 1 1/8-inch/BT audio and 1 XLR Pass Thru
• 2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
• Two channels of true +48V phantom power expand microphone support
• Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app
• Full app control using JBL Pro Connect
• Rugged enclosures withstand the rigors of the road
• Optional bracket and adapter allow array to be wall or truss-mounted independently of subwoofer for permanent installations
• Computer-modeled ComfortGrip handle simplifies transport
• Included nylon carrying bag for array
• Attractive, discreet form factor
• Weight: 55.65 lbs (25.7 kg)



JBL Transporter for PRX ONE Speaker:

• Rolling base speaker transporter for JBL PRX ONE PA system
• Deluxe subwoofer cover with durable polyester exterior & soft, tricot interior attaches to caster board via buckles
• 10mm-thick, integrated caster board & convenient tow handle for easy travel
• Handle cutout access with hook-and-loop flap closure
• Printed JBL® logo



Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphones with On/Off Switch:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events



On-Stage Stands MS7701B Euro Boom Microphone Stand:

• 5/8" - 27 solid threaded upper shaft
• Long 30" boom with molded plastic counterweight
• Euro-style boom with separate clutches for length and angle adjustments
• Allows user to make easy one-handed adjustments while performing
• Die-cast zinc clutch adjusts height from 36" - 63"
• Clip-on cable holder
• Steel-reinforced plastic leg housing offers less weight and exceptional strength
• Folding legs w/ rubber end caps for durability and reduced floor vibrations

• (1) JBL PRX ONE All-in-One Powered Column PA Speaker with Mixer and DSP
• (1) JBL Transporter for PRX ONE Speaker
• (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
• (1) On-Stage Stands MS7701B Euro Boom Microphone Stand
• (1) Pure Resonance Audio XLR-25 Microphone Cable - 25ft
