All-Weather Luxury Resort Music Sound System for Outdoor Pool Bar and Lounging Area with 40 In-Ground Speakers and 4 In-Ground Subwoofers

Inside the Design

This large-scale 70V outdoor sound system is purpose-built for luxury hotels, resort pools, dayclubs, and outdoor entertainment spaces. Designed to cover up to 15,000 sq. ft, it provides smooth, high-quality background music and clear paging throughout sprawling outdoor areas. Using a combination of in-ground landscape speakers, subwoofers, and professional amplifiers with DSP control, this all-weather system delivers an elegant, balanced soundscape that blends seamlessly into the environment. Engineered with durable, weatherproof components, it ensures long-term reliability and consistent audio performance even in harsh outdoor conditions.

Sound System Features:

• Professional-grade 70V sound system designed for large outdoor areas up to 15,000 sq. ft
• All-weather, UV-resistant, and corrosion-proof components for year-round performance
• Wide 360º sound dispersion for even coverage and immersive ambient audio
• Powerful low-end reinforcement with in-ground subwoofers for rich, natural bass
• Networked DSP amplifiers for precise system tuning and flexible control
• Remote wall-mounted control panels for convenient zone and volume adjustment
• Protected power sequencing and conditioning for safe and stable system operation

About the System Components

SoundTube XT850 8" Coaxial Outdoor Speakers

The SoundTube XT850 speakers feature patented BroadBeam® waveguide technology for smooth 360º horizontal coverage and excellent off-axis performance. Each unit includes an 8" weatherproof polypropylene woofer and 1" aluminum dome tweeter, housed in a Zero-Reflection™ sealed enclosure. Built to endure sun, chlorine, and moisture exposure, these outdoor speakers include a weather-proof 5-position tap switch for 25V, 70V, and 100V systems and come with stainless steel hardware for long-lasting durability.

Rockustics Periscape 6 6.5" Landscape Speakers

The Rockustics Periscape 6 landscape speakers are stylish, weatherproof spike-mounted units designed to blend naturally into outdoor environments. Featuring a 6.5" 2-way design, they deliver full, balanced sound for pool decks, patios, and gardens. Each includes a 70V transformer with multiple tap settings and 8-ohm bypass mode, making them ideal for scalable outdoor installations. Their discreet brown finish complements resort and landscape aesthetics.

Rockustics Subscape 12 12" In-Ground Band-Pass Subwoofers

The Rockustics Subscape 12 is a 12" direct-burial subwoofer engineered to provide deep, musical bass for outdoor systems. With 300 watts RMS handling and an integrated 70V transformer, it pairs perfectly with Periscape and XT-series speakers. Once installed, only the brown vent cap is visible, maintaining a clean and natural look while delivering impressive low-end performance.

Ashly Audio Pema 8250.70 8-Channel Power Amplifier with Protea DSP

The Ashly Pema 8250.70 combines an 8-channel 70V power amplifier with integrated Protea DSP processing for a powerful all-in-one control solution. With 8 inputs and 8 assignable outputs, it offers complete flexibility for zoning, equalization, compression, limiting, and crossover management. The built-in DSP includes dynamics, gain, delay, and metering functions, ensuring perfect balance and clarity throughout the system.

Ashly Audio nXp8004 4-Channel Networkable Multi-Mode Power Amplifiers

Each Ashly nXp8004 amplifier delivers 4 channels of high-efficiency power with built-in Protea DSP for advanced signal processing and control. Network-ready and compatible with Ashly’s remote software and iPad app, these amplifiers provide real-time system monitoring, EQ adjustment, and matrix control. The built-in Energy Management System (EMS) automatically reduces power consumption during idle periods.

Ashly Audio neWR-5 Programmable Multi-Function Network Wall Remotes

The Ashly neWR-5 programmable remotes provide easy, intuitive control of source selection, volume, and zone levels from convenient wall locations. Compatible with all Ashly network-enabled devices, these Decora-style controllers use Ethernet connectivity for reliable, low-latency operation and can be fully customized using Ashly’s Proteane software.

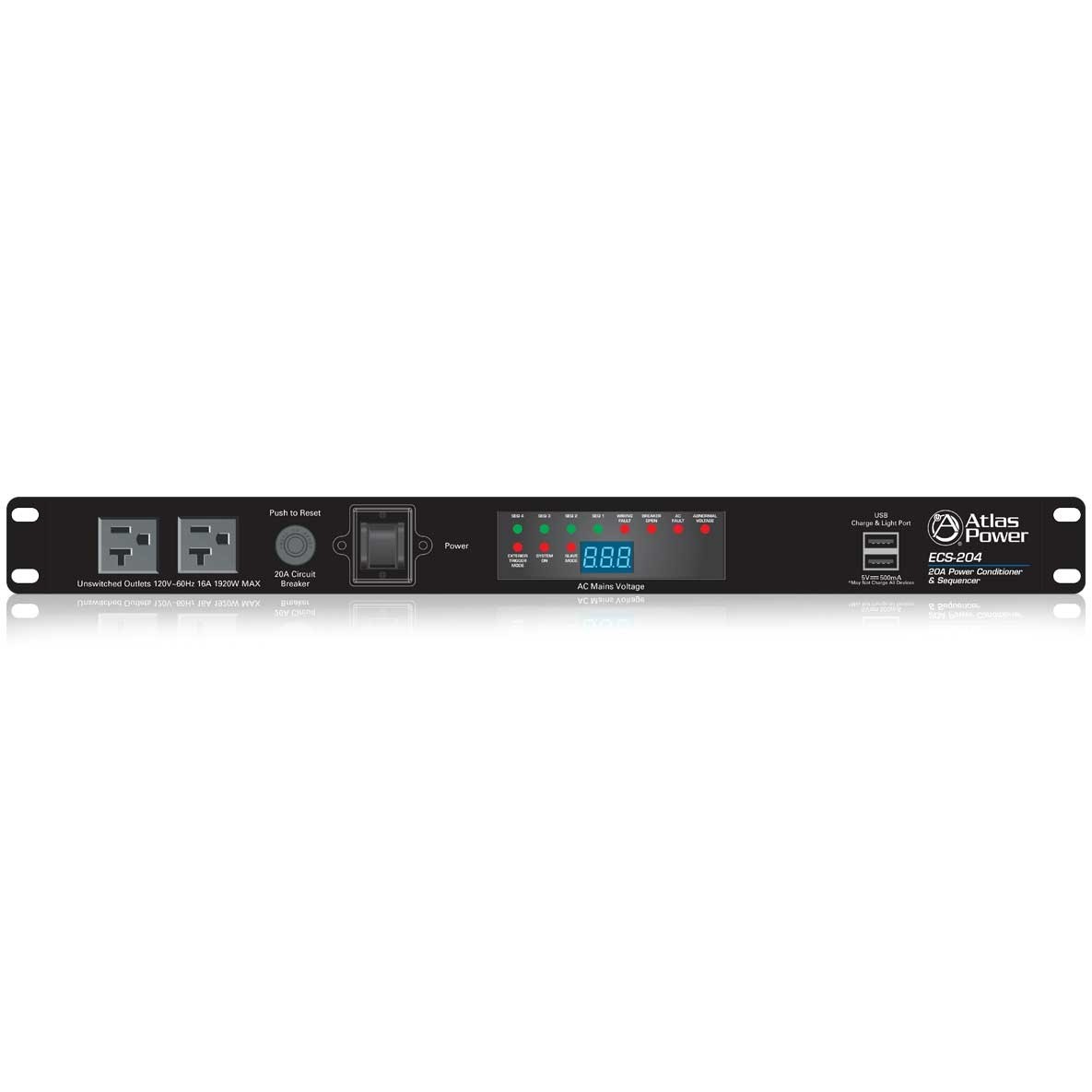

AtlasIED ECS-204 20A AC Power Conditioner and Sequencer

The AtlasIED ECS-204 power conditioner and sequencer ensures stable AC power distribution and protection for all connected equipment. With four timing sections, remote activation capability, and a precision digital voltmeter, it simplifies system startup and shutdown while preventing power surges. Dual front USB charge ports and optional gooseneck lighting support add extra convenience in rack-mounted applications.

AtlasIED WMA10-23 10RU Wall Rack and Accessories

The AtlasIED WMA10-23 wall-mounted rack provides secure, space-saving equipment storage with adjustable rails and durable steel construction. It includes vented rack panels for optimal airflow and professional cable management. Combined with SpeakON cable adapters and Aquaseal-rated wiring, the rack assembly ensures a clean, protected, and professional installation.

SoundTube XT850 8" Coaxial Outdoor Speakers

• Patented BroadBeam® 360° dispersion pattern delivers smooth off-axis coverage and reduces overall system costs
• Professional-grade components and construction for lasting performance and durability
• Water-resistant construction with liquid-tight compression fittings
• Protection from UV rays, weather, and weed-wackers
• Patented ZeroReflection™ enclosure enhances bass performance
• 5-Position tap switch for 4 Ohm or 25/70.7/100 V applications
• Multiple inputs for fast and easy daisy-chaining of multiple speakers

Rockustics Periscape 6 6.5" Landscape Speakers

• Attractive, discreet 6", 2-way speaker design
• Fully weatherproof for all-season use
• Easy installation with included ground spike
• Ideal for outdoor music and paging applications
• Configurable with any number of Periscape speakers
• 70V transformer with tap settings for 70.7 or 100V operation
• Transformer bypass setting allows operation in 8 ohm direct mode

Rockustics Subscape 12 12" In-Ground Band-Pass Subwoofers

• 12" direct-burial subwoofer for deep outdoor bass response
• Perfectly complements Periscape landscape speakers
• 300W (RMS) power handling
• Delivers rich, ground-shaking low-end performance
• Only the brown vent cap is visible once installed
• Compatible with Rockustics and other outdoor speaker systems
• Built-in transformer for 70V installations
• Operates in 8 ohm direct mode if desired

Ashly Audio Pema 8250.70 8-Channel Power Amplifier 8 x 250W @ 70V with Protea DSP

• 8 built-in mic preamps with 15V phantom power
• CobraNet® and Dante® network audio fully supported
• Gain sharing automatic microphone mixing (Automixer)
• Automatic feedback suppression and ambient noise compensation
• Dedicated telephone/PBX input and dual RCA/balanced Euroblock inputs
• Post DSP AUX line-level outputs with stereo-to-mono summing
• Built-in pink/white noise and sine wave generator
• Full suite of Ashly Protea DSP with EQ, dynamics, filters, and delay
• Hot-plug DSP placement, 96kHz or 48kHz sample rate
• 32-bit SHARC DSP and 24-bit A/D–D/A audio resolution
• Event scheduling (RTC) and automatic DHCP IP configuration
• Control via Ashly software over 10/100 baseT Ethernet or iPad® app
• External control using Ashly wall remotes and Ethernet remotes
• Standby mode activation via contact closure
• Safety and compliance: cTUVus, CE, FCC, RoHS

AtlasIED ECS-204 20A AC Power Conditioner and Sequencer

• 9 total 20A outlets with 6 rear sequenced in 3 stages
• 1 rear panel unswitched outlet and 2 front panel unswitched outlets
• Sequenced output trigger for external devices
• RFI and EMI filters for clean, stable power
• Dual clamping spike and surge suppression with DCS circuitry
• Front panel digital AC mains voltmeter and emergency power down
• Extreme voltage shutdown (EVS) and circuit breaker protection
• AC fault, wiring fault, and abnormal voltage indicators
• Dual front USB charge ports and rear XLR lamp receptacle
• Front panel mains switch with security cover
• Includes AC power cord retainer for secure installation

Ashly Audio nXp8004 4-Channel Networkable Multi-Mode Power Amplifiers with Protea DSP

• Selectable 80Hz high-pass filter, limiter, and input gain per channel
• Remote DC level control and software-based gain control
• Comprehensive protection circuitry with variable cooling fans
• Ethernet port for full software control and amplifier monitoring
• Serial data port compatible with WR-5 and RD-8C remotes
• Instant standby mode for 30% power savings
• Preset recall via software, contact closure, or event scheduler
• Aux preamp line outputs for driving additional amplifiers
• Software-controlled DSP for EQ, dynamics, matrixing, crossover, delay, and metering
• iPad control of gain, filters, source select, and meters
• Precision load impedance monitoring for

• (24) SoundTube XT850 8" Coaxial Outdoor Speakers
• (16) Rockustics Periscape 6 6.5" Landscape Speakers
• (4) Rockustics Subscape 12 12" In-Ground Band-Pass Subwoofers
• (1) Ashly Audio Pema 8250.70 8-Channel Power Amplifier 8 x 250W @ 70V with Protea DSP
• (2) Ashly Audio nXp8004 4-Channel Networkable Multi-Mode Power Amplifier and Protea DSP
• (2) Ashly Audio neWR-5 Programmable Multi-Function Network Decora Wall Remote Control
• (1) AtlasIED ECS-204 20A AC Power Conditioner and Sequencer
• (1) AtlasIED WMA10-23 10RU 23.5" Deep High Strength Wall Cabinet with Adjustable Rails
• (3) AtlasIED PPR1 19" 1 RU Recessed Vent Rack Panels
• (8) Hosa NL4FXX-W-L 4 Pole Neutrik SpeakON Cable Adapters
• (3000') West Penn AQ227 12/2 Aquaseal Fire-Alarm Speaker Wire
