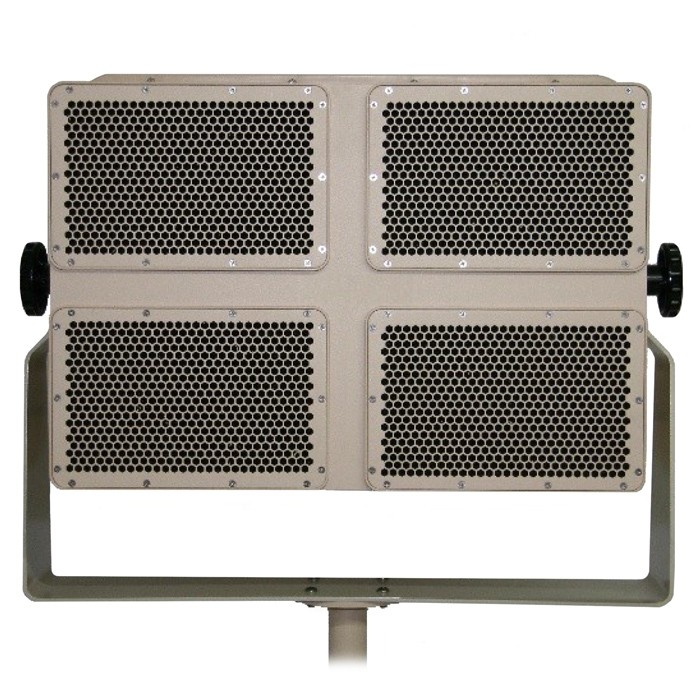

Clear Voice 4MN-P Self-Powered Long Throw 4 Driver Acoustic Hailing Audio Device
Part # 4MN-P
Model # 4MN-P
The Clear Voice 4MN-P self-powered speaker has the same performance and application capabilities as the amplified version with the added flexibility of distributed power supplies. The 4MN-P is ideal for large speaker arrays and installations covering large areas where long and heavy cable runs may be difficult.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Clear Voice 4MN-P 4 Driver Self-Powered Long Throw Acoustic Hailing Magnetic Audio Device

In response to the global demand for an acoustic hailing device that has the ability to effectively communicate with large crowds over great distances, the Clear Voice™ family of planar speakers was developed to meet this challenge.

Built around the proprietary design of the planar transducer, Clear Voice is able to achieve distance and clarity levels that are unmatched by any conventional speaker and horn. Other planar devices that claim to have similar performance capabilities can not compete with Clear Voice in head to head demonstrations.

The Clear Voice 4MN-P is capable of delivering intelligible messages over 500 meters and is the perfect solution for loud production areas or outdoor environments where conventional speakers and horns cannot overcome the ambient noise level. With the proprietary Clear Voice technology, the 4MN-P speaker is powered by four transducers that can deliver unimaginably clear and intelligible messages, even when broadcasting at 10 decibels below the ambient noise level!

The 4MN-P housing is made of a unique Xenoy polycarbonate material designed to withstand every environment including extreme heat and cold to –20 degrees and is impervious to UV light and chemical exposure. Designed with watertight seals and connectors, the 4MN-P can be deployed anywhere and meets IP-66 specifications.

The 4MN-P the largest Clear Voice speaker that can operate as a stand-alone solution and has the diversity to be designed into a large installation. With a frequency range down to 180hz, the 4MN-P is exceptionally musical while being extremely efficient for public address applications. The 4MN-P is self-powered and is accompanied by a variety of mounting options allowing for easy deployment in any situation.

Powerful and adaptable, the 4MN-P can deliver a concentrated signal to a defined location or configured in an array covering a wide area and long distances. The magnetic vehicle mount or tripod stand, combined with the self contained controller case, creates a mobile solution providing first responders and tactical teams with the ability to deliver messages where it is needed most. When designed with the different mounting solutions, the 4MN-P is the perfect solution for industrial plants, production facilities, transportation yards, oil fields, ports of call, stadiums, college campuses, and public gathering space where clear and intelligible communication is essential.

Features

Features

  • Can be mounted on a tripod (tripod not included)
  • Throw distance up to 500 meters (1640 feet)
  • Self-powered version gives added flexibility to power the speaker locally with 110VAC
  • 4 drivers with waveguide planar technology
  • Large wide area coverage
  • Performs at long distances with superior audible levels
  • Rugged weather-resistant housing for the harshest environments
Specification
ConfigurationsCompact, highly portable, full-range Planar Magnetic Speaker for indoor and outdoor use.
Drivers4 MAD-1 planar magnetic transducers each mounted to a 500 Hz Waveguide
Impedance4 ohm
Power Handling100 watts RMS or 1500 way peak (per transducer) for less than 5 milliseconds
Sensitivity1w/1m = 128dB-SPL when coupled to the waveguide
EnclosureMade of Xenoy, high impact resistant, heat resistant, chemical resistant, weather resistant.
Environmental DesignDesigned to meet IP-66 classification and MIL-STD-810F specifications. Operates from –40 degrees Fahrenheit to 140 degrees Fahrenheit.
Dimensions (H x W x D)23" (584.2 mm) x 22" (558.8 mm) x 16.4" (416.56)
Weight58 lbs (26.3 kg)
