Outdoor PA System with 4 H6 6.5" All-Weather Horn Speakers, MX9 9-Channel Mixer, DA2240 Dual-Impedance Power Amplifier and PTT1 Paging Microphone

Inside the Design

This outdoor PA system features 4 H6 6.5" 2-way full-range all-weather horn-loaded loudspeakers with exceptional voice reproduction and wide dispersion for optimal sound coverage, a MX9 9-channel rack mount mixer with Bluetooth and effects, a DA2240 dual-impedance 240W rack mount power amplifier, and a PTT1 desktop push-to-talk gooseneck microphone. Ideal for indoor and outdoor commercial public address applications such as amusement parks, golf courses, ferry terminals, botanical gardens, zoos, cruise ships, marinas, event venues, bus stations, and other public areas, this system is perfect for ensuring clear communication in any setting.

Designed for exceptional clarity and vocal intelligibility, this comprehensive public address system ensures every message is heard loud and clear. Each speaker, capable of reaching distances up to approximately 400 feet, benefits from up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern, ensuring comprehensive and even coverage. This setup guarantees that announcements, emergency notifications, and public safety alerts are conveyed with unparalleled clarity, far surpassing the unintelligibility often associated with average paging horns in challenging environments.

Sound System Features:

• Built to withstand harsh conditions, the H6's IP66 weatherproof rating and polypropylene carbonate enclosure provide complete protection against dust, water, and impacts for reliable performance in demanding environments
• Designed for crystal-clear sound, the H6 offers superior voice intelligibility over long distances, ensuring effective communication with its high-output performance and excellent paging capabilities
• Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects
• High-performance switching power supply and Class-D type power amplifier with two 240-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
• Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
• The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications



About the System Components

H6 6.5" All-Weather Horn Loudspeakers

The Pure Resonance Audio H6 horn-loaded loudspeaker is a durable and reliable choice for public address systems in challenging environments. Constructed from polypropylene and calcium carbonate, it delivers high-quality paging and announcements over long distances, even in extreme conditions. With an IP66 rating and impact-resistant housing, the H6 is protected against dust, dirt, water, and environmental impacts. Ideal for settings like stadiums, schools, arenas, parks, and factories, it provides clear speech with power taps up to 60 watts and a wide 90° x 90° coverage angle. Featuring a 6.5" woofer and a 1" tweeter, it offers high-output sound with a frequency response of 120Hz - 18kHz and 93 dB SPL sensitivity. The built-in 60W 70V/100V transformer and heavy-duty mounting bracket ensure flexible, secure installation, making the H6 a practical solution for various public address applications.

MX9 9-Channel Mixer with Bluetooth & Effects

The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

DA2240 Dual-Impedance 240W Power Amplifier

The Pure Resonance Audio DA2240 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each powerful 240-watt channel has an independent 70V/4-16Ω switch allowing them to simultaneously use a different impedance, delivering more flexibility in various commercial applications. This high-performance rack mount audio amplifier is a cost-effective solution housed in a standard 1U 19" lightweight chassis. The DA2240 features short-circuit, overload, and overheating protection with cooling fans to provide heat dissipation, maintaining safe operation in environments with long working hours.

PTT1 Push-to-Talk Paging Microphone

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your baseball field sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.

Pure Resonance Audio H6 6.5" Full-Range All-Weather Horn-Loaded Loudspeakers

• Weatherproof - Built to withstand harsh conditions, the IP66 weatherproof rating and polypropylene calcium carbonate enclosure ensure complete protection against dust, water, and impacts while also providing enhanced thermal conductivity for reliable long-term performance in demanding indoor and outdoor environments
• Quality Performance - The 6.5" LF paper and 1" ABS/glass fiber HF drivers produce a frequency response of 120Hz - 18kHz and a max SPL of 110 dB for full-range high-output sound
• Excellent Paging - Designed to deliver crystal-clear sound, the H6 provides superior voice intelligibility essential for effective communication over long distances
• Built-In Transformer - The H6 features a built-in 60-watt 70V/100V transformer with a 4-ohm bypass and a recessed bare wire connector for versatile power options and a weather-safe connection
• Wide Coverage - Up to 60 watts of continuous power handling and a 90° x 90° dispersion pattern produce comprehensive and even coverage, making the H6 ideal for areas where uniform sound distribution is crucial
• Quick & Secure Installation - The included heavy-duty mounting bracket allows for safe, secure, and straightforward installation, providing stability and peace of mind in small stadiums, schools, warehouses, parks, docks, and other indoor or outdoor commercial applications



Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects

• Convenient Design - Powerful and professional quality analog mixer in a compact 3U rack mount design featuring high-quality components with maximum flexibility
• Multiple Inputs - 9 channels consisting of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs and an additional set of front panel Tape In inputs
• Versatile Outputs - 2 sets of stereo main outputs, 2 groups of auxiliary outputs, and a separate headphone output on the front panel
• DSP Effects - Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects, including gate reverb, delay, vocal echo, phaser, chorus, symphonic, distortion, pitch change, and more, or use the prefader option
• Bluetooth - Media player with display screen features Bluetooth audio streaming, MP3, USB with sound card function, and USB computer recording
• Channel Control - Each channel offers 3-band EQ, individual gain control, pre-fader monitor send, a peak indicator light, volume fader adjustment, and pan control, allowing users to direct the signal using a stereo setup



Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier

• Highly Efficient - High-performance switching power supply and Class-D type power amplifier provides 85% efficiency with low power loss and heat output
• Dual-Impedance - Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
• Powerful - Two 240-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
• Compact Size - Compact, lightweight, yet durable 1 rack unit 19-inch industrial chassis with a clean, intuitive design
• Works Long Hours - Automatic cooling fans effectively dissipate heat, ensuring safe and reliable operation even in harsh conditions over extended periods of time
• Safeguard Protected - High temperature, overload, and short circuit protection with signal, peak clipping, protection, and power supply indicator lights

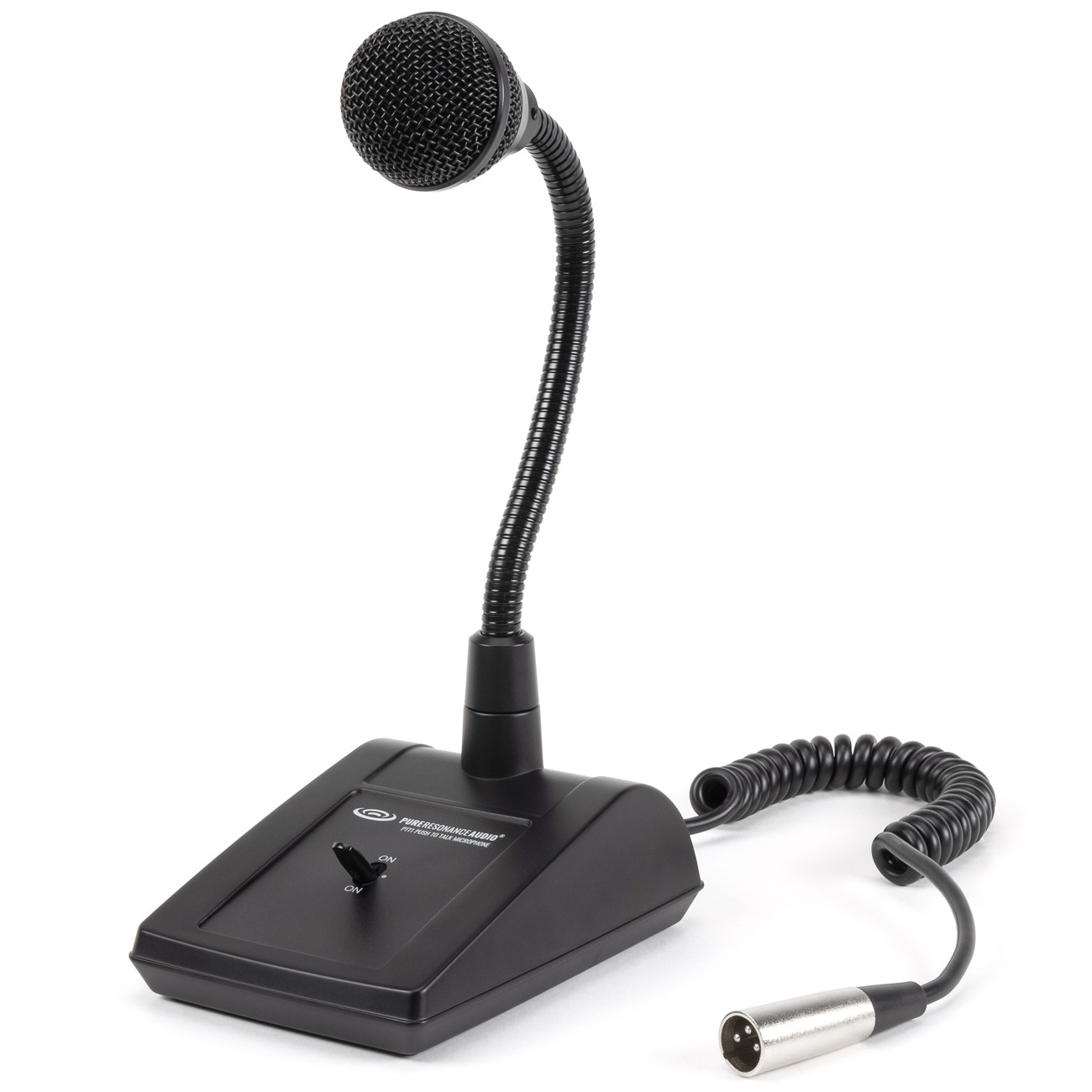

Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone

• Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (4) Pure Resonance Audio H6 6.5" 2-Way Full-Range All-Weather Horn-Loaded Loudspeakers
• (4) Mounting Brackets
• (1) Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects
• (1) Power Cord
• (1) Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier
• (1) Power Cord
• (1) Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
• (2) Pure Resonance Audio XLRF-3-PREP Female XLR to Prep Patch Cables - 3ft

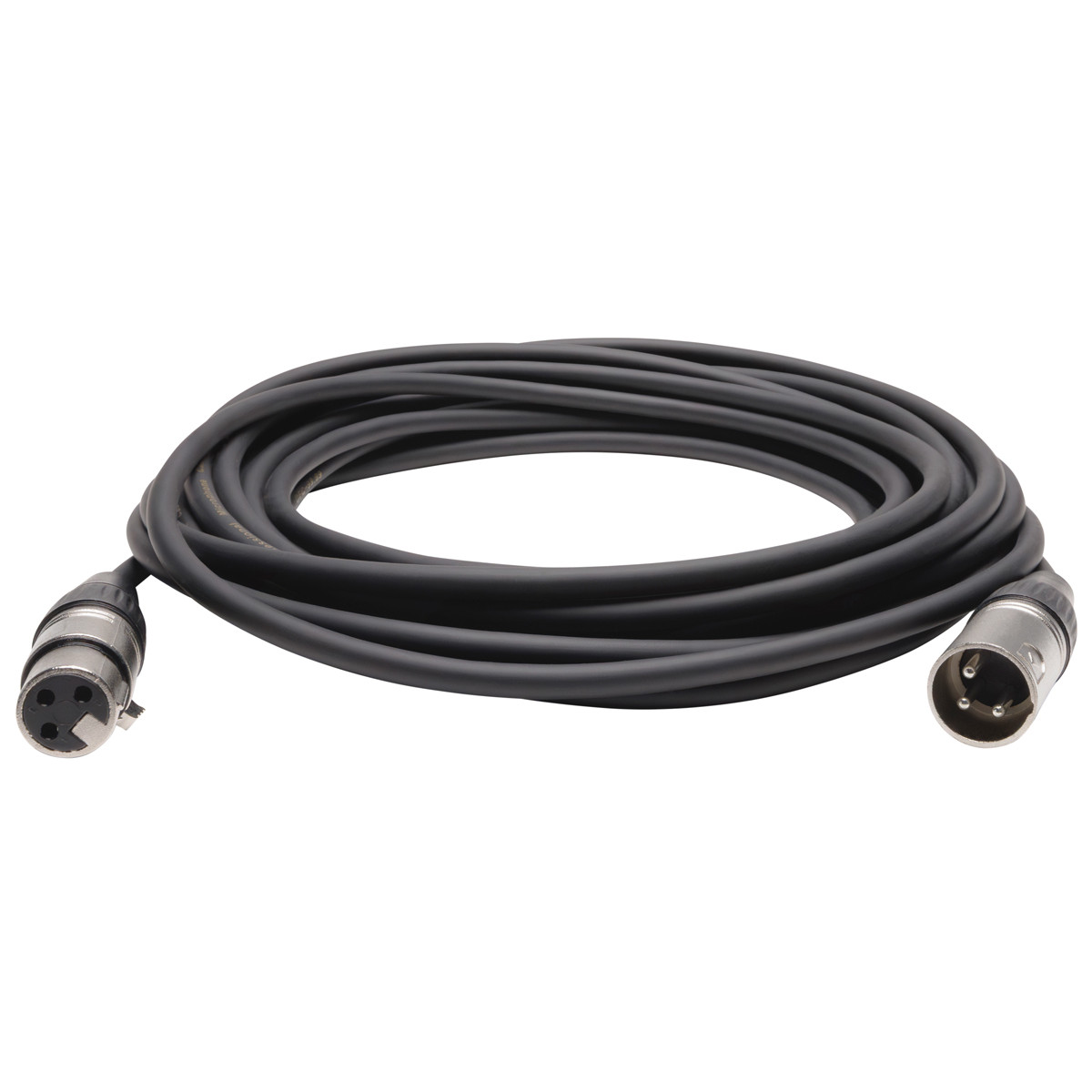

• (1) Pure Resonance Audio XLR-25 Female XLR to Male XLR Cable - 25ft
• (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Black
