Inside the Design

This affordable school sound system provides excellent performance for background music, sound masking, paging or enhanced classroom audio in K-12 schools, high schools, universities, and other educational institutions. Wirelessly stream audio with your Bluetooth-enabled device or connect your existing audio and/or video equipment such as a projector, USB thumb drive, SD card, CD/DVD player, laptop or computer via the mixer amplifier. The SP8 can replace multiple single speakers and provides approximately 20' x 20' or 400 sq ft of audio coverage from a single speaker. Perfect for buildings with minimal space between the structural ceiling and the dropped ceiling, the SP8 ceiling speakers have a slim mounting depth of only 3.9" (100 mm).

Sound System Features:

• Takes minutes to install, just remove one ceiling tile and drop the Pure Resonance Audio SP8 into any standard 2x2 drop tile ceiling grid
• These 2x2 speakers have an extremely low profile depth of 3.9" allowing them to fit into suspended ceiling spaces where deeper standard speakers would not
• Inputs available for connecting personal devices (laptop, smartphone, tablet, etc.) to stream music wirelessly via Bluetooth or add a microphone if desired
• Included remote control manages volume levels, play/pause, skip and more all from a distance
• Designed as a DIY audio solution that is simple to install and operate

This Pro Acoustics designed school or classroom sound system includes four Pure Resonance Audio SP8 SoundPlane 2x2 lay-in drop ceiling tile speakers, each with an 8" driver, a Pure Resonance Audio MA30BT 30W Bluetooth mixer amplifier and 100' of 18/2 non-plenum speaker wire.

Not sure if this is the right Educational Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

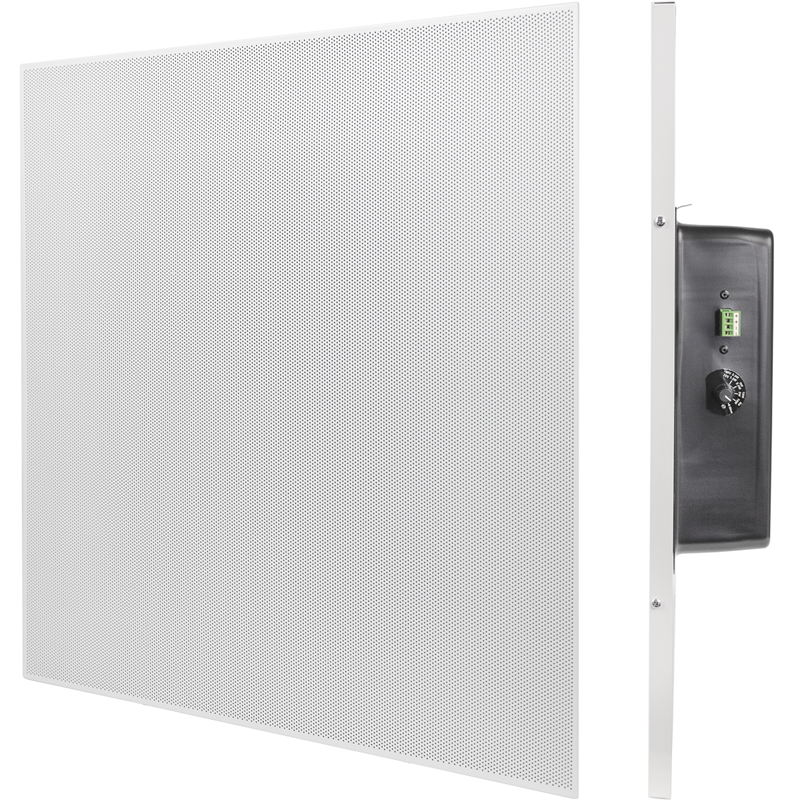

Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Drop Ceiling Tile Speaker:

• Ultra-low profile of only 3.9" for shallow ceiling installation
• Selectable 8 Ohm 70V/100V 10W taps
• Full-range sound offers an excellent listening experience
• Frameless design provides reduced visibility for a clean and built-in look
• Easy installation drops into a 2'x2' suspended grid ceiling space
• Safety hook with included safety cable



Pure Resonance Audio MA30BT 7-Channel 30W Commercial Mixer Amplifier with Bluetooth:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 30 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

• (4) Pure Resonance Audio SP8 SoundPlane 2x2 Low-Profile 8" Ceiling Tile Speakers
• (1) Pure Resonance Audio MA30BT 30W Bluetooth Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (100') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
