Football Stadium Sound System with 3 Community Stadium Speakers and Yamaha Powered Mixer with Feedback Suppressor
Part # FSSS-2R353896R5HPEMX7
Model # FSSS-2R353896R5HPEMX7

This sound system for football fields provides superb vocal clarity for play-by-play announcements, high-powered music, and amazing spectator coverage in small to medium school football stadiums with both home and visitor bleachers.


System Highlights:
- Budget: Under $7,000
Crowd Size: Small Medium Large
- Music Quality: Good Better Best
- Includes: Wireless Handheld Mic &
  Portable Powered Mixer


Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Inside the Design

This permanent installation PA system for football fields is designed for small to medium middle school or high school stadiums with both home and visitor bleachers. When mounted to the press box, this system can cover from 30 to 30-yard line, with a crowd of over 750 people. This system provides strong and clear audio for play-by-play announcements, paging, recorded messages, and music entertainment during game day festivities where vocal clarity and coverage are essential.

Sound System Features:

  • Superb intelligible speech for play-by-play and announcements
  • Incredible background/foreground music reproduction
  • Weather-resistant, compact, horn-loaded loudspeakers
  • Portable 12-channel 2 x 710W powered mixer amplifier with feedback suppressor
  • Handheld wireless microphone system with an operating range of 300'
  • Ultra Clear handheld announcement mic with a quiet On/Off switch and desktop stand

About the System Components

Community R.35-3896 8" Weather Resistant Horn-Loaded Loudspeaker

The Community R.35-3896 8" three-way horn loaded loudspeaker is housed in the same size enclosure as the 10" R.35COAX. It has a triaxial 8" carbon ring cone loudspeaker featuring Community's exclusive MultiSource Waveguide technology which adeptly integrates the output from dual midrange compression drivers and a 1" exit HF compression driver into a single coherent source. Fully passive, it is voiced for flat musical reproduction without EQ and delivers class-leading SPL levels for a loudspeaker of its size.

Community R.5HP 12" Weather-Resistant Horn-Loaded Loudspeaker

The R.5HP has been engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously.

Yamaha EMX7 Portable 12-Channel Powered Mixer

The Yamaha EMX7 was designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

Audio-Technica ATW-3212/C510 Wireless Microphone

The Audio-Technica ATW-3212/C510 handheld wireless system comes with the ATW-R3210 receiver, ATW-T3202 handheld transmitter, and the ATW-C510 cardioid dynamic microphone capsule. The Audio-Technica 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. The 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands - DE2 (470-530 MHz) and EE1 (530-590 MHz) - that provide a class-leading 60 MHz tuning range.

System & Component Videos

Features

Features

Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers

  • Excellent musicality and intelligibility, low distortion, and high sensitivity and output
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • NeverWet treated grille and LF driver cones, polymer HF and MR diaphragms, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated (DLPC) steel grille and low-profile yoke
  • Innovative MultiSource Waveguide (MSW) horn design for high frequency and dual midrange drivers
  • 200W autoformer (standard)
  • Light Grey, Black and White finish standard

Community R.5HP 12" 3-Way Horn-Loaded Weather Resistant Loudspeaker

  • Weather-treated drivers and crossovers
  • Weather-resistant, rotomolded UV enclosure with corrosion-resistant zinc-rich epoxy dual-layer powder coated
  • High efficiency with pattern control down to 630 Hz
  • High power passive crossover

Yamaha EMX7 Portable 12-Channel Powered Mixer

  • Powerful & High Efficiency Class-D Amplifier
  • Robust But Extremely Portable Design
  • Easy Setup, Easy Operation
  • Complete Range of Input & Output Channels
  • 12 Line Inputs (8 mono + 4 stereo)
  • High-Z input (channel 4) to connect guitars or basses directly
  • Flex 9 Graphic Equalizer
  • Onboard Feedback Suppressor
  • Comprehensive, professional 24 different effects
  • Yamaha Speaker presets
  • Metal chassis for extended operation and robustness
  • Large handles for extreme portability and protection
  • Universal power supply eliminates concern on power fluctuations
  • Optional rack-mount kit available

Audio-Technica ATW-3212/C510 True Diversity UHF Handheld Wireless System

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch

  • Super heavy-duty housing
  • Built-in wind and breath "pop" noise filter
  • Ultra dependable quiet switch
  • Steel mesh grille
  • SwitchCraft connector
  • Frequency response tailored for vocals
  • Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
  • Supplied with break-resistant stand adapter
  • Frequency response: 50 to 16,000 Hz
  • For outdoor and indoor events
Documents

Documents

System Includes

System Includes

  • (2) Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers
  • (1) Community R.5HP 12" 3-Way Horn-Loaded Weather Resistant Loudspeaker
  • (1) Yamaha EMX7 Portable 12-Channel Powered Mixer
  • (1) Audio-Technica ATW-3212/C510 True Diversity UHF Handheld Wireless System
  • (1) Pure Resonance Audio UC1S Ultra-Clear Microphone with On/Off Switch
  • (1) Atlas Sound DS7E Adjustable Height Desktop Mic Stand
  • (2) XLR to XLR Microphone Cables - 25ft
  • (1) Hosa CMR-206 Stereo Breakout Audio Cable - 6ft

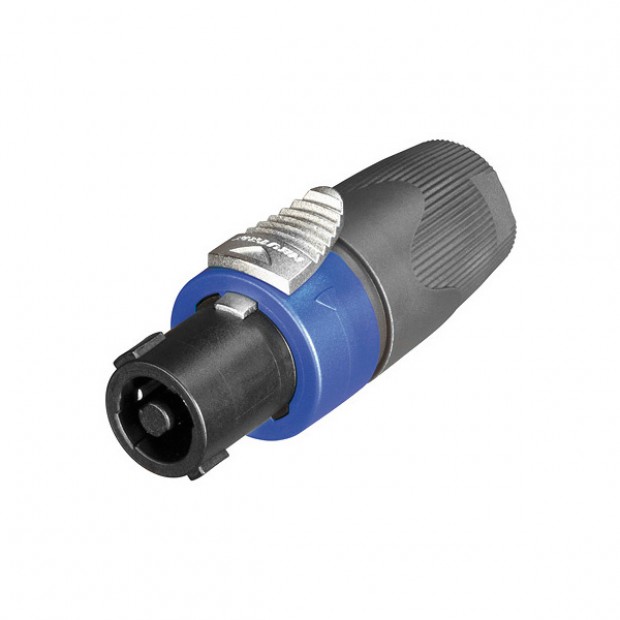

  • (2) ProCo NL4FX SPX Series 4 Pole SpeakON Cable Connectors
  • (200') West Penn AQ227 12/2 Aquaseal Fire-Alarm Speaker Wire
Reviews

Customer Reviews 1 item(s)

Thank you Nathan Turner for outstanding service!
This system is an excellent sound system for small to medium sized stadiums. I'm no sound engineer but with the help of Nathan Turner the install and hookups were easy and fired up on the first try. Review by Scoop / (Posted on 8/5/2022)
