Inside the Design

This high-quality, multi-zone baseball stadium speaker system with four community stadium speakers provides high-output audio for music, play-by-play announcements, and paging in baseball, softball, or little league fields. This baseball field sound system is great for sports complexes with up to four separate fields. Reaching a crowd of up to 150 people per zone, the audio for any field can be turned up, down, or on/off separately. With some additional hardware, this simple to operate system can be expanded to have a separate mic and music source for all four baseball fields.

Sound System Features:

• Simple to set-up and operate
• Horn-loaded, weather-resistant, high-output loudspeakers
• Provides audio for up to 4 baseball fields
• Priority input for announcements or emergency paging
• Built-in Bluetooth, MP3, FM tuner and media player
• Ultra Clear handheld mic with a quiet On/Off switch and desktop stand



About the System Components

Community R.35-3896 8" Horn-Loaded Weather Resistant Loudspeakers

The Community R.35-3896 8" three-way horn-loaded loudspeaker is housed in the same size enclosure as the 10" R.35COAX. It has a triaxial 8" carbon ring cone loudspeaker featuring Community's exclusive MultiSource Waveguide technology, which adeptly integrates the output from dual midrange compression drivers.

Pure Resonance Audio RZMA240BT 4 Zone 240W Bluetooth Mixer Amplifier

Powerful and feature-packed, the Pure Resonance Audio RZMA240BT is a 4-zone commercial mixer amplifier equipped with built-in MP3, FM tuner, and Bluetooth. Featuring 4 x 240-watt output capability at 4 ohms and 70 and 100 volts, this multi-zone mixer amplifier is full of power. It is designed with advanced matrix technology that allows four-zone selectable inputs to be assigned to a zone or across multiple zones with the push of a button. A monitor channel provides a 1-watt 8-ohm output for a control room monitor speaker. A convenient IR remote is available for volume and source control, and remote microphones can be daisy-chained via Cat5 for zone paging.

Pure Resonance Audio UC1S Ultra-Clear Vocal Microphone

Excellent value and great performance, the Pure Resonance Audio Ultra-Clear™ UC1S Vocal Microphone is perfect for vocal and speech use in schools, houses of worship, corporate AV, public address, fixed installations, and more. Super heavy-duty housing and ultra-quiet On/Off switch. Cost-effective and robust microphone with an On/Off switch for lead vocals, backup vocals, spoken word, and public address announcement applications.

Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers

• Excellent musicality and intelligibility, low distortion, and high sensitivity and output
• Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
• NeverWet treated grille and LF driver cones, polymer HF and MR diaphragms, and moisture-sealed crossover
• Corrosion-resistant zinc-rich epoxy dual-layer powder-coated (DLPC) steel grille and low-profile yoke
• Innovative MultiSource Waveguide (MSW) horn design for high frequency and dual midrange drivers
• 200W autoformer (standard)
• Light Grey, Black and White finish standard



Pure Resonance Audio RZMA240BT 4 Zone 240W Commercial Rack Mount Mixer Amplifier

• 4 channel amplifier in a 3U 19" rack mount design
• All source inputs can be matrix assigned to different 4 zones output simultaneously
• The 5 channel inputs & MP3 input are designed with separate bass, treble and volume control
• 3 microphone/line inputs with phantom power and gain control
• 2 AUX inputs by RAC with gain control
• MP3 player with SD and USB inputs has a separate power supplied module
• Built-in tuner audio source
• 1 4 zone remote microphone input via RJ45 port
• 4 channel line inputs and speaker outputs
• Versatile speaker outputs for each four channels: 70V, 100V and 4 Ω
• RS232 serial control port for third-party system communication
• Priority input to override other inputs (equal to EMC input)
• Input priority level from high to low:
• Before contact priority control input: MIC1 TEL Remote MIC MIC2= MIC3 = LINE4 = LINE5 = MP3
• After contact priority control input: TEL MIC1 Remote MIC MIC2 = MIC3 = LINE4 = LINE5 =MP3
• Built-in monitor with volume control
• Extensive protection of thermal, short-circuit, clip and overload with indicators
• Ground lift switch



Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch and Mic Clip

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

• (4) Community R.35-3896 8" 3-Way Horn-Loaded Weather Resistant Loudspeakers
• (1) Pure Resonance Audio RZMA240BT 4 Zone 240W Commercial Rack Mount Bluetooth Mixer Amplifier
• (1) Pure Resonance Audio UC1S Vocal Microphone with On/Off Switch and Mic Clip

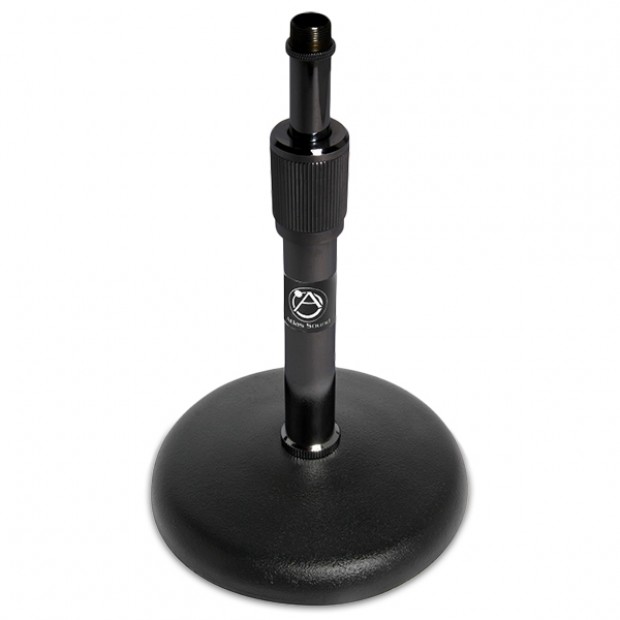

• (1) Atlas Sound DS7E 8" - 13" Adjustable Height Ebony Desktop Mic Stand
• (1) XLR to XLR Microphone Cable - 25ft
• (200') West Penn AQ227 12/2 Aquaseal Fire-Alarm Speaker Wire
