Inside the Design

This sound masking system design comfortably adds ambient white noise for speech privacy and can also incorporate background music, and paging into different zones to create an efficient workspace – increase privacy, improve focus or effectively mask a disruptive environment. This sound masking solution is perfect for a number of applications including offices, medical facilities, call centers, banks and financial organizations, hotels, military and government agencies, law enforcement, law offices, spas, educational institutions and retail stores or any space where reduced distractions and speech privacy is required.

Sound System Features:

• C3 pendants provide the smallest footprint while maintaining high-quality sound, 20 speakers cover approximately 3000SF
• Ideal for exposed structure or open plenum ceiling venues where a stylish contemporary speaker coordinates well with the architectural design
• Eliminate distractions, create a productive workspace or just a pleasant atmosphere. Adds unobtrusive sound masking and speech privacy for your business
• RZMA120BT mixer allows the user to select, play and control sound masking, music and paging to the desired levels and mix proportions of music and masking sounds in up to four zones

About the System Components

This Pro Acoustics designed sound system includes twenty Pure Resonance Audio C3 3" micro ceiling speakers with twenty C3-PK pendant-mount hanging kits, a Pure Resonance Audio RZMA120BT 120W multizone mixer amplifier, a Pure Resonance Audio PrivacyCard™ USB sound masking generator, and 500' of 18/2 gauge speaker wire.

Not sure if this is the right Sound Masking solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring:

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces

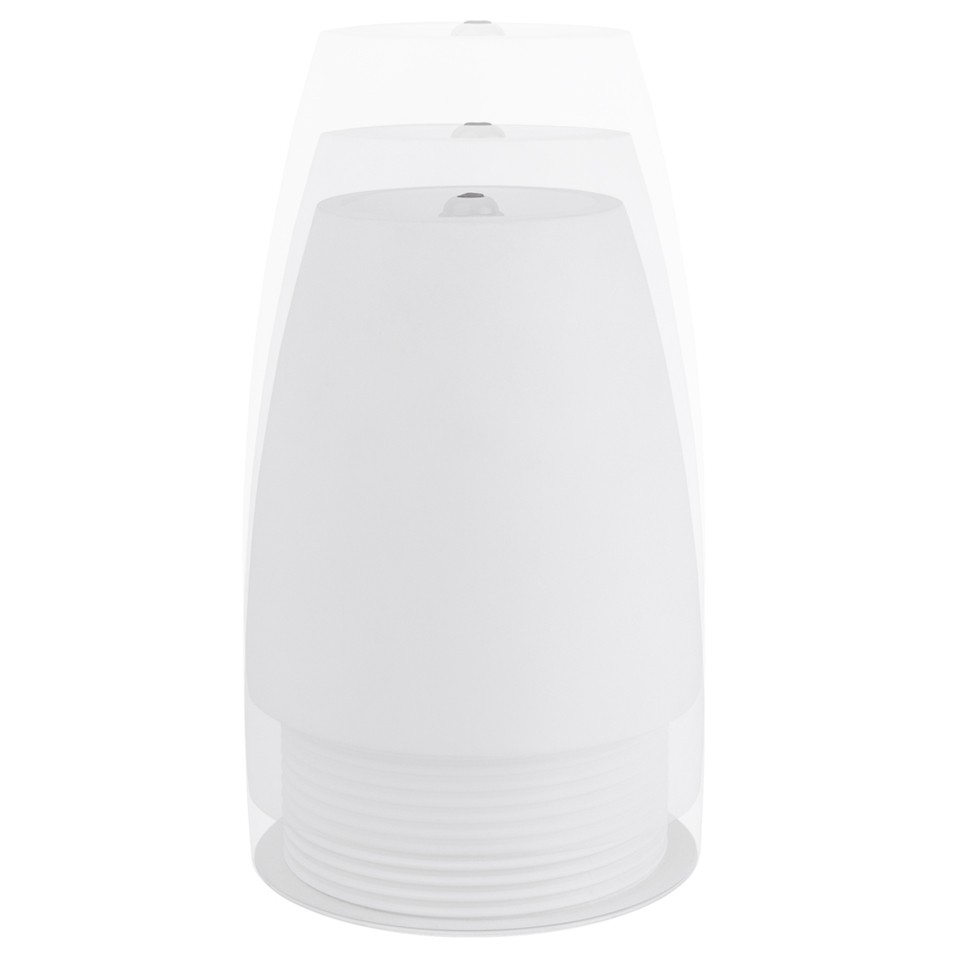

Pure Resonance Audio C3 Pendant Speaker Cover Kit with Wire and Safety Cable:

• Sleek Modern Design - The C3 Pendant Speaker Cover Kit offers a very sleek and modern design that’s aesthetically pleasing in any space
• Easy Install - The C3 ceiling speaker simply twists into the pendant cylinder
• Open Ceilings - Ideal for exposed structures or open plenum ceilings with a contemporary open architecture
• Hardware Included - The included 12ft of 2 conductor 20 gauge speaker cable contains an integrated multi-strand steel stress-relief safety cable and loop nut cinch for quick installation


Pure Resonance Audio RZMA120BT 4 Zone 120W Commercial Rack Mount Mixer Amplifier:

• 4 channel amplifier in a 3U 19" rack mount design
• All source inputs can be matrix assigned to different 4 zones output simultaneously
• The 5 channel inputs & MP3 input are designed with separate bass, treble and volume control
• 3 microphone/line inputs with phantom power and gain control
• 2 AUX inputs by RAC with gain control
• MP3 player with SD and USB inputs has a separate power supplied module
• Built-in tuner audio source
• 1 4 zone remote microphone input via RJ45 port
• 4 channel line inputs and speaker outputs
• Versatile speaker outputs for each four channels: 70V, 100V and 4 Ω
• RS232 serial control port for third-party system communication
• Priority input to override other inputs (equal to EMC input)
• Input priority level from high to low:
• Before contact priority control input: MIC1 TEL Remote MIC MIC2= MIC3 = LINE4 = LINE5 = MP3
• After contact priority control input: TEL MIC1 Remote MIC MIC2 = MIC3 = LINE4 = LINE5 =MP3
• Built-in monitor with volume control
• Extensive protection of thermal, short-circuit, clip and overload with indicators
• Ground lift switch



Pure Resonance Audio PrivacyCard™ USB Sound Masking Generator - White Noise:

• No installation needed, easily adds sound masking and speech privacy for your business
• Small and extremely portable
• Maintains comfort and protects confidential or sensitive patient, customer, company or employee information, as well as private conversations
• Boosts productivity and creativity and helps eliminate distractions by adding waves of ambient sound and hiding the distracting noises
• Customizable noise and music with both sound masking and background music
• Designed by a former Roland® PHD Sound Engineer, frequency-shaped noises focus on frequencies you want to effectively block, ensuring higher efficiency and quieter masking levels

Cut Sheet

• (20) Pure Resonance Audio C3 3" Micro Ceiling Speakers
• (20) Pure Resonance Audio Pendant Mount Cylinders
• (20) Speaker Wires with Integrated Safety Cables and Cinch
• (1) Pure Resonance Audio RZMA120BT 4 Zone 120W Bluetooth Commercial Rack Mount Mixer Amplifier
• (1) IR Remote Control
• (1) Power Cord
• (1) Pure Resonance Audio PrivacyCard™ USB Sound Masking Generator - White Noise
• (500') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
