Inside the Design
This professionally engineered conference room audio system is designed to deliver clear, consistent audio coverage for spaces up to 8,000 square feet. Ideal for conference rooms, divisible meeting spaces, and hospitality environments, this meeting room audio system supports up to four independent zones that can be combined or separated as needed. Whether used for presentations, background music, or paging, this flexible setup adapts easily to changing room configurations.
At the core of this conference room sound system are sixteen Bose Professional DesignMax DM5C in-ceiling loudspeakers, providing balanced, full-range sound with excellent speech intelligibility and music clarity. Powering this system is the Pure Resonance Audio DZMA8125 8-Channel Digital Mixer Amplifier, which enables precise multi-zone routing and consistent output across all areas while maintaining efficient, reliable performance.
Zone-level operation is handled through integrated wall-mounted controls and input stations. The Atlas Sound WTSD-MIX31K wall-mounted mixer input panels allow users in each room or zone to connect directly to the system using microphone, line-level devices, auxiliary inputs, or Bluetooth streaming. This makes them ideal for presentations, lecterns, guest speakers, training sessions, or ad-hoc audio playback without accessing the main rack equipment.
For day-to-day operation, the Pure Resonance Audio DZC Digital Zone Controllers provide simple, intuitive local control over each area. Installed in each zone, the DZC controllers allow users to adjust volume levels independently, select or manage assigned audio sources, and fine-tune output for their specific room without affecting other zones. This ensures each space can operate independently while still being part of a unified system when needed.
With integrated Bluetooth capability, paging microphone support, and flexible source routing through the DZMA8125 platform, this system is built for both everyday use and professional applications. Its scalable architecture ensures seamless operation whether rooms are used independently or combined into larger event spaces.
System Configuration Notice
This system is designed for 70V (high-impedance) distributed audio operation with up to 4 independent zones. The Pure Resonance Audio DZMA8125 functions as a multi-channel digital mixer amplifier, where the 8 channels are used for audio inputs and internal mixing, not for separate speaker zones. In this configuration, the amplifier supports up to four 70V speaker zones total, which can be operated independently or combined depending on system design.
Proper configuration of zone routing, speaker tap settings, and input assignment is required for optimal performance. For assistance with system setup or deployment planning, please contact our sales team at (888) 256-4112 or sales@proacoustics.com.
Sound System Features:
- Complete multi-zone audio solution designed for conference rooms, hotels, and divisible spaces
- Covers areas up to 8,000 square feet with consistent, even sound distribution
- Supports up to four independent zones configurable for separate or combined room use
- Sixteen Bose Professional DesignMax DM5C in-ceiling speakers deliver clear speech and full-range background music
- Pure Resonance Audio DZMA8125 8-channel digital mixer amplifier provides efficient multi-zone power and routing
- Atlas Sound WTSD-MIX31K wall input panels enable microphone, line-level, auxiliary, and Bluetooth audio connectivity per zone
- Pure Resonance Audio DZC digital zone controllers provide local volume and source control in each room
- Integrated paging capability for announcements across selected zones or the entire system
- Includes network switch and structured cabling for reliable system communication and installation
- Ideal for presentations, meetings, events, training rooms, and background music applications
About the System Components

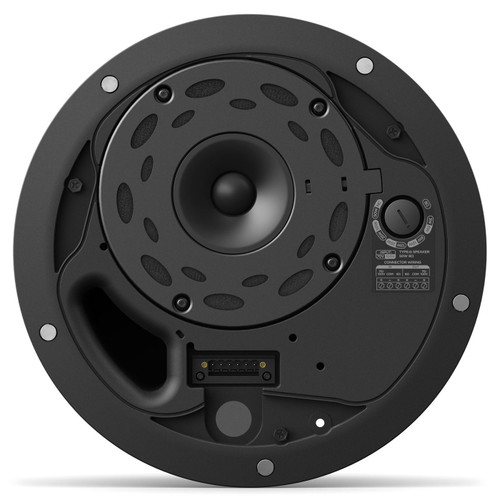

Bose Professional DesignMax DM5C Ceiling Speakers
The Bose Professional DesignMax DM5C 5.25" in-ceiling loudspeakers are designed for high-quality foreground and background audio. Each speaker features a coaxial two-way design that delivers rich lows and clear highs, making them ideal for both speech and music. With a sleek, low-profile appearance, they blend seamlessly into conference and hospitality environments while providing consistent coverage throughout the space.
Pure Resonance Audio DZMA8125 Digital Mixer Amplifier
The Pure Resonance Audio DZMA8125 is an advanced 8-channel digital mixer amplifier engineered for multi-zone commercial audio systems. It provides flexible routing, reliable power distribution, and centralized DSP-based control across multiple zones. Its compact design makes it ideal for installations requiring scalable, long-term performance in conference and hospitality environments.

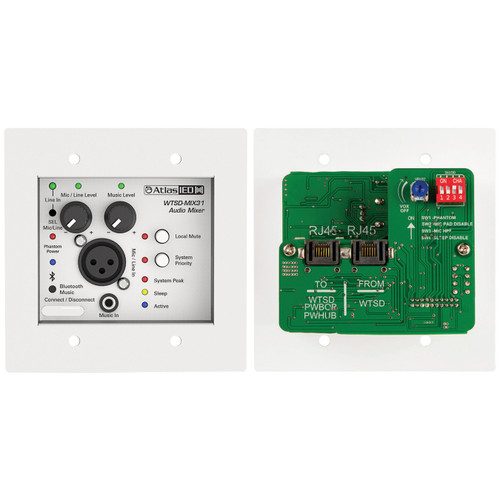

Atlas Sound WTSD-MIX31K Wall Mixer Input Panels
The Atlas Sound WTSD-MIX31K wall-mounted mixer panels provide local audio input access at the zone level. Each unit supports microphone, line-level devices, auxiliary connections, and Bluetooth streaming, allowing users to directly connect laptops, mobile devices, microphones, or presentation systems. This makes them ideal for meetings, training sessions, guest speakers, and wireless audio playback without requiring access to the main equipment rack.

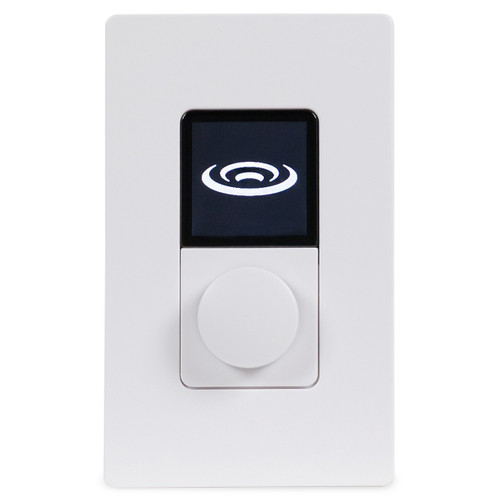

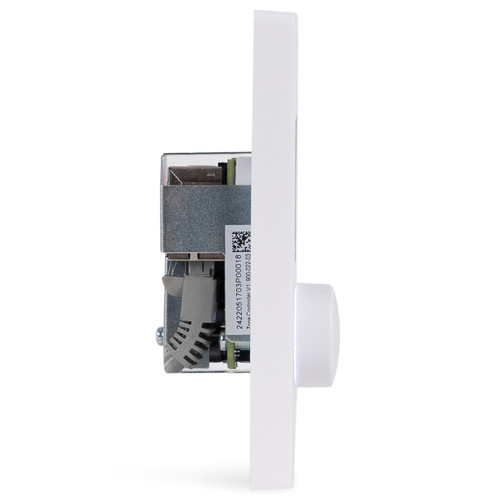

Pure Resonance Audio DZC Digital Zone Controllers
The Pure Resonance Audio DZC digital zone controllers provide intuitive, wall-mounted control for each zone. Users can independently adjust volume levels and manage assigned audio sources within their space, ensuring localized control without impacting other zones. This allows staff or occupants to quickly adapt audio levels for meetings, presentations, or background music with simple tactile control.

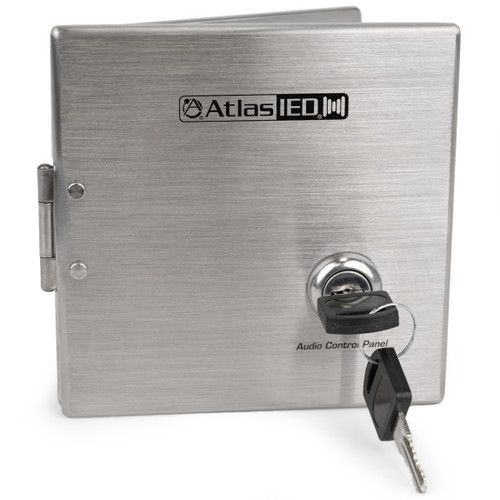

Atlas Sound WTSD-COVER Security Covers
The Atlas Sound WTSD-COVER enclosures protect the wall-mounted mixer panels from tampering or unauthorized adjustments. Designed for durability, these lockable covers are ideal for public and commercial environments where equipment security is essential.
Networking & System Control
This system includes a NETGEAR GS108LP 8-Port Gigabit Ethernet Switch with PoE+ to ensure reliable communication between all digital components. Its PoE+ capability provides efficient power delivery to compatible devices, simplifying installation and reducing the need for additional power supplies. Designed for consistent performance and stability, this switch supports seamless system control and dependable operation across all zones.
