Conference Room Sound System with Ceiling Speaker Array Rolls MA1705 Mixer Amplifier and Shure Wireless System

Part #:
CFSS-PRASD41705-SHURE
Model #:
CFSS-PRASD41705-SHURE
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

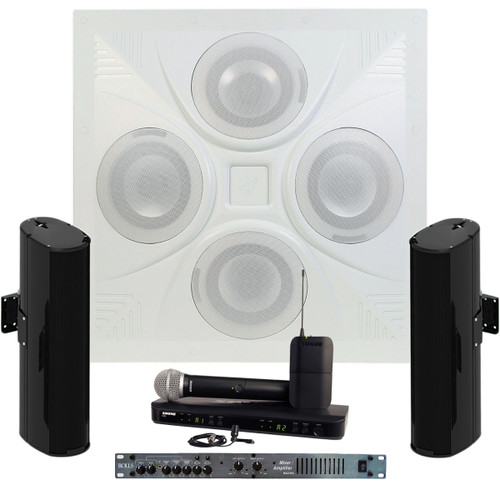

This Conference Room Sound System is the ideal room set up for Small Conference Rooms, Training Rooms, Meeting Rooms, Presentations, and Classrooms. This combo delivers truly professional performance.

Description

Conference Room Sound System

This Conference Room Sound System is the ideal conference room set up for installed sound system paging, music distribution and messaging applications. With many practical and exciting features, the Conference Room System delivers truly professional performance.

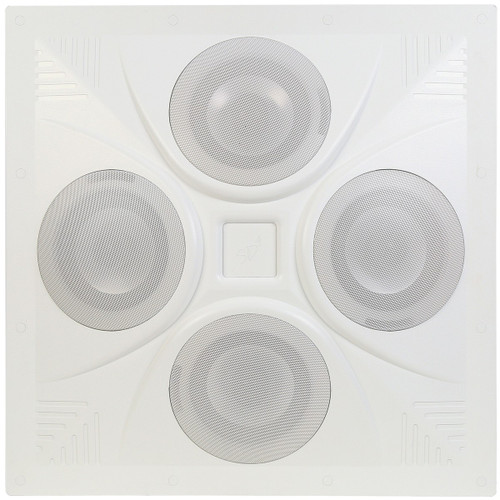

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Array

This system comes with two SD4 ceiling speakers. The SD Speaker employs (4 smaller 6.5") very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison these drivers produce clean powerful dynamic sound. When designing the SD the goal was to have the single most import feature at the forefront, good transient response ("dynamic contrast"). A transient is a sound of short duration, and good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction they provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers we increased the driver surface area while creating more punch and a tight, more focused low-end.

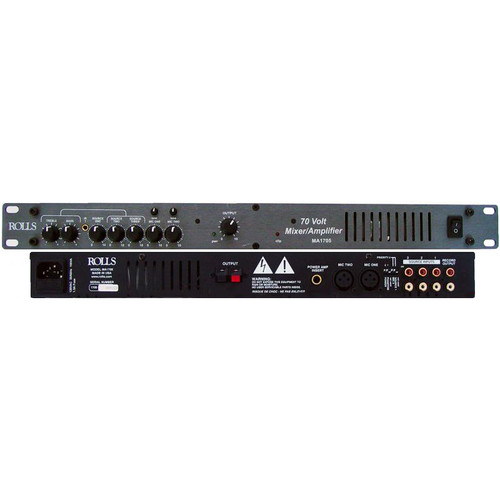

Rolls MA1705 70 Volt Mixer Amplifier

The Rolls MA1705 is a single rack space mixer amplifier that provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players and video players with up to two microphones. Priority talkover is provided on Microphone One for paging and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power and works seamlessly into the  Conference Room sound system.

Shure BLX Series Dual Channel Combo Wireless Systems

This system comes with your choice of a Shure BLX Dual Channel Wireless Microphone System. The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations. The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity.  One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.

Features

Pure Resonance Audio SD4 Ceiling Speaker Array:

  • Omni Directional Speaker Coverage 360 x 180
  • Infinite-baffle in-ceiling speaker’s drops into standard ceiling tile openings
  • 4 - 6.5” High compliance aluminum woofers with ported bass response
  • Uniquely designed fire retardant ABS housing may be painted to match any décor

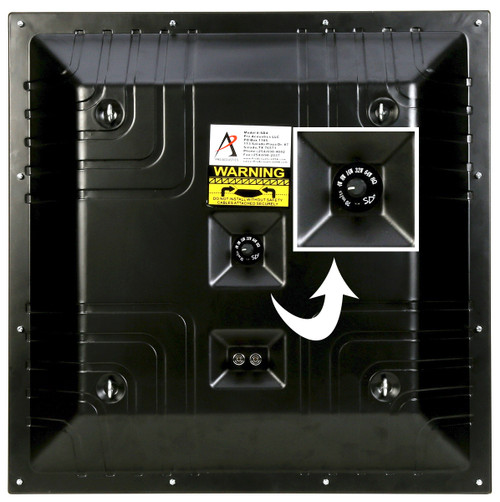

  • Easily adjustable by rotating switch
  • Metal Backbox that is engineered and sealed for maximum performance. Safety cable kit included

Rolls MA1705 Mixer Amplifier:

  • Two Microphone inputs with phantom power
  • Tone controls for each Mic input
  • Three stereo Source inputs (mixed to mono)
  • Bass and Treble controls on Sources Tow and Three
  • Priority ducking on Mic Two and Source One
  • Dual pre-master level Record Output
  • Fault protected power amp
  • Spring-loaded output terminals
  • Clip indication
  • FR4 Double-sided epoxy circuit board
  • Socketed ICs

BLX1288/PG1 Dual Channel Combo Wireless Systems:

  • Easy set up and operation
  • One-touch Quickscan frequency selection quickly locates the best open frequency
  • Legendary Shure audio and durable construction

System Includes

  • (1) Pure Resonance Audio SD4 Ceiling Speaker Array
  • (1) Rolls MA1705 Mixer Amplifier
  • Your Choice of (1) Shure Dual Channel Wireless Microphone System:

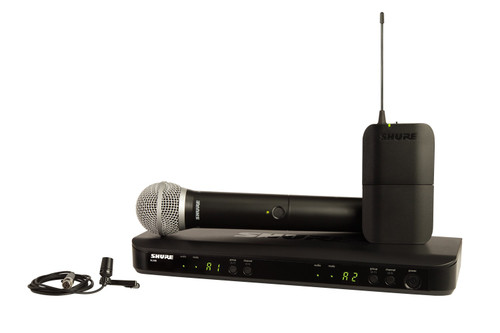

    • Shure Lavalier and Handheld Wireless Microphone System (BLX1288/CVL)

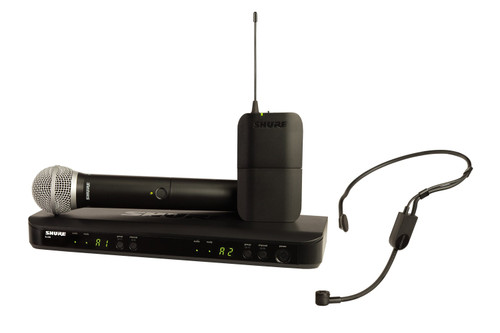

    • Shure Headworn and Handheld Wireless Microphone System (BLX1288/P31)
  • (50') West Penn 224 Speaker Cable
  • (2) CBI MLN-3 Microphone Cables
