Corporate Business Office Sound System with Speech Privacy Sound Masking and Multi-Zone Sound System Background Music Paging

Inside the Design

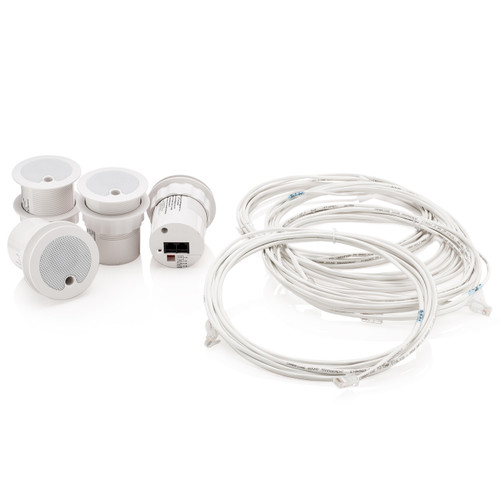

This corporate sound masking system is designed to improve speech privacy, reduce distractions, and create a more comfortable acoustic environment in modern office spaces. Open corporate offices often incorporate reflective materials such as glass and wood, which can affect workplace acoustics. This complete sound masking solution includes eight Cambridge Qt Active Emitters, a Cambridge Qt X 300 multi-zone sound masking generator and control module, power supply, power injector, and the necessary installation cables. The system supports sound masking along with paging and background music and can be expanded to accommodate additional emitters for specific application requirements.

Sound System Features:

• Complete sound masking system designed for corporate offices and open workspaces
• Eight Cambridge Qt Active Emitters provide sound masking with simultaneous paging and background music reproduction
• Cambridge Qt X 300 supports up to three independent masking zones for diverse office areas
• Designed for installations up to 36,000 square feet (3,345 m²)
• Qt Active Emitters provide higher SPL and a broader frequency range than previous direct field emitter offerings
• AVB media networking provides networked audio and control capabilities
• Two auxiliary audio inputs support paging and background music
• Independent zone adjustment allows sound masking and auxiliary audio levels and spectra to be configured for individual areas

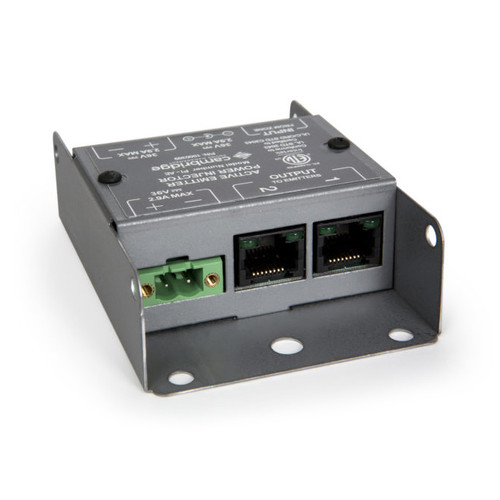

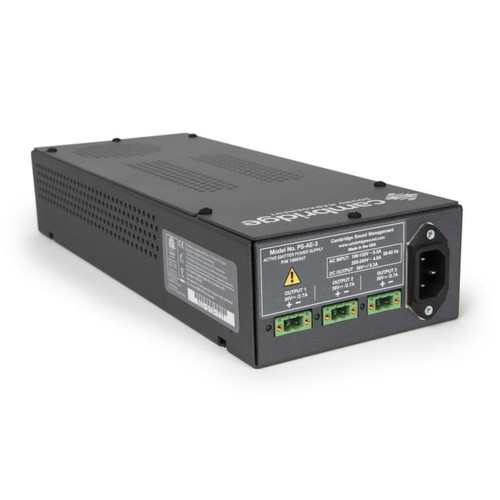

• Includes power supply, power injector, and installation cables
• System can be expanded with additional emitters to meet application requirements

About the System Components

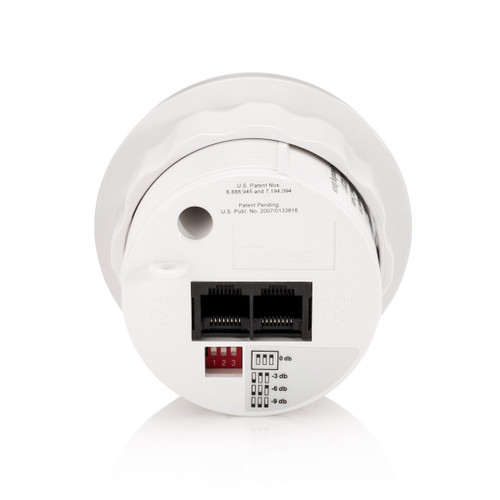

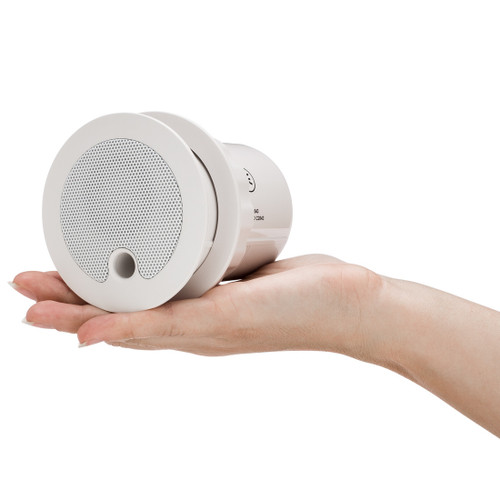

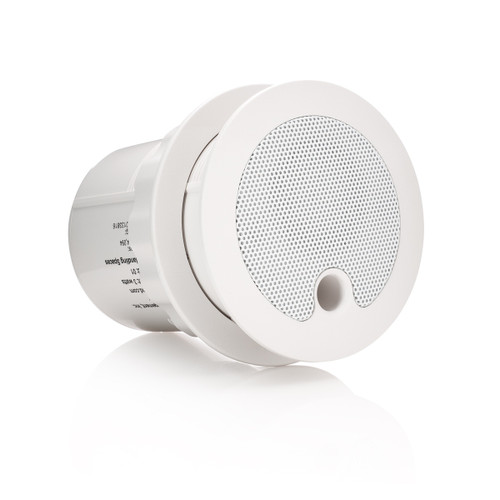

Cambridge Qt Active Emitter Sound Masking Speakers

The Cambridge Qt Active Emitter is a single-source emitter capable of providing sound masking while simultaneously reproducing clear paging and music signals. It provides higher SPL and a broader frequency range than previous direct field emitter offerings in a compact speaker designed to be virtually invisible once deployed in finished or open-structure ceilings. The Qt Active Emitter provides a flexible solution for offices requiring speech privacy, paging, and background music from the same emitter.

Cambridge Qt X 300 Sound Masking Multi-Zone Generator

The Cambridge Qt X 300 is a three-zone sound masking generator, controller, third-octave band equalizer, and amplifier designed for medium multi-zone spaces up to 36,000 square feet (3,345 m²). The system provides independent adjustment of sound masking and auxiliary audio levels and spectra across three zones. AVB media networking, two auxiliary audio inputs, and control for Qt Standard or Qt Active emitters provide a flexible solution for sound masking, paging, and background music applications.

The Qt X 300 provides front-panel control with an LCD interface, adjustable equalization, auto ramping, event scheduling, and four non-correlated masking sources per zone. Network features include dual network ports for media and control, a web interface, and third-party control capabilities through Ethernet. The system also supports fire-alarm contact closure integration and includes a built-in NTP clock for network-based time synchronization.

Benefits:

• Delivers uniform sound masking designed to support a more comfortable acoustic environment and improved speech privacy
• Provides clear paging and background music through the same Qt Active Emitters
• Supports up to three independently adjustable sound masking zones
• Provides an extended sound masking spectrum with third-octave band equalization from 100 Hz to 10 kHz
• AVB media networking supports networked audio and control applications
• Allows sound masking, paging, and background music to be integrated into one multi-zone system
• Supports both Qt Standard and Qt Active emitters
• Can accommodate additional emitters to expand coverage for larger or changing office environments
