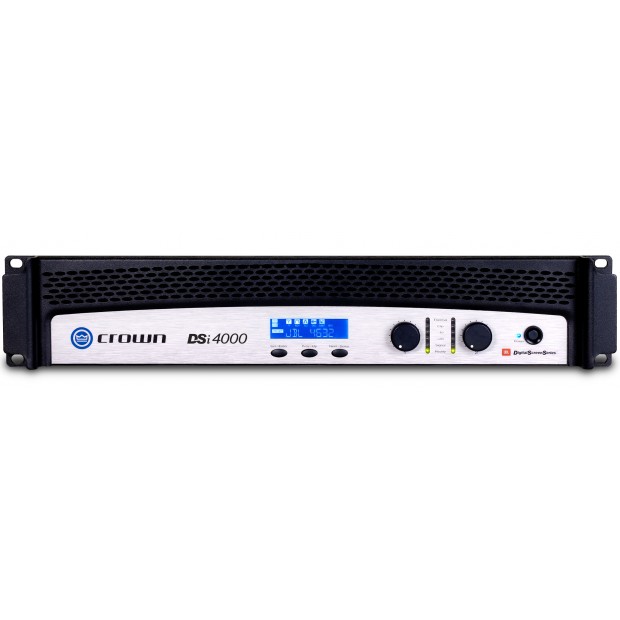

The DSi Series DSi 4000 amplifier features an automatic presets for JBL cinema speaker systems for quick, easy setup. An intuitive front panel LCD guides installers through the process of choosing loudspeaker signal processing presets and other system parameters. Digital Signal Processing includes crossover, EQ filters, delay, and output limiting. Computer connectivity via USB allows setup of the amplifier using the included HiQnet™ System Architect™ software. Rear panel HD-15 connectors provide easy input/output connectivity between the amplifiers and the DSi-8M system monitor. The system monitor provides eight channels for pre-amp and post-amp signal monitoring. All DSi amplifiers are THX® approved.
- Features
Features
- Automatic presets for popular JBL cinema speaker systems for quick, easy configuration
- Intuitive front-panel LCD screen guides installers through setup
- Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting
- Computer connectivity via USB allows fast setup and configuration with HiQnet System Architect software
- Rear-panel HD-15 connector provides easy input/output connectivity between DSi amplifiers and new DSi-8M System Monitor
- Switch-mode universal power supply
- Barrier strip outputs, removable Phoenix-style input
- Specification
Stereo, 2 ohms (per ch) 1450W Stereo, 4 ohms (per ch) 1200W Stereo, 8 ohms (per ch) 650W Bridge-Mono, 4 ohms 3000W Bridge-Mono, 8 ohms 2400W Voltage Gain at 1kHz 34.2dB Frequency Response +0dB, –1dB Sensitivity 8Ω: 1.4V
4Ω: 1.3V
2Ω: 1.0VSignal to Noise Ratio 100dB Damping Factor >500 Crosstalk >70dB Input Impedance 20kΩ balanced
10kΩ unbalancedDimensions (H x W x D) 3.5" (88.9 mm) x 19" (482.6 mm) x 12.5" (317.5 mm) Net Weight 19 lbs (8.6 kg) Shipping Weight 22 lbs (9.97 kg) - Reviews
