The Crown XLC 2800 power amplifier is a powerful yet affordable option for both the cinema and install markets.

Description

The Crown XLC2800 incorporates Crown’s proprietary DriveCore™ Technology, which significantly reduces the amplifiers’ size, while yielding much more energy efficient operation – without sacrificing performance.

Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.

Features
  • Power for 2 ohm, 4 ohm and 8 ohm outputs, supporting stereo, parallel and bridge outputs
  • Support parallel connection of cinema surround speaker
  • Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
  • Volume control on rear panel
  • Input configuration: Stereo and parallel
  • Output configuration: Stereo and bridge
  • HD-15 and phoenix connectors make the system wiring easy
  • High performance, light weight class-D amplifier

Specifications
Compatible Speakers JBL 3722(N), 4722(N), 3730, 3252(N), 4641, 4642A, 8320, 4181, 8281, 8340A, 8350, SCS8, SCS12
2 ohms 1200W
4 ohms 775W/800W
8 ohms 440W
4 ohms Bridge 2400W
8 ohms Bridge 1550W
AC Line Voltage and Frequency 100VAC 50/60Hz, 110VAC 60Hz, 220/230~240VAC 50Hz
Voltage Gain 42
Sensitivity (for full rated power at 4 ohms) 1.4V
Signal-to-Noise Ratio (ref. rated power, 8 ohms, 1kHz) >103dB
Total Harmonic Distortion (THD) (1kHz)
Damping Factor (8 ohms, 10Hz ~ 400Hz) >200
Intermodulation Distortion (IMD)
Frequency Response (1W, 20Hz ~ 20kHz) -1dB
Crosstalk (below rated 8 ohms power) At 1kHz >85dB
Crosstalk (below rated 8 ohms power) At 20kHz >55dB
Input Impedance (nominal) 20 kilohms balanced;10 kilohms unbalanced
Load Impedance 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions (H x W x D) 3.5" (88.9 mm) x 19" (482.6 mm) x 8" (203.2 mm)
Net Weight 10.4 lbs (4.72 kg)
Shipping Weight 13.2 lbs (6 kg)

Related Products

Sold Out

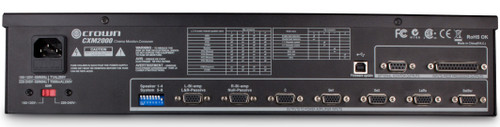

Crown CXM2000 Cinema Monitor and Crossover System (Discontinued) Crown CXM2000 Cinema Monitor and Crossover System (Discontinued)
