Powerful. Reliable. Affordable.
The XLI Series of power amplifiers from Crown® represent affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.
The four models in the series are the XLi800, XLi1500, XLi2500 and XLi3500. They are identical except for output power.

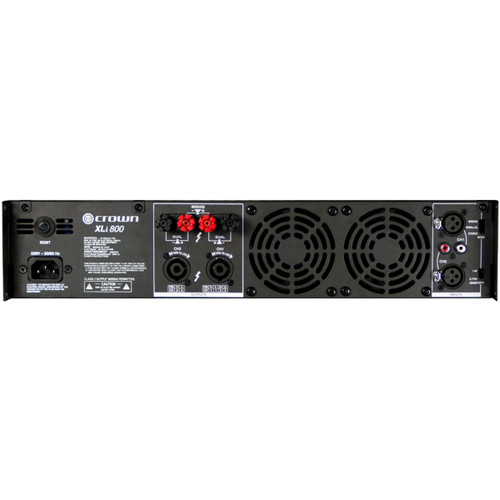

Features include RCA and XLR inputs, user-selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.
With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the affordable Crown XLI Series. They are a powerful argument for quality and value!
| Guaranteed Minimum Power | |
|---|---|
| 4 Ohm Stereo (per Channel) | 750W |
| 8 Ohm Stereo (per Channel) | 500W |
| 8 Ohm Bridge Mono | 1500W |
| Performance | |
| Frequency Response (at 1 Watt) | 20Hz - 20kHz, +0/-1dB |
| Total Harmonic Distortion (THD) | < 0.5%, 20 Hz - 20 kHz |
| Intermodulation Distortion (IMD) | =/ |
| Slew Rate | >10V/us |
| Voltage Gain | 33dB |
| Damping Factor (8 ohms), 10 Hz - 400 Hz | > 200 |
| Signal-to-Noise Ratio | (below rated power, 20 Hz to 20 kHz, A-weighted) > 100 dB |
| Crosstalk (below rated power) | At 1 kHz: –75 dB At 20 kHz: –59 dB |
| Input Sensitivity | (for full rated power at 8 ohms) 0.775V or 1.4V |
| Input Impedance (nominal) | Balanced: 20 k ohms Unbalanced: 10 k ohms |
| Connectors, Controls and Indicators | |
| Input Connectors | One balanced XLR and one unbalanced RCA per channel |
| Output Connectors (Speaker Connectors) | 4-POLE Speakon® and one pair Binding Post per channel |

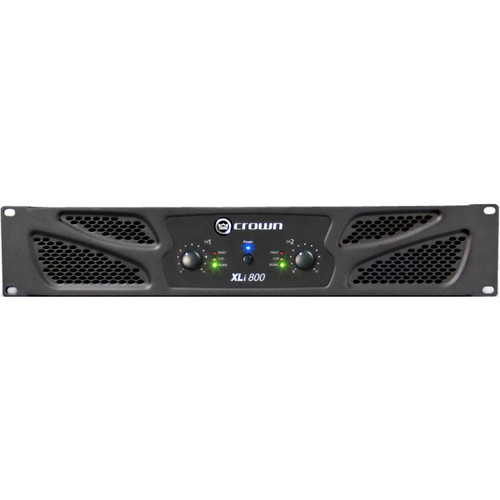

| Front Panel Controls | Power on/off switch, one gain control per channel |
| Rear Panel Controls | Output mode switch: stereo (dual), parallel or bridge Input sensitivity switch: 0.775V or 1.4V |
| Power Indicator | One blue LED |
| Signal Indicator | One green LED per channel |
| Clip (Peak) Indicator | One yellow LED per channel |
| Fault Indicator | One red LED per channel |
| Construction | |
| Protection | Protection against short circuits, no-load, on/off muting, RF interference. Stable into reactive or mismatched loads |
| Ventilation | Flow-through ventilation from front to back |
| Dimensions (H x W x D) | 3.5" (89 mm) x 19" (482 mm) x 12.4" (315 mm) |
| Net Weight | 29.7 lb (13.5 kg) |
| Shipping Weight | 34.2 lb (15.5 kg) |
