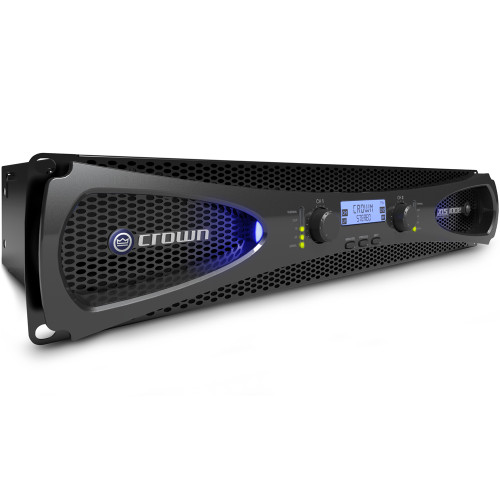

Crown XLS 1002 DriveCore 2 Series 2-Channel 215W at 8 Ohm Power Amplifier

Name: Crown XLS 1002 DriveCore 2 Series 2-Channel 215W at 8 Ohm Power Amplifier
Brand: Crown Audio
SKU: CROWN-NXLS1002-0-US
Price: 500 USD
Availability: InStock

Write a Review

Part #:

NXLS1002-0-US

Model #:

XLS1002

Current Stock:

MSRP: $625.00

$500.00

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Crown XLS1002 features a sleek look and guarantees a clean, undistorted signal straight to your speakers and delivers a powerful, pure sound experience for any venue.

Description

Crown XLS 1002 Two-Channel, 350W @ 4Ω Power Amplifier

The XLS 1002 features a sleek look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the XLS 1002 is ultra-efficient with Crown's patented DriveCore technology and can drive 1100W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Features

Class D amp with Crown's ultra-efficient DriveCore technology
Higher DSP capabilities: More control; has band pass filter per channel
Increased lighting functionality; turn off all LED indicators except clip to reduce distraction in dark venues
Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
Set sleep mode after specified time without having to press a button
Security setting disables menu buttons; menu locked/unlocked by entering combination
System reset allows factory settings to be restored
Remote power trigger
Peakx Limiters provide maximum output while protecting your speakers
XLR, 1/4", RCA inputs provide flexibility
Integrated PureBand™ Crossover System for better performance and control
Efficient forced-air fans prevent excessive thermal buildup

Specifications

2Ω Dual	550W
4Ω Dual	350W
8Ω Dual	215W
4Ω Bridged	1100W
8Ω Bridged	700W
Sensitivity	1.4Vrms
Frequency Response	+0dB, -1dB
Signal to Noise	> 97dB (at .775Vrms sensitivity, 6dB lower)
Intermodulation Distortion	< 0.3%
Damping Factor	> 200
THD	< 0.5%
Crosstalk	At 1kHz: > 85dB, At 20kHz: > 55dB
Dimensions (H x W x D)	3.5" (88.9 mm) x 19" (482.6 mm) x 7.7" (195.58 mm)
Net Weight	8.6 lbs (3.9 kg)
Shipping Weight	13.6 lbs (6.2 kg)
