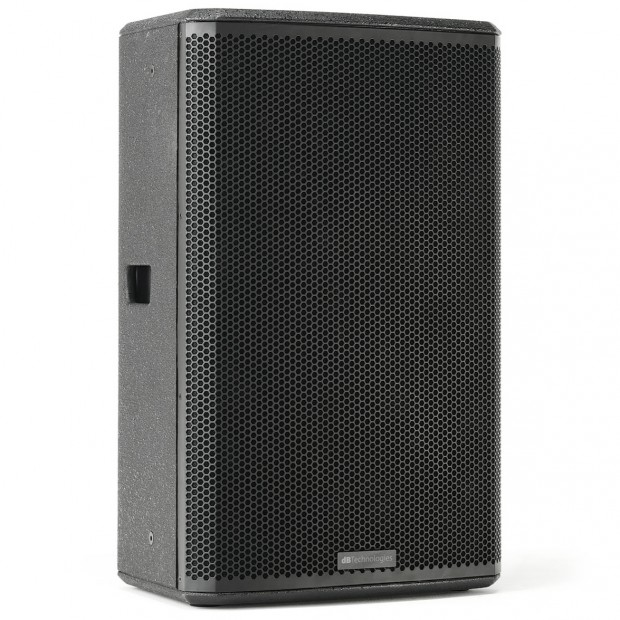

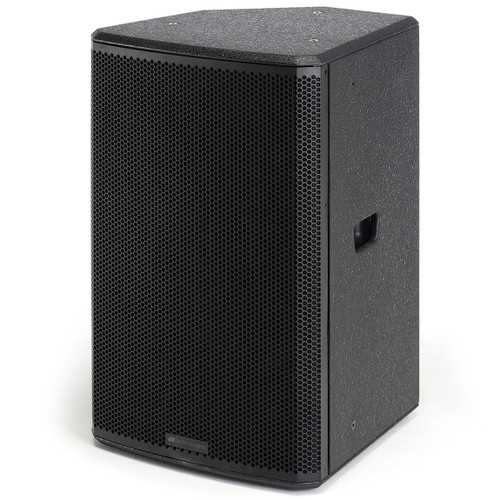

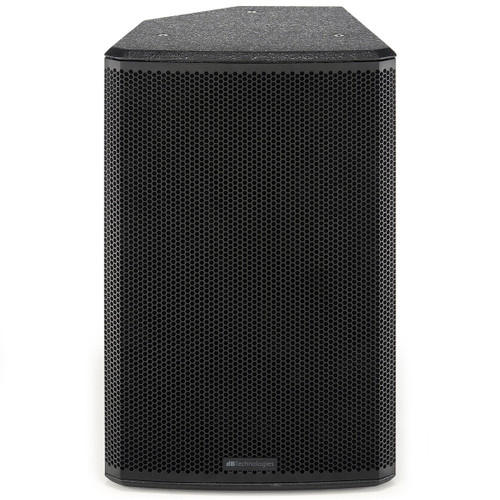

dB Technologies LVX P15 800W 15" Passive Speaker
LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance. Full range LVX P15 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP15H or vertical brackets (VB-LP1215V). The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.
All enclosures and accessories of LVX P series are available in black or white version.
| Speaker Type | 2-Way Passive Speaker |
|---|---|
| Peak Power | 800W |
| Impedance | 8 Ohms |
| Frequency Response (- 10 dB) | 58 - 21.000 Hz |
| Max SPL | 129 dB |
| LF | 15", 2.5" v.c. |
| HF | 1", 1.35" v.c. |
| Horn | Rotatable |
| Directivity | 90° x 60° |
| Signal Input | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
| Signal Output | 1x Speakon (Pin 1+=+) (Pin 1-=-) |
| Pole Mount | 36 mm |
| Angle Up | Monitor use 40° |
| Rigging Points | 12 x M8 |
| Handles | 2 (1x side) |
| Dimensions (H x W x D) | 26.77" (680 mm) x 16.53" (420 mm) x 16.92" (430 mm) |
| Weight | 43.4 lbs (19.7 kg) |
