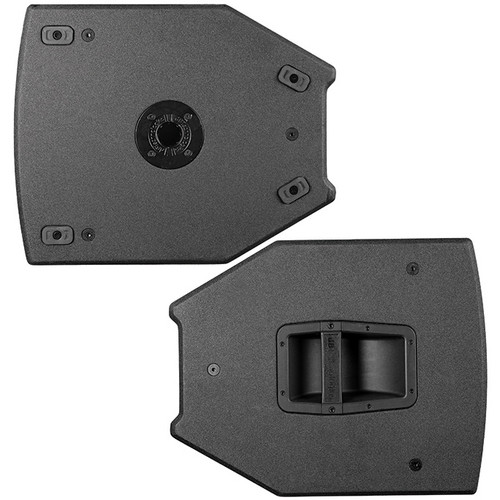

The VIO X315 is the new dB Technologies 3-way active speaker for professional use. It is equipped with: one coaxial neodymium transducer (MF voice coil: 4", HF voice coil: 2,5", HF exit: 1.4") and a 15" neodymium woofer (4" voice coil). The coverage pattern is 90° (H) x 50° (V) (5° tilted down). The horn is rotatable and the mechanical design allows an easy, accurate and quick installation for stand or flyable use. The powerful DigiPro G4 amplifier section, capable of handling up to 1400 W (RMS power), is controlled by a DSP, which can perform a detailed customization of the output sound of the speaker. In addition, the integrated RDNet connections are useful for a remote in-depth control and configuration using AURORA NET software
| Speaker Type | 3-Way Active Loudspeaker |
|---|---|
| Amplifier | Digipro® G4 1400 W RMS Class-D (4 channels) |
| Frequency Response (-6 dB) | 37 - 18.000 Hz |
| Frequency Response (-10 dB) | 34 - 19.200 Hz |
| Max SPL | 137 dB |
| LF | 15" neodymium, 4" v.c. |
| HF | 4" - 2.5" coax neodymium, 1.4" exit |
| Directivity (H x V) | 90° x 50° (5° tilted down) |
| Controls | 1x Rotary Encoder (8x EQ presets) 1x Ready LED 1x Mute/Prot LED 1x Signal LED 1x Limiter LED 1x System Test button |
| Signal Input | 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service) |
| Signal Output | 1x XLR balanced, 1 x RJ45 Link (RDNet) |
| Rigging Points | 4 |
| Dimensions (H x W x D) | 32.3" (820 mm) x 16.5" (420 mm) x 20.5" (520 mm) |
| Weight | 87.1 lbs (39.5 kg) |
