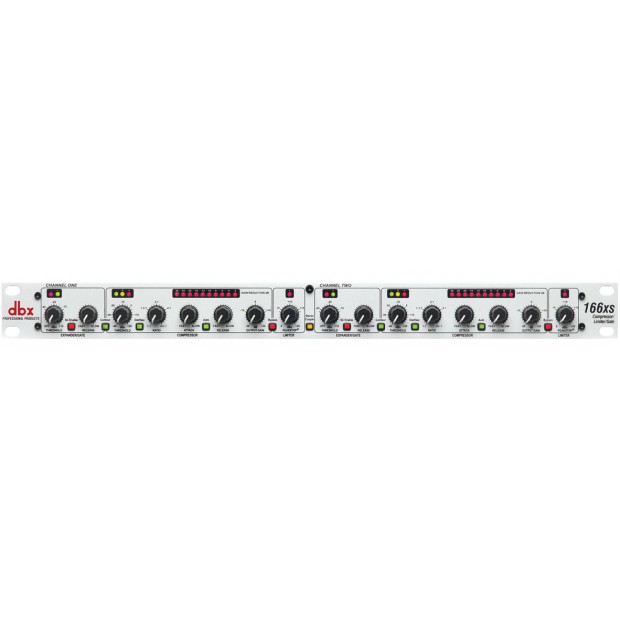

Adding a dbx® 166xs Compressor/Limiter/Gate to your live sound rig or studio gives you more dynamic control to help create a more polished, professional sound. Having compression in your audio chain gives you the ability to smooth out uneven levels, add sustain to guitars and fatten up your drums. It also makes it easy to bring vocals to the front of your mix - adding greater clarity and making them stand out from the surrounding instruments. To protect your expensive amps and speakers the PeakStop® limiter provides an absolute ceiling for peak excursions or large transients that could damage your equipment.
The 166xs is the latest in a long line of the world's most successful compressors from the inventors of the technology. Its patented Overeasy® compression technology provides smooth and musical performance while the AutoDynamic™ attack and release controls, found only on dbx compressors, puts great sound within easy reach. The 166xs can operate in stereo or dual-mono modes, has true RMS power summing and features quality XLR and 1/4" TRS inputs and outputs. It cuts no corners on visual feedback with gain reduction metering and easy-to-read backlit switches.
| Inputs | |
|---|---|
| Connector | 1/4" TRS, female XLR (pin 2 hot) |
| Type | Electronically balanced/unbalanced, RF filtered |
| Impedance | >50kΩ balanced, >25kΩ unbalanced |
| Maximum Level | >+24dBu, Balanced or Unbalanced |
| Outputs | |
| Connector | 1/4" TRS, female XLR (pin 2 hot) |
| Type | Electronically balanced/unbalanced, RF filtered |
| Impedance | 120Ω balanced, >60Ω unbalanced |
| Maximum Level | >+21dBu balanced/unbalanced into 2kΩ or greater >+18dBm balanced/unbalanced (into 600Ω) |
| Sidechain Insert | |
| Connector | 1/4" TRS Phone, Normalled: Ring = Output (send); Tip = Input (return) |
| Impedance | Tip = >10kΩ (Input), Ring = 2kΩ (Output) |
| Maximum Level | >+20dBu (tip/input); >+20dBu (ring/output) |
| Threshold Range | -40dBu to +20dBu |
| Expander/Gate | |
| Threshold Range | OFF to +15dBu |
| Expansion Ratio | 10:1 |
| Maximum Depth | >60dB |
| Threshold Range | 0dBu to +20dBu |
| System | |
| Frequency Response | 20Hz - 20kHz; +0/-0.5dB, Typical 3dB points are 0.35Hz and 110kHz, unity gain |
| Noise | |
| THD + N | Typically |
| SMPTE IMD | Typically |
| Dynamic Range | >115 dB, unweighted |
| Interchannel Crosstalk | |
| CMRR | >40dB, typically >55dB at 1kHz |
| Stereo Coupling | True RMS Power Summing™ |
| Power | |
| Power Consumption | 15W Maximum |
| Operating Voltage | 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19" (482.6 mm) x 6.75" (171.45 mm) |
| Net Weight | 5.05 lbs (2.29 kg) |
| Shipping Weight | 7.20 lbs (3.27 kg) |
