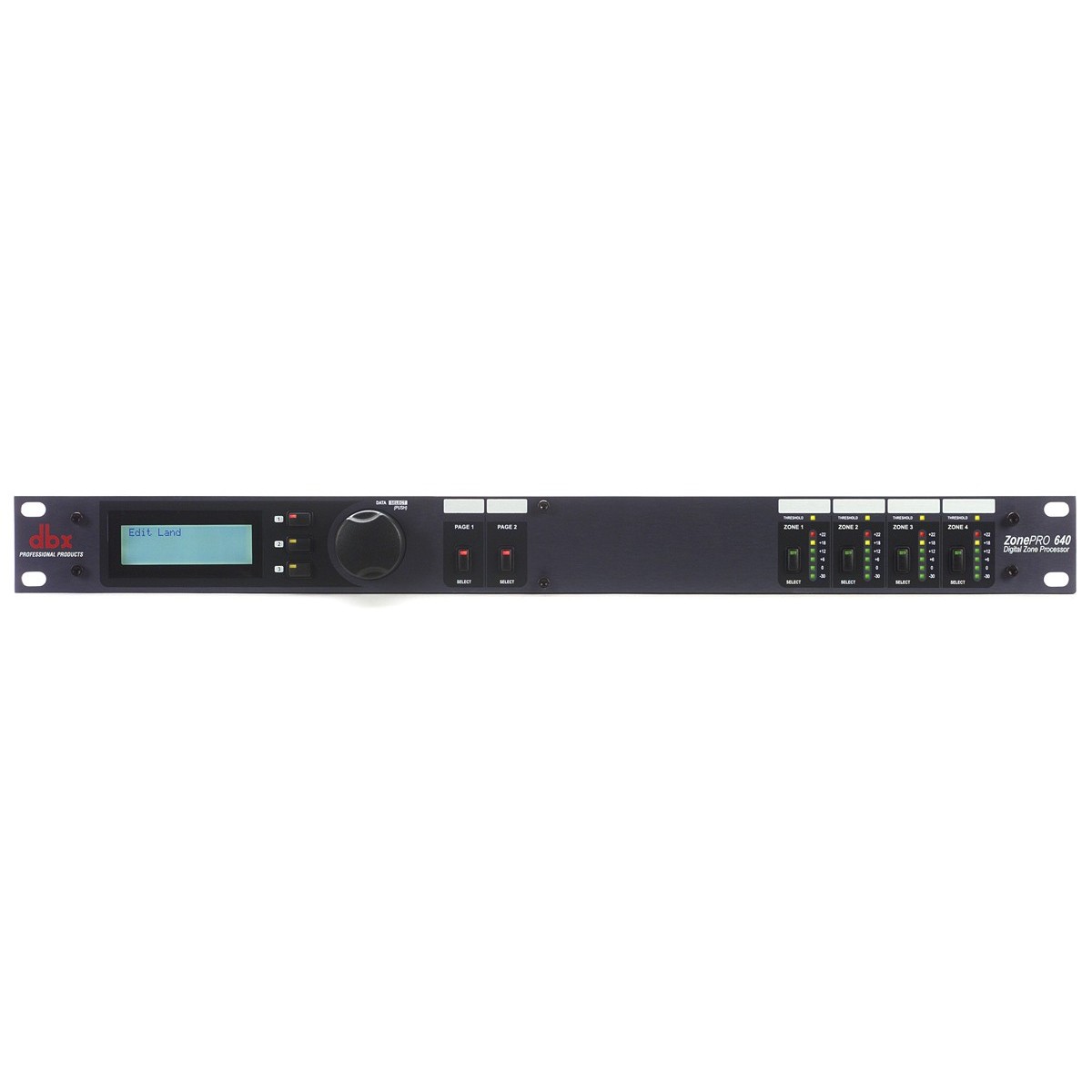

DBX ZonePro 640 Digital Zone Processor
DBX ZonePro 640 Digital Zone Processor

By DBX Pro Audio

DBX ZonePro 640 Digital Zone Processor

Write a Review
Part #:
DBX640V
Model #:
640
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The DBX ZonePro 640 provides flexible signal routing, powerful DSP processing and multiple control interfaces for Commercial Audio applications

Description
Designed to offer superior system sonic performance and flexibility, the 640/641 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 640 and 641 provide every necessary processing tool, from the input processing like gain control and EQ available on all inputs to highly sophisticated and specific functions such as selectable paging microphone processing including Gating, De-Essing, Auto Gain Control, Compression and Feedback Suppression. The heart of the ZonePRO products is the Routing module that provides of course Primary Source Selection but also Source Ducking for Paging and Priority Override. The outputs also offer a wealth of processing designed for commercial applications like our patent-pending AutoWarmth function that was co-developed with JBL to provide natural low frequency extension at any signal level. Each output also offers EQ, Bandpass and Crossover filters, Limiting and Delay for system optimization. With the ZonePRO every tool is at your disposal to maximize the response of your system.

Beyond processing, the ZonePRO products offer multiple forms of control to further extend the versatility of your system. From easy-to-use wall panel Zone Controllers for standard end-user functions like source select and volume control to advanced system control including a built-in Real Time Clock that can provide programmable system changes throughout the day or week. For system setup and monitoring the ZonePRO Designer software provides an intuitive interface and a speedy setup Wizard for configuring and editing all system parameters.

Features
  • Advanced Feedback Suppression (AFS™)
  • Autowarmth
  • Auto Gain Control
  • Compression
  • Limiting
  • Noise Gating
  • Notch Filtering
  • Bandpass and Crossover Filters
  • Parametric EQ
  • Security Lockout

Specifications
Input (6 total) (2) Switchable line or mic inputs (4) RCA Source
Input Connectors Euroblock (Line and Mic) RCA (Source)
Input Type Electronically balanced/RF-filtered
Input Impedance 50k ohm balanced, >75k ohm unbalanced
Max Input +20dBu Mic/Line, +12dBu RCA
CMRR >40dB, typically >55dB @ 1 kHz
Mic Preamp gain 30 to 60dB
Mic Preamp Equivalent Input Noise (EIN)
Mic Preamp Phantom Power 15V
Output 4 total
Output Connectors Euroblock
Output Type Electronically Balanced, RF Filtered
Output Impedance 120 ohms balanced, 60ohm unbalanced
Max Output +20dBu
A/D Converter dbx Type IV™ conversion system
A/D Dynamic Range (line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Digital Output RCA 24-Bit oversampling
Digital Output Dynamic Range >114 dB A-weighted, 110dB unweighted
Sample Rate 48kHz
D/A Dynamic Range 112 dB A-weighted, 109dB unweighted
Dynamic Range >109 dB A-weighted, >106 dB unweighted
THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response 20Hz - 20kHz, +/-0.5dB
Interchannel Crosstalk >80dB typical
Propagation Delay 0.6 msec
Operating Voltage 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption 29 W
Safety Agency Certifications UL 600065, IEC 60065, EN 55013, E60065
Dimensions (H x W x D) 1.75" (45 mm) x 5.75" (146 mm) x 19" (483 mm)
Weight 6.8 lbs (3.1 kg)
Shipping Weight 8.8 lbs (4 kg)
