Denon Professional DN-700C Broadcast-Quality Network CD and Media Player

The DN-700C is designed to be fully functional as a broadcast/professional installation quality network CD and media player with the option of multiple audio sources.

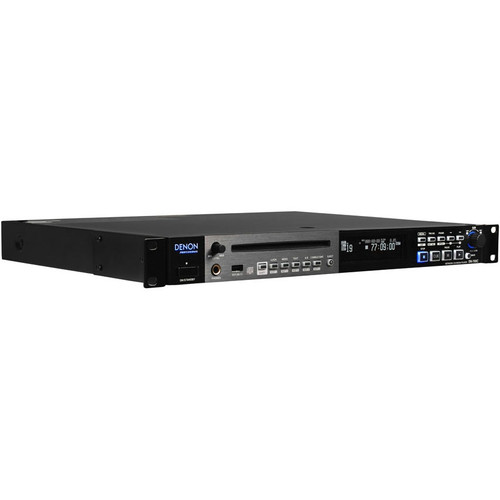

Housed in a 1RU rack-mountable chassis, the DN-700C Network Media / CD Player's core features are focused on true audio source versatility and immediate access to pro performance and high-quality audio at the touch of a button. Complete with a front USB port for mass storage devices and iPod® playback offers connectivity to the latest sources of music files including .wav, .mp3, .wma, .aiff, .m4a & .aac, as well as a slot-loading CD mechanism for playback of mp3 CDs and CD-DA (.cda).

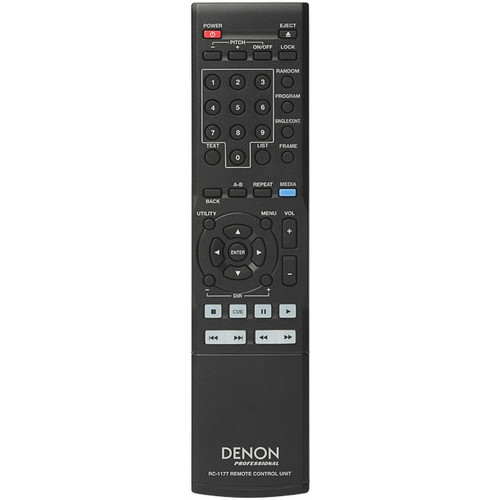

The DN-700C can be controlled using a variety of remote control interfaces for varying install and broadcast situations. From IR remote control, parallel (GPIO), RS-232c serial control and even control via a network with the built–in Web-GUI. This improved web-based interface allows a user full control of the DN-700C, from setup menus to transport control and even hot start playback– even from mobile browsers. This provides complete access to a player located in remote areas or when the installation is not always easily accessible.

The front panel is designed for convenient use in professional installation and broadcast environments where ease of access to the audio source and transport controls is imperative, and further includes; five front panel hot start buttons that provide direct access to specific audio files, cue to audio, program playback and a bright OLED display with 'end monitor' and 'finish mode' features to signal the end of the audio track.

Denon Professional's Product Manager Software is included with the DN-700C for single point control of multiple players from a PC/Mac over the network. Complete with full access to the Web Remote as well as unique power on/off capabilities that allow power on and power off sequences to be programmed remotely for single units or multiple units in groups.

Features

Features

Streams audio over the network (DLNA)
Supports playback of CD-DA, WAV, AIFF, MP3 & AAC files
USB device (mass storage class) and iPod playback
Large, bright OLED display
Balanced XLR audio output
AES/EBU digital format output
Supports external control operation via IP Control (Ethernet), RS-232c, GPIO, and IR
Extended control via Ethernet using its improved web-GUI ‘Web Remote’ and/or included DENON Professional Product Manager software (PC/Mac)
20 Hot Starts
Supports the Denon Professional Pitch Control App (available from the App Store™)
Pitch control playback allows adjustment of the playback speed between -16% to +16% in 0.1% steps
End Monitor and User-selectable Finish Mode features
1RU/1HE Rackmount Size
Detachable, IEC-weighted AC inlet

Specification

Digital Audio System
System	Network CD / Media Player
Compatible Media	CD Media, USB flash memory, USB HDD, iPod
Playable Formats, File Systems	CD: CD-DA (CD Text), CD-ROM (ISO9660)USB: FAT16 / FAT32 / HFS+
Playable WAV Format
Extension	WAV, AIFF, AIF
Resolution	16 / 24–bit
Sampling Frequency	96, 48, 44.1kHz
Playable MP3 Format
Extension	MP3
Bit Rate	32–320kbps, VBR
Sampling Frequency	48, 44.1kHz
Playable AAC Format
Extension	M4A, AAC
Compression Method	AAC-LC
Bit Rate	64–320kbps, VBR
Sampling Frequency	48, 44.1kHz
Number of Channels	2 (stereo), 1 (mono)
Audio Frequency Characteristics	20 Hz – 20 kHz (+0.5dB)
S/N Ratio	More than 105dB (A-Weighted)
Total Harmonic Distortion	Less than 0.005%
Dynamic Range	More than 105dB (for 24–bit WAV playback)
Channel Separation	Less than –106dB
Variable Pitch Width	–16% - +16%
Variable Trim Adjustment Width	+2.0dB
Environmental Conditions
Operational Temperature	5 to 35°C (41 to 95°F)
Operational Humidity	25 to 85% (no condensation)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Output	0dBu=0.775Vrms, 0dBV=1.0Vrms
Balanced Analog Out L/R
Type	XLR(1:GND, 2:HOT, 3:Cold)
Load Impedance	Over 600Ω/ohms
Output Level	8.23 dBu (Max. 24 dBu)/ at 600 Ω/ohms load
Unbalanced Analog Out L/R
Type	RCA terminal
Load Impedance	Over 10kΩ /kohms
Output Level	2 Vrms (Max 10dBV)/ at 10kΩ/kohms load
Balanced Digital Out
Type	XLR(1:GND, 2:HOT, 3:Cold)
Output Impedance	110Ω/ohms
Standard Output Level	3.5 Vp–p
Format	IEC–60958 (AES/EBU)
Unbalanced Digital Output
Type	RCA terminal
Output Impedance	75Ω/ohms
Standard Output Level	0.5 Vp–p
Format	IEC–60958 (Coaxial)
Headphone Output	20 mW / 32Ω/ohms
Maximum Storage Capacity	Up to 2 TB
Maximum File Size	4 GB
General
Power Supply	AC 120V, 60Hz
Power Consumption	30W, 0.4W (standby)
Dimensions (H x W x D) (with rack ears)	1.73" (44 mm) x 19" (483 mm) x 12.78" (325 mm)
Weight	9.04 lbs (4.1 kg)
