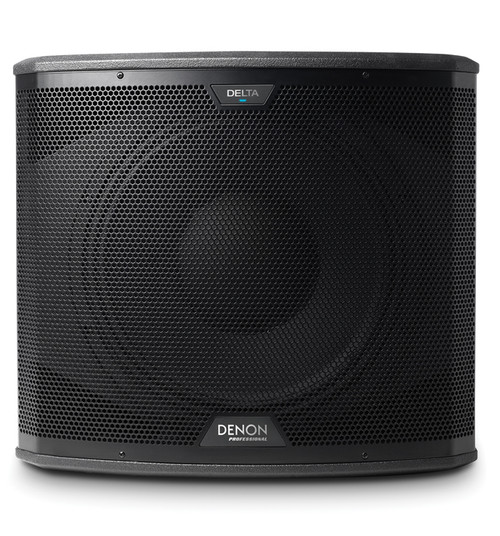

Denon Professional Delta 15 Sub 15" 2400W Powered Subwoofer with Wireless Connectivity (Discontinued)

Part # Delta 15S
Model # Delta 15 Sub

The Denon Delta 15 Sub 15" 2400-watt powered subwoofer is designed to add the deep, solid bass foundation needed for convincing, lifelike music and multimedia presentations.

Description

Details

For situations that demand the ultimate in speaker performance, Denon Professional proudly offers the Delta Series—a family of powered loudspeakers that delivers the very highest level of acoustic performance, essential for critical musical productions, dynamic AV playback and clear, articulate spoken presentations. The Delta Series was designed from a clean sheet of paper to exacting performance standards, using custom-developed, purpose-matched components.

The Delta 15 Sub powered subwoofer is designed to add the deep, solid bass foundation needed for convincing, lifelike music and multimedia presentations. It features an integral low-distortion Class D amplifier capable of 2400 watts peak output (1200 watts continuous), a rugged 15-inch LF transducer, DSP-controlled custom crossovers, EQ contour switch and a computer-designed vented enclosure for optimum low-frequency response at high SPLs with minimal distortion. The Delta 15 Sub has extremely flexible connection/control facilities for adapting to any usage condition. Plus, it utilizes dynamic thermal protection, to ensure reliable, crystal-clear bass reproduction— even at extreme volume levels.

However, it’s not the printed specifications or the number of inputs and outputs that qualifies the Delta 15 Sub as such an elite performer. It’s the performance. The quality and depth of the bass is effortless, powerful and natural. There is no sense of strain or distortion. With lesser subwoofers, the listener can immediately hear the “reproduced” nature of the bass: the thin, lightweight character to the sound, the lack of ‘weight’ that should be more felt than heard. This is what betrays the sound of an inaccurate subwoofer.

When you hear the Delta 15 Sub as part of a full Delta sound system, it sounds stunning. The full frequency range is conveyed with absolute authority, providing convincing, realistic sound from any genre of music. Bass instruments are full and muscular. Vocals are supported with while drums and percussion have great impact and impressive weight. Even today’s complex, multi-layer music is reproduced with agility and nuance at any volume, from subtle indoor settings to full-volume outdoor concerts.

Denon Professional recognizes that adaptability and connection flexibility are just as important to a successful event as outstanding sonic performance. Therefore, the Delta series features a built-in mixer with multiple inputs and outputs. The cabinets are scratch-resistant, fronted with a powder-coated metal grille—perfect for anything from vocal reinforcement in a lecture hall to music-rich multimedia presentations in convention. Even their rubber feet are reinforced with steel. You can hang the Delta series via their integrated M10 rigging points or use the “tops” as floor wedge monitors. The Delta 15 Sub features a built-in industry-standard 35mm pole sockets. This level of connection and mounting options means that virtually every situation benefits from using Delta Series loudspeakers.

Even if you can’t physically reach the speakers, you can still adjust them with your iPad or iPhone uing the Drive iOS app. With our wireless technology, you can precisely tailor the performance parameters of your Delta Series loudspeakers remotely. Level-match, adjust EQ, delay-compensation and more—from virtually anywhere. It’s streamlined, sound-shaping control at your fingertips, so you can easily adapt the Delta Series to new venues or performances, even if you’re away from the mix position.

Features

Features

  • Unrivaled acoustic accuracy via advanced engineering and design
  • 2400 watts peak Class D power (1200 Watts continuous)
  • 15" LF transducer delivers powerful sound
  • Computer-designed vented enclosure for optimum bass response
  • Works with free Denon Drive app for wireless sound-shaping control
  • Wirelessly level-match, EQ, delay-compensation, and more
  • DSP-controlled, custom crossover and active thermal protection
  • Built-in mixer, (2) Mic/Line inputs, volume control, XLR output
  • Limit/Clip indicator with red LED
  • Built-in 35mm pole socket
  • EQ contour switch; Ground Lift switch
  • Flyable via (12) M10 rigging points
  • Designed and tuned in the U.S.A
Specification
System Configuration
System Type15-inch bass reflex, direct radiating, subwoofer
Acoustic Performance
Frequency Range(-10dB): 31Hz–160Hz
Frequency Response(+/-3dB): 33Hz–140Hz
Maximum Peak SPL (Measured)132dB @ 1m
Power Amplification
Peak Power2400 watts
Continuous Power1200 watts
Amplifier TopologyClass D / Switching
Amplifier CoolingPassive
Transducer
LF Transducer15-inch (381mm) ultra-high excursion cone transducer, 4-inch (101mm) voice coil, ferrite magnet
DSP Functionality
System Controlhigh-pass & low-pass crossover filters, transducer EQ and time alignment, transducer excursion, thermal, and amplifier clip protection
User ControlsRear panel selection of 5 DSP low-pass modes: (80 Hz, 100 Hz, 120 Hz, 140 Hz, User) Polarity reverse enable/ disable XLR out high-pass filter bypass enable/disable
Wireless Control and Monitoring
Wireless TypeBluetooth 2.0 + EDR. Class 2 RF
Wireless Range (typical)82 ft. (25m) clear line-of-sight
Wireless Control AppLive Drive™ (app by Alto Professional, available on the App Store
Simultaneous Devices Connectable1 to 3 Delta series loudspeakers
Compatible Wireless DevicesiPhone 3GS and newer, iPad 2 and newer, iPod touch (4th generation) and newer
iOS Version RequirementsiOS 6.1 and newer
Wireless Control FeaturesLevel Control (-∞ to + 10dB), Mute, Signal level metering (-70 to 0dB) DSP Low pass mode (80 Hz, 100 Hz, 120 Hz, 140 Hz, User) Rear Panel control lockout, Bass-Tilt EQ, Delay, Polarity, User low-pass filter, Monitoring (Limit, Peak, Fault)
AC Line Power
Power Supply DesignFully regulated switching, with Power Factor Correction
Input Voltage Nominal Range100–240 VAC, 50/60 Hz
Input Voltage Operating Range90–264 VAC, 50/60 Hz
Voltage SelectionAutomatic (self-regulating)
Power ConnectorMale IEC
Current Requirement6A per system @ 120 VAC. 3A per system @ 240 VAC
AC Line Cord9.8 ft. (3m) IEC female to regional AC male, 18 AWG
Connectors and Controls
Input Connectors2 x XLR/TRS combo connectors, balanced
Input Impedance10 KΩ balanced, 20 KΩ unbalanced
Input Level ControlsRotary volume control to control subwoofer level
Acoustic PolarityPositive voltage applied to XLR Pin 2 generates positive pressure from LF driver. Reversable via rear panel switch
Output Connector2 x male XLR, with loop-through high-pass filter bypass filter bypass via by rear panel switch
Output Mix ControlSwitch to select output mix pre or post- volume control
Ground SwitchPush-button to lift input signal input ground connection
BluetoothMomentary contact to initiate Bluetooth pairing mode DSP Mode Selection: Momentary contact to cycle through DSP EQ modes
DSP Modes Available5 total: 80 Hz, 100 Hz, 120 Hz, 140 Hz, User
DSP Wireless ControlLive Drive™
Grille Logo LED On/Off ControlRecessed push-button switch
Standby mode On/Off ControlRecessed push-button switch
LED IndicatorsSignal Present / Limit, Power / Standby
Line Input Level Control Range-∞ to +10dB, detented at 0dB, +4dBu nominal input level, +10dBu input level for max output
Enclosure
Construction15mm and 18mm premium plywood
FinishHigh-durability textured catalyzed polyurethane
Mounting12 x M10 female threaded screw sockets
Handles2 x ergonomic handles with aluminum cross-bar
Stand Mount1 x 35mm female socket
Grille1.2mm-thick perforated steel, black powder-coat
Operating Temperature-10°C to 40°C (14°F to 104°F)
Dimensions (H x W x D)18" (458 mm) x 20.2" (513 mm) x 25.1" (638 mm)
Weight94.1 lbs (42.8 kg)
