Denon Professional DN-108S 8" Commercial In-Ceiling Speaker Fire-Resistance (EN 54-24)
Denon Professional’s range of ceiling loudspeakers is designed to deliver exceptionally accurate, articulate sound while easily meeting commercial requirements for fire-resistance and suitability for multiple unit installation.

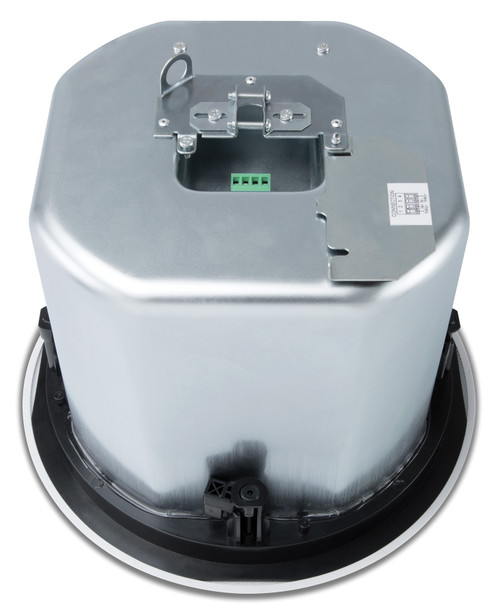

The DN-108S features a metal "can" rear enclosure, which provides a fire barrier behind the speaker to meet commercial fire codes. It also serves as the woofer’s enclosure to optimize its bass tuning and low frequency response. The speakers have 70/100V transformers to facilitate multiple unit installations without the impedance and level-matching concerns of paralleled transformerless speakers.
There are three different size models with 4", 6.5" and 8" woofers. All three utilize high quality drive units in tuned reflex enclosures and precision electronic crossovers to deliver clean, detailed sound, perfect for music, public address applications and business/educational presentations, while meeting all safety and fire codes as required by commercial venues.- Features
Features
- 8" long-excursion woofers
- 20mm wide dispersion dome tweeter
- Driver Power: 80W (RMS) 160W (Peak)
- 70/100V transformers for multi-unit installations
- Metal rear enclosures meet commercial fire codes
- Frequency response: 45 - 20kHz

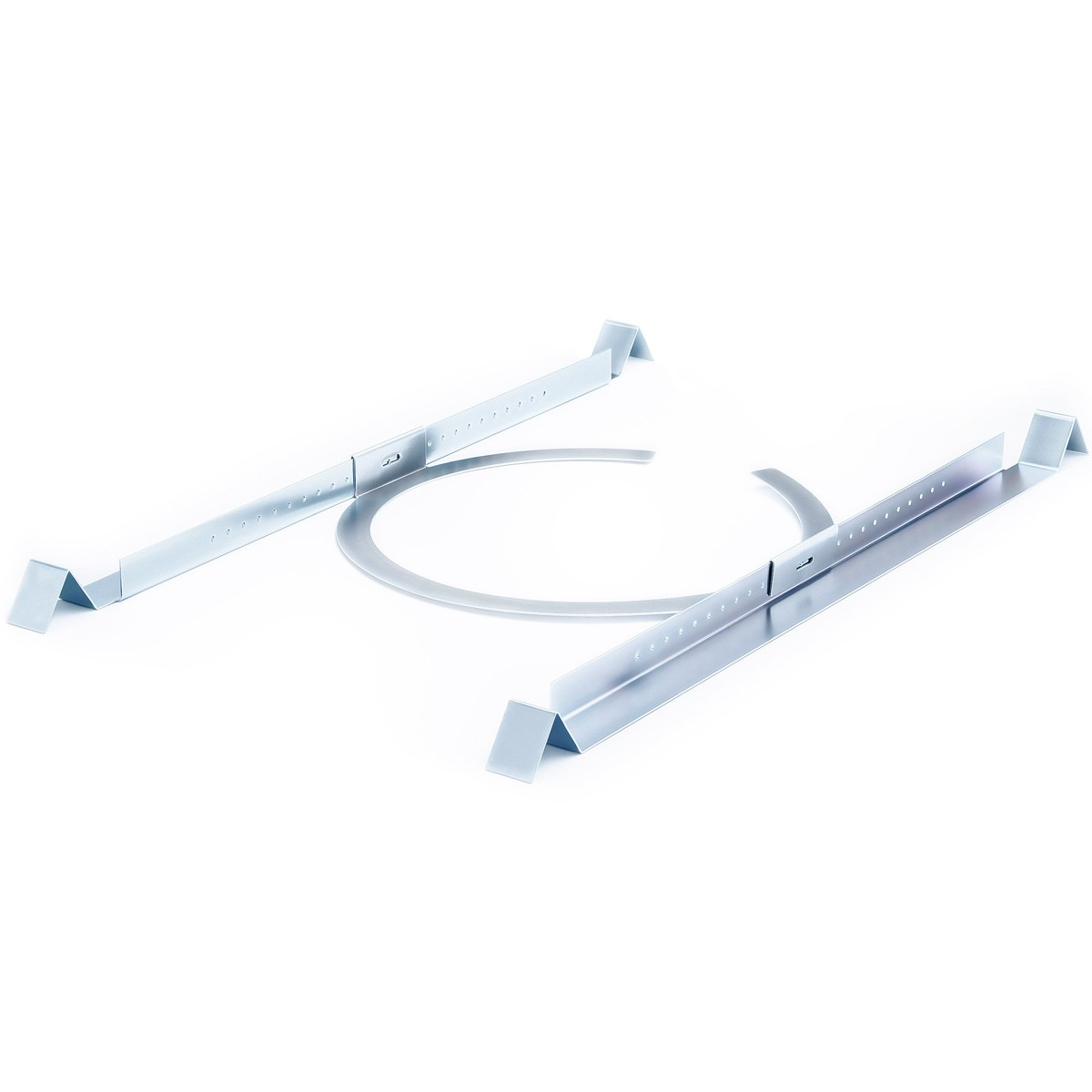

- Mounting Bracket Included
- Specification
LF Driver 8" (210 mm) long-excursion woofer HF Driver 3/4" (20 mm) wide dispersion tweeter Frequency Response 45 Hz - 20 kHz Driver Power 80W (RMS) and 160W (Peak) Sensitivity 90dB (1W/1m) Power Tappings 70/100V transformers for multi-unit installations 70V 80W
40W
20W
10W
Impedance: 16 Ohms100V 80W
40W
20W
Impedance: 16 OhmsCutout Hole Diameter 10.75" (273mm) In-Ceiling Clearance Height 8.75" (222mm) Mounting Bracket Weight 1.54 lbs (0.70 kg) Speaker Weight 12.35 lbs (5.60 kg) - Documents
Documents
- In The Box
In The Box
- (1) DN-108S Speaker
- (1) Mounting Bracket
- (1) Speaker Grill
- (4) Screws
- (4) Washers
- (1) 4-Pin Euroblock Connector
- User Guide
- Safety/ Warranty Manual
