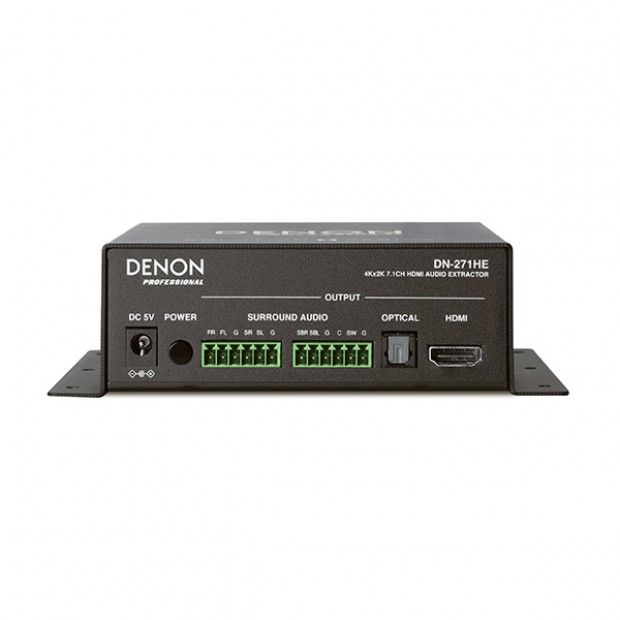

Denon Professional DN-271HE Solution Series HDMI Audio Extractor with 7.1 Channel Audio Outputs

Home /
Denon Professional DN-271HE Solution Series HDMI Audio Extractor with 7.1 Channel Audio Outputs (Discontinued)

Description

Details

The DN-271HE is an audio extractor that essentially isolates the encoded audio content from HDMI so it can be routed separately — for example, to a mixer or sound reinforcement system. With support for ultra-high definition signals, the DN-271HE enhances the flexibility of any display-plus-speakers system up to 4K2K video with 192kHz audio. Unique audio outputs are available on line level Euroblock connections, making it simple for integrators to incorporate the DN-271HE into space-challenged installations in series with other components. The DN-271HE supports CEC bypass for uninterrupted use with A/V equipment.

Features

Features

Separates audio signals from digitally encoded content
HDMI and Optical audio input
Line level Euroblock connectors
Supports HDMI and Optical audio sampling rates up to 192kHz
4K2K ready; works with current and next generation UHD signals
EDID switching between 7.1 channel LPCM, Bitstream, and TV (external)
CEC bypass ensures seamless operation with other A/V components

Specification

Video Bandwidth	Video Bandwidth (1080p & 4k x 2k resolutions)
Sampling Rates	Up to 192 kHz
Connections	1 HDMI input 1 HDMI output 1 mini-USB input (for service purposes only) 1 optical output 4 3-pin Euroblock outputs
HDMI Cable Distance	32.8 ft. (10 m): 1080p, 8-bit 32.8 ft. (10 m): 1080p, 12-bit 16.4 ft. (5 m): 4K x 2K
Operation Temperature	32–104°F / 0–40°C
Power Power Adapter	5 V DC, 2.6 A, center-positive Input Voltage: 100–240 V AC, 50/60 Hz Power Consumption: 2.39 W
Dimensions (H x W x D)	1.9" (49 mm) x 5.9" (149 mm) x 4.9" (124 mm)
Weight	1.3 lbs (0.6 kg)
