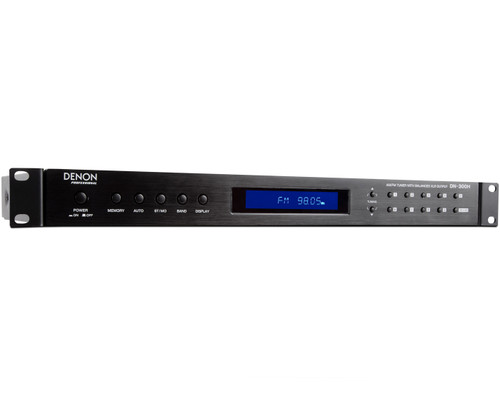

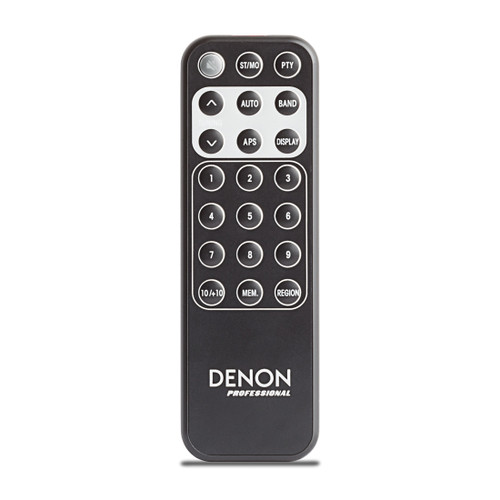

The DN-300H is full-featured AM/FM digital tuner with options such as Program Type Search - enabling the user to search for broadcast types like News, Weather, Sports, Music genres, Arts & Culture and Science. Tuning is automatic or manual and the user can store up to 20 favorite station presets including RDS broadcasts. Balanced and unbalanced audio outputs make it easy to integrate into any installation, and there is a USB port for firmware updates. The display brightness is adjustable, and the operation can be switched from stereo to mono. An IR remote is included.
| FM Section | |
|---|---|
| FM Frequency Range | 87.5 MHz - 108 MHz |
| FM Step Frequency | 50kHz |
| Sensitivity (S/N = 30dB) | |
| Signal to Noise Ratio | Mono: >70dB Stereo: >65dB |
| Distortion | Mono: < 0.3% Stereo: < 0.3% |
| Stereo Separation @ 1kHz | >35dB |
| Frequency Response | 20 - 14kHz (± 3dB) |
| Output Voltage | 500mV / 2.2 kΩ |
| ANT Input Impedance | 75 Ω |
| AM Section | |
| AM Frequency Range | 520 kHz - 1710 kHz |
| AM Step Frequency | 10kHz |
| Sensitivity (S/N = 20dB) | < 800uV/m |
| Distortion | < 1.8% |
| Frequency Response | 20 - 2k @ 400Hz reference, -6dB |
| ANT | Loop antenna |
| General | |
| Supply Voltage | 115V or 230V, 50 - 60Hz (Voltage Select Switch) |
| Dimensions (H x W x D) | 1.7" (44 mm) x 19" (483 mm) x 7.9" (200 mm) |
| Weight | 5.5 lbs (2.5 kg) |
