Denon Professional DN-412X 12 Channel 2 Bus Audio Mixer (Discontinued)

Part #:
DN-412X
Model #:
DN-412X
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The DN-412X 12-Channel Audio Mixer is crafted with public speaking, conferences, and performing arts venues in mind and offers the utmost capability in a compact, 2-bus portable tabletop format.

Description

The Denon Professional DN-412X 12-Channel Audio Mixer is crafted with public speaking, conferences, and performing arts venues in mind and offers the utmost capability in a compact, 2-bus portable tabletop format.

With flexible routing options and a multitude of onboard DSP tools, this mixer surpasses the demands of virtually any environment that calls for switching and mixing audio sources. It features seven balanced XLR inputs with switchable +48v phantom power, 3-band EQ for additional tonal shaping, two aux sends per-channel for external effects and monitoring, and a 9-band graphic EQ for main or monitor outputs. A headphone jack with an independent level control enables additional monitoring and mixing. 60mm faders with LED meters provide precise control and visual feedback for accurate, hands-on mixing.

With its superb performance, rugged, high-quality construction and diverse connectivity options, the Denon DN-412X epitomizes Denon Professional’s commitment to you—the professional user.

The Denon DN-412X offers high-fidelity sound and high-quality DSP tools in a single compact package. Each microphone channel is outfitted with an ultra-low-noise DyNamic Audio (DNA) microphone preamp with generous input signal headroom for unprecedented sound quality and a robust audio signal path. The high headroom of these preamps results in cleaner mixes, a purer signal path, and detailed, articulate audio that easily makes itself heard, even through a high environmental noise floor. Onboard analog compression (channels 1-2) helps to control dynamics and automatically tame unpredictable audio level surges for a cohesive, well-defined mix. With high headroom, pristine sound, and built-in dynamic control, the Denon DN-412X ensures that the full dynamic range of your mix comes across with impressive clarity.

Features

  • 7 XLR inputs with Denon Professional mic preamps
  • Dynamic compression (Channels 1-4)
  • 3-band EQ plus 2 aux sends per channel
  • 60 mm faders with mute switch and LED meters
  • USB audio connectivity with level control
  • 100 Alesis DSP effects

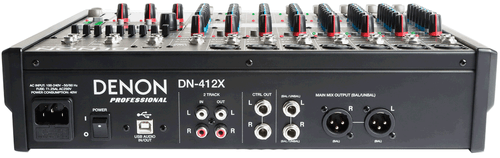

  • Balanced XLR, balanced/unbalanced 1/4” outputs
  • 9-band graphic EQ for main or monitor outputs
  • Headphone out with independent level control
  • USB jack to power lamps or charge mobile devices

Specifications

Mono Input Channels
Microphone Inputs Electronically balanced, discrete input configuration
Frequency Response 20 Hz to 20 kHz, +0.5 dB
THD+N
Gain Range 0 dB to 45 dB (Mic)
SNR 90 dB
Line Inputs Electronically balanced
Frequency Response 20 Hz to 20 kHz, +0.5 dB
THD+N
Sensitivity Range -15 dBu to 30 dBu
Impedances
Microphone Inputs 51.1 KOhms
Channel Insert Return 200 KOhms
All Other Inputs >100 KOhms
2-Track Outputs 10 KOhms
All Other Outputs 20 KOhms
Equalization
High-Shelving ±15 dB @ 12 kHz
Mid-Bell (Mono) ±15 dB @ 2.5 kHz
Low-Shelving ±15 dB @ 80 Hz
Main EQ 9 EQ bands (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz), ±15 dB
DSP (DFX/Effects)
A/D & D/A Converters 24-bit
DSP Resolution 24-bit
Effects 10 DSP effects families with 10 variations available per family
Presets 100 total
Controls Rotary encoder preset selector, DSP mute switch, peak LED indicator
Main Mix
Noise (Bus Noise) -64 dBr (ref: +4 dBu, fader 0 dB, channels muted)
-64 dBr (ref: +4 dBu, fader 0 dB, all input channels assigned and set to “unity” gain)
Phantom Power Mic Pin2/Pin3 and Pin1 47±2V
Power
Main Voltage 100–120 VAC ~60 Hz
Power Consumption 40 W
Fuse 1.25 A
Main Connection Standard IEC receptacle
Dimensions (H x W x D) 3.1" (80 mm) x 14.1" (358 mm) x 13.6" (346 mm)
Weight 9.0 lbs (4.1 kg)

DOCUMENTS

In The Box

  • DN-412X
  • Power Cable
  • User Guide
  • Safety & Warranty Manual
