- Description
Details

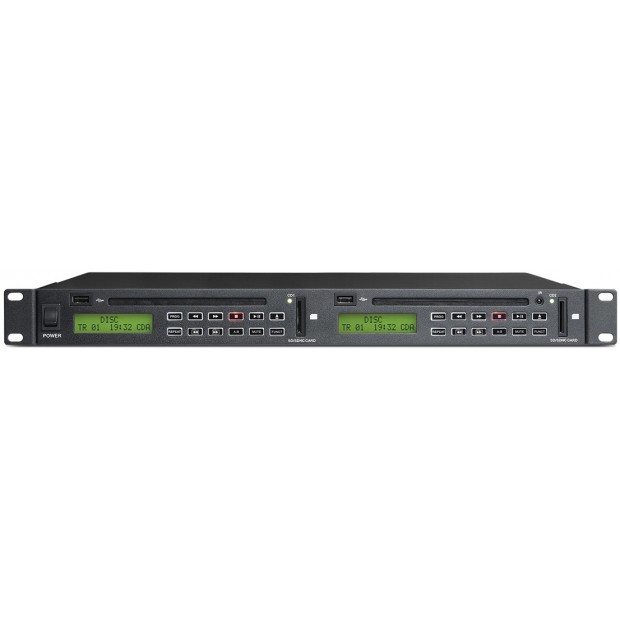

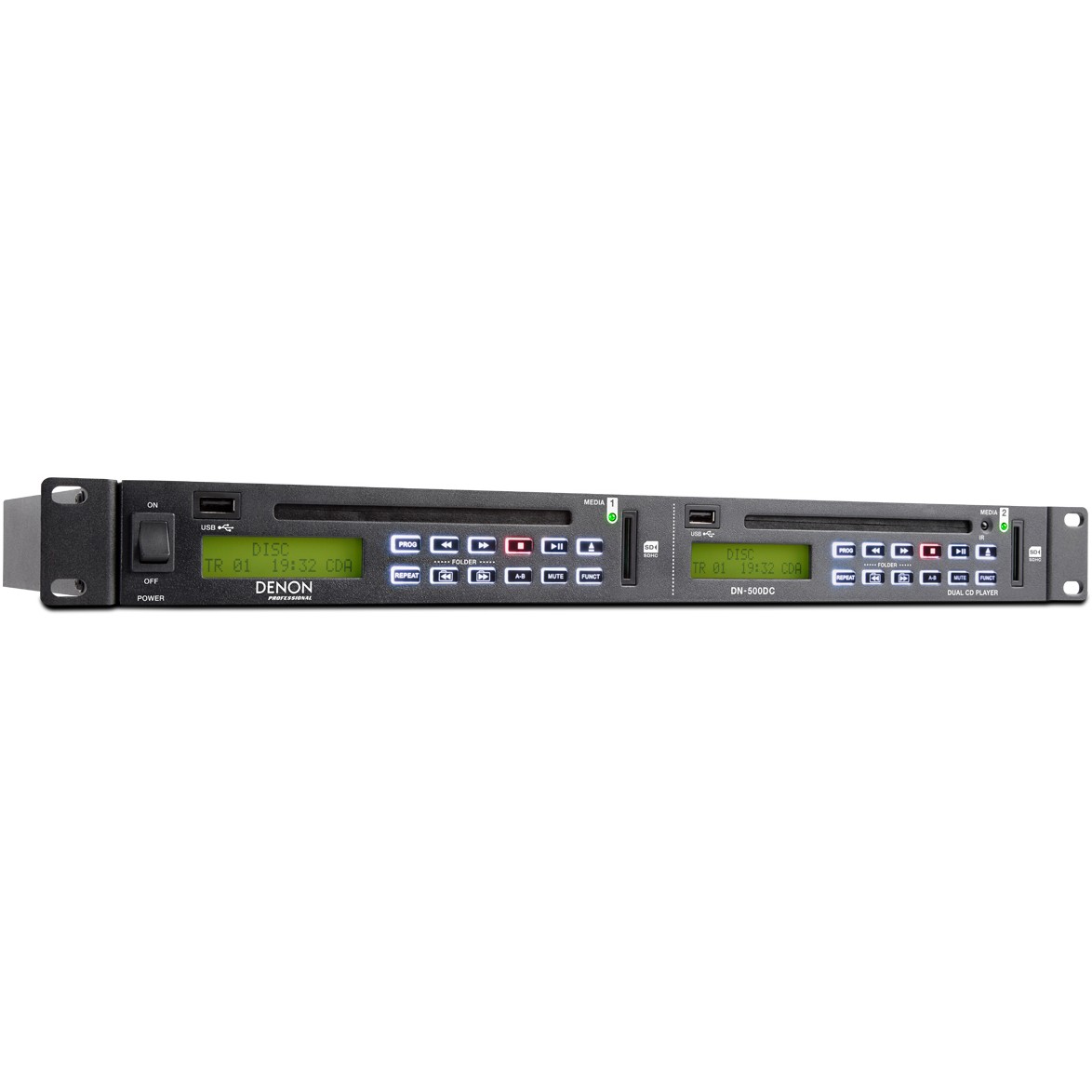

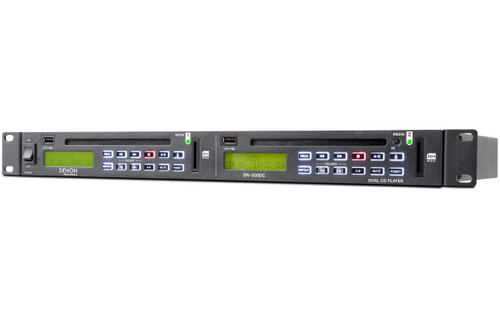

The DN-500DC is a multi-format, feature-rich media player with unlimited possibilities for any installation requiring playback from CD, or MP3 SD/USB digital media. Because of the two discreet outputs, two playback programs can be sent to separate zones, such as two conference center meeting rooms, house-of-worship spaces, or educational study facilities. This configuration also excels in theater and live sound applications. In addition, the DN-500DC has RS-232C capability for installs with an existing control network.
- Features
Features
- Dual CD, SD and USB media player
- Independent slot-in transport control for each CD drive
- Supports CD, CD-R, CD-R/W, MP3, and USB/SD WAV/MP3
- Balanced XLR and unbalanced RCA outputs for each player
- RS-232C remote control

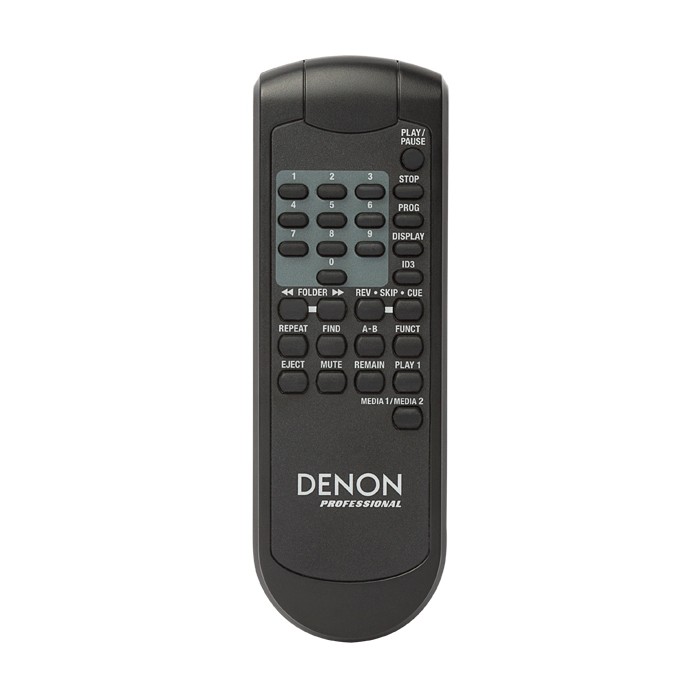

- IR remote control included
- Specification
System Dual CD and media player Compatible Media CD, USB device (mass storage class) SD/SDHC card Supported Device Formats, File Systems CD: CD, CD-R, CD-R/W
USB: FAT16, FAT32
SD/SDHC: FAT16, FAT32Supported File Formats (MP3) Sample rate: 44.1 kHz
Bit rate: 32 kbps to 320 kbps and VBR
Format: MPEG1 Audio Layer 3
File extension: .mp3Storage Capacity USB, SD/SDHC: Up to 32 GB Output Level 1.2V (± 2 dB) Audio Frequency Range 20 Hz – 19 kHz (+1.0 dB) Signal-to-Noise Ratio > 70 dB (A-weighted) Total Harmonic Distortion < 0.2% Channel Separation > 60 dB Power Connector: IEC
Input Voltage: 110 VAC, 60 Hz
Consumption: 50 VADimensions (H x W x D) 1.65" (42 mm) x 16.9" (430 mm) x 9.84" (250 mm) Weight 11 lbs (5 kg) - Documents
Documents
- In The Box
In The Box
- (1) DN-500DC
- (1) Power Cable
- (1) Rack Ears and Screws
- (1) Remote Control
- (1) User Guide
- (1) Safety and Warranty Manual
