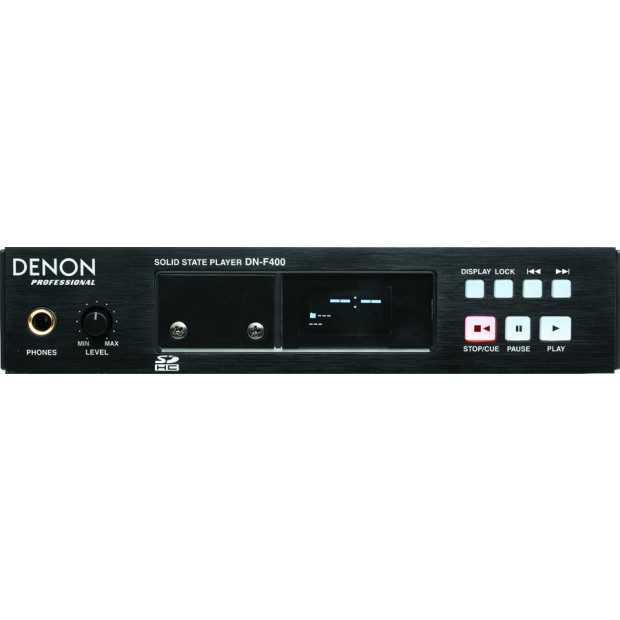

Denon Professional DN-F400 Solid State Audio Player (Discontinued)

Description

Details

The Denon DN-F400 Solid State Audio Player builds upon the professional quality and innovation that has long made Denon Professional the undisputed leader in innovative audio design. Delivering powerful performance in a compact, single RU half-space package, the DN-F400 is designed to deliver dependability in critical applications where audio runs continuously or must be triggered at a moment’s notice using the RC-F400S remote controller (sold separately). Applications including background music, music-on-hold, continuous or repetitive messaging, emergency announcements, and sound fx playback for sporting events and theater will benefit from the high-quality and reliability of the Denon Professional brand name.

Features

Features

Plays mono and stereo uncompressed WAV (44.1/48kHz) and MP3 files
Utilizes robust, industry-standard SD and SDHC card formats
Balanced (Phoenix-type) and unbalanced audio outputs
Easy-to-operate tape-recorder type control panel
Front-panel headphone output with level control
Random, Repeat One, Repeat All modes
External RS-232c and GPIO control
Program playlists via .m3u files
Simple, intuitive operation
Securable SD slot

Specification

System
Playback Media	SD/SDHC Flash Media
Playback File Format	WAV, MP3 (MPEG-1 Layer III)
Media Format	FAT/FAT32
MP3 Bit Rate	32-320 kbps/Stereo, VBR
Sampling Frequency	44.1kHz / 48kHz
Quantization	16-bit
Audio
Audio Channels	2 (Stereo) / 1 (Mono)
Frequency Response	20 Hz ~ 20 kHz ± 1.0 dB
Dynamic Range	96 dB
Signal-to-Noise Ratio	98 dB(1 kHz, 0 dB playback, A filter)
Channel Separation	86 dB(1 kHz, 0 dB playback, A filter)
Total Harmonic Distortion	0.005%(1 kHz, 0 dB playback, A filter)
Balanced Analog Output (Phoenix)	+24 dBu / 600 ohms(0dB, Trim Max.)Trim Range -28 ~ 0 dB
Unbalanced Analog Output (RCA)	2 Vrms / 1 kohm(0dB, Trim Max.)Trim Range -28 ~ 0 dB
Headphone Output	20 mW / 32 ohms
Headphone Output	20 mW / 32 ohms
Frame Search Accuracy	1/75 second
Serial Remote (RS232C)	D-Sub 9-Pin, Female
Parallel Remote	D-Sub 25-Pin, Female
General
Power Supply	DC 5V (DA620PMD)
Power Consumption	TBD W
Dimensions (H x W x D)	1.87" (47.5 mm) x 8.54" (217 mm) x 6.77" (172 mm)
Weight	3 lbs (1.7 kg)
