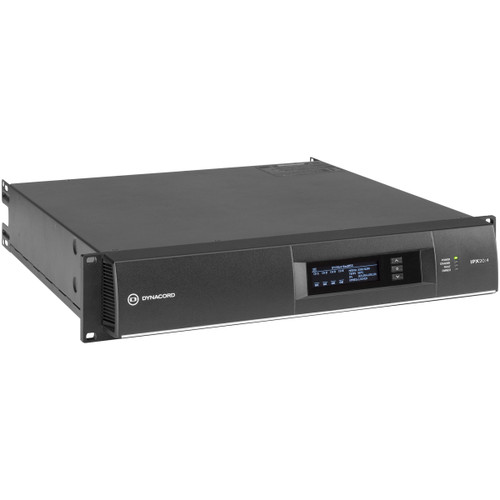

Dynacord IPX20:4 Multi-Channel Installation DSP Amplifier
The IPX20:4 is a high-performance 4-channel installation DSP Class D amplifier engineered for demanding fixed audio applications, including stadiums, arenas, houses of worship, concert halls, and theaters. Delivering 4 x 5000 watts of output power, it combines advanced DSP processing, flexible loudspeaker configuration, and network integration in a robust installation-ready platform.
Its integrated DSP supports both 48 kHz and true 96 kHz processing with FIR Drive technology for precise loudspeaker optimization and superior audio performance. The amplifier also features Dante and OCA integration via OMNEO networking with comprehensive fallback options for reliable redundant audio transport. Multiple operating configurations are supported, including low-impedance, 70V/100V direct drive, and bridged 140V/200V operation, allowing compatibility with a wide range of loudspeaker systems.
The IPX20:4 utilizes a digitally controlled interleaved PFC power supply for stable operation even under challenging mains conditions while minimizing reactive current and reducing installation costs. Integrated ecoRAIL technology automatically lowers power consumption during idle or low-demand operation while maintaining full monitoring and amplifier readiness. Front-panel OLED display control and complete IRIS-Net integration provide convenient local and remote system management for professionally installed sound environments.
