- Description
Details

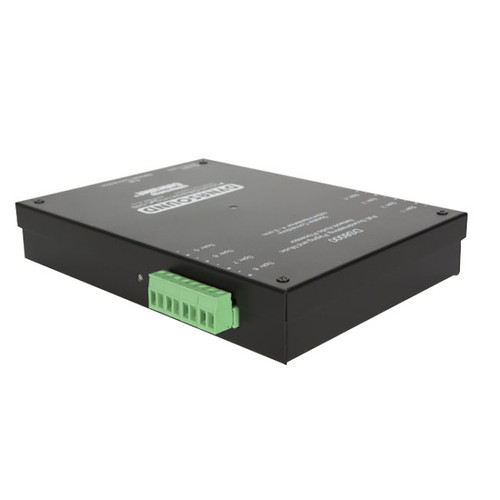

The DS8000 is the industry’s first PoE sound masking system designed to use non-proprietary, industry standard network hardware. Using CobraNet™ digital audio network technology the DS8000 is designed to communicate with Dynasound’s DS3002/3008 series DSP sound masking processors. Each DS8000 provides from two to four independent sound masking generators, depending on firmware. Each sound masking generator has 1/3 octave band equalization, adjustable high pass and low pass filters. The default configuration provides for two channel (A-B) sound masking and six additional audio channels available for paging and background music functions. Every speaker can be independently controlled or rezoned via network software.
- Features
Features
- Provides individual network control for up to eight DS1356 sound masking speakers
- 4-8 ohm Output Impedance
- Uses industry standard PoE network switches
- PoE Sound Masking
- ETL listed UL60065 and UL2043
- CobraNet ™ digital audio network ready. Operates on standard 10-100 base-T networks
- PoE (Power over Ethernet) provides network audio and power using standard Cat-5 cable
- Eight amplifier channels with full DSP allows detailed configuration of every speaker output. No primary-secondary limitations
- Paging and Music Network Audio Processor
- Cat5 Network Connection
- 48V 15W Optional Power
- Low Profile
- Specification
Dimensions (H x W x D) 1.75'' (25.4 mm) x 5.25'' (133.35 mm) x 7.25'' (184.15 mm) Finish Black Weight 2 lbs - Documents
