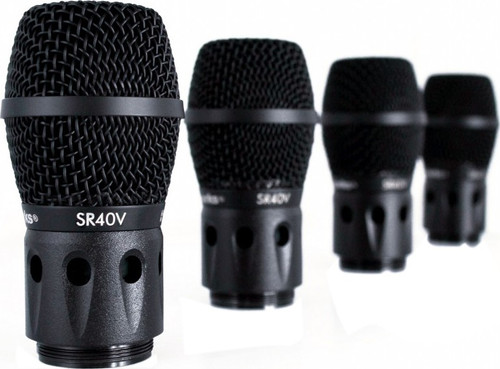

Earthworks WL40V Wireless Vocal Microphone Capsule

By Earthworks

Earthworks WL40V Wireless Vocal Microphone Capsule

Name: Earthworks WL40V Wireless Vocal Microphone Capsule
Brand: Earthworks
SKU: EARTHWORKS-WL40V
Price: 699 USD
Availability: InStock

Write a Review

Part #:

WL40V

Model #:

WL40V

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Engineered to deliver studio quality performance to the wireless world, the Earthworks hand-tuned WL40V features fast impulse response, wide frequency response and high SPL handling.

Description

It excels at distance capture, making it ideal for broadcast, corporate, and live performance applications. Its near-perfect hypercardioid polar response and 30Hz - 40kHz extended flat frequency response translate to a natural on and off-axis performance coupled with benchmark levels of sonic clarity and presence. The capsule’s ultra-fast impulse response delivers a highly accurate reproduction of the nuanced details of vocals.

Interchangeable with any screw-on-type handheld transmitters that receive a 31.3 mm/pitch 1.0 mm threading, the electret-based WL40V works with transmitters from Lectrosonics®, Line 6®, Shure® and Sony®. Its circuitry has been specifically hardened for use with 2.4GHz wireless systems, which frequently exhibit noise with electret-based capsules, making it an ideal replacement capsule for those systems.

Features

Frequency range spanning from 30Hz – 40kHz
Hand-tuned and tested
Interchangeable with any screw-on-type handheld transmitters that receive a 1.25″/28 thread pitch (31.3mm/pitch 1.0mm threading)
Delivers detailed and realistic vocal sound that requires little to no EQ
Natural on and off-axis performance
Benchmark levels of clarity and detail
Hardened against 500MHz and 2.4GHz
More gain before feedback
Excels at distance capture

Specifications

Frequency Response	30Hz-40kHz
Polar Pattern	Hypercardioid
Sensitivity	10mV/Pa
Power Requirements	5 to 12V @ 500µA using second & outer ring on 3-ring concentric connector
Max Acoustic Input	135dB SPL at 5V
Output Impedance	300Ω, unbalanced (center & outer ring)
Noise	22dB SPL equivalent (A weighted)
Threads	1.25″/28 thread pitch (31.3mm/pitch 1mm threading)
Dimensions L x D	3.7 in. (93.98mm) 1.93 in. (49mm) max diameter & 1.46 in. (37mm) min. diameter
Weight	0.2 lbs (90g)
