EAW AC6 Powered 6 x 6" Adaptive Column Loudspeaker

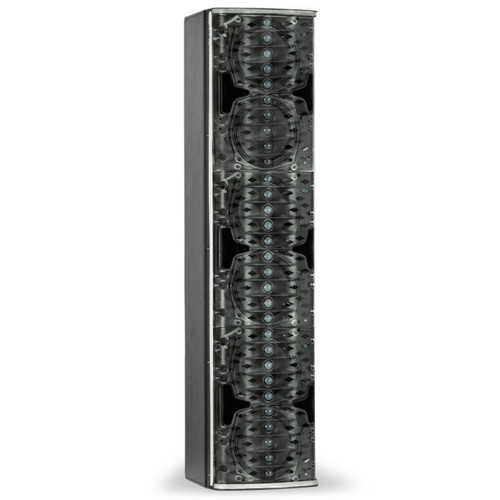

Each AC6 is comprised of six 6" woofers and thirty 1" dome tweeters mounted to a CSA waveguide. Each transducer is individually amplified and processed for an unprecedented level of control and clarity.
Adaptive technology allows vertical coverage to be perfectly customized to your venue across the entire 20kHz to 65Hz operating range resulting in even and musical coverage through the venue.
A modular design approach provides redundancy and full serviceability from the front of the unit making AC6 the easiest to service column loudspeaker available.

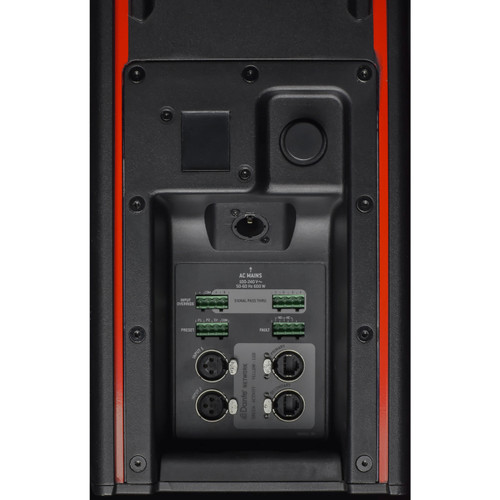

AC6 is designed to disappear visually while being rugged enough for portable use and carry an IP rating of IP54. All wiring is designed to be hidden behind the column and can be passed through to columns above or below it.
- Features
Features
- Adaptive Performance™ manages coverage and directivity via Resolution™ 2 software
- Suitable for outdoor installation when input/output weather protection covers are used
- Proven EAW acoustical design and DSP including Focusing™ and DynO™ provides a pristine impulse response at all output levels
- Integrated Dante™ redundant networking including Analog redundancy capability
- On-board diagnostics and Adaptive Healing continuously monitor and correct performance in real time
- Specification

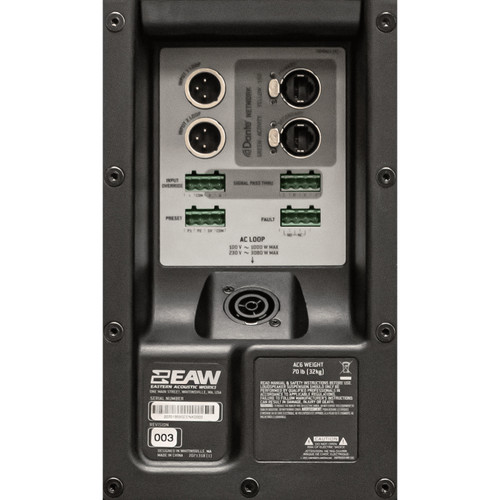

Max SPL 143 dB Operating Range (-10 dB) 65Hz – 20kHz Nominal Beamwidth 120 ° Horizontal x Adaptive Vertical LF Transducer, Loading 6 x 6 in cone, 1.7 in voice coil vented (w/ CSA) HF Transducer, Loading 30 x 19 mm dome tweeter, horn loaded Wiring 2x XLRF, Pin 1 chassis, pin 2+, pin 3- 2x Separate Loop through XLRM (for analog signal only) Power Draw 600W Dimensions (H x W x D) 38.7" (983 mm) x 9.4" (239 mm) x 10.4" (264 mm) Net Weight 70 lbs (32 kg) - Documents
