The NT116S is a compact, self-powered subwoofer engineered to deliver exceptional low-frequency output in a tour-ready, flyable design. A high-excursion 16-inch woofer with a 4-inch voice coil provides 50% more air displacement than a typical 15-inch driver, ensuring powerful, controlled bass response with outstanding clarity. Powered by a 4000W integrated Class-D amplifier, the NT116S achieves up to 135 dB max SPL with extension down to 25 Hz, outperforming many larger-format subwoofers.
Designed for fast deployment and maximum versatility, the NT116S supports both flown and ground-based configurations. With an optional rigging kit, it integrates seamlessly with NT206L arrays using compatible flybars and transition hardware, or operates as a standalone flown subwoofer system. Integrated locating pins and mounting options ensure secure ground-stacked or pole-mounted use.
Built for demanding production environments, the NT116S combines high-output performance with flexible rigging architecture and universal power compatibility. It is an ideal solution for large-scale touring, installations, and high-impact live sound applications requiring deep, reliable low-frequency reinforcement.
| Frequency Response | 25 Hz - 125 Hz |
|---|---|
| Max SPL | 135 dB |
| Operating Mode | Single Amp VLF DSP w/ EAW DynO |
| Subsystem | 1x16" cone, 4" VC Vented |
| Power Handling | 4000W |

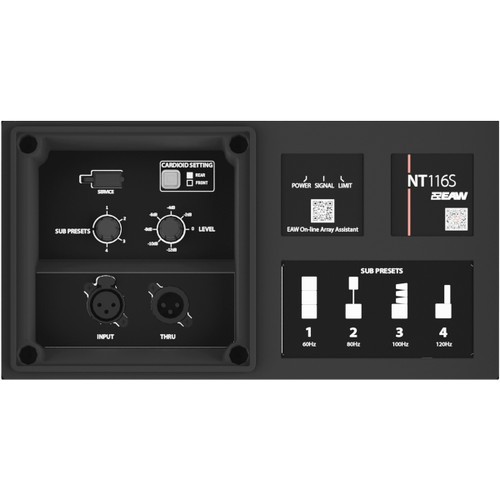

| Connections | Neutrik PowerCON TRUE1 TOP Input & Thru XLR/Analog Input & Thru |
| Dimensions (H x W x D) | 21.6" (548.64 mm) x 21.5" (546.1 mm) x 25.6" (650.24 mm) |
| Weight | 112 lbs (50.9 kg) |
