Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW's signature acoustical design to deliver solutions for rental firms and system integrators. The RADIUS articulated array features OptiLogic, providing automatic array self-detection and instant optimization including air loss compensation and more. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW's acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.
| Configuration | |
|---|---|

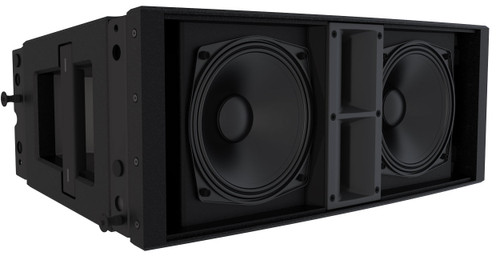

| Subsystem | Transducer - LF – 1 x 8 in cone, 2 in voice coil; LF/MF – 1 x 8 in cone, 2 in voice coil; HF – 2 x 1 in exit, 1.4 in voice coil compression drivers. Loading - LF – Vented; LF/MF – Vented; HF – Horn-loaded |
| Operating Mode | Amplifier Channels - Tri-amp LF,LF/MF, HF External Signal Processing - DSP w/EAW Focusing™ and DynO™ |
| Performance | |
| Operating Range | 70 Hz to 18 kHz |
| Nominal Beamwidth | Horizontal 120° Vertical 12° |
| Calculated Axial Output Limit (whole space SPL) | Average - 122 dB LF,MF, HF Peak - 128 dB LF,MF, HF |
| Input | Type - Electronically balanced Max Input Level - 21dBu Impedance - 20kOhm (balanced) Input Wiring - XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only) Input Selection - Analog, Dante |
| Amplifiers & Processing (LF/MF/HF) | Type - Modified Class D Maximum Output - 3x 500W Driver Protection Integral DSP limiting |
| AC Mains (nominal) | Connector - Neutrik PowerCon® Input 100V to 240V Frequency - 50Hz to 60Hz Power Consumption - Idle – 26W Peak Draw – 250W |
| Controls/Communication | Connections - 2x Neutrik® etherCON™, RJ-45 Protocols - Ethernet/Dante Software EAWmosaic™ (available on the App Store) Indicators - LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior) User Controls - Push-button Rotary Encoder |
| Dimensions (H x W x D) | 9.8" (249 mm) x 27" (683 mm) x 13" (332 mm) |
| Weight | 40.5 lbs (18.4 kg) |
