The VFM159i two-way, stage monitor loudspeaker system includes a direct-radiating, vented, 15" LF cone transducer and a 1" exit / 1.75" voice coil HF compression driver loaded with a large, square, user-rotatable 90° x 60° coverage pattern horn.
Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFM159i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

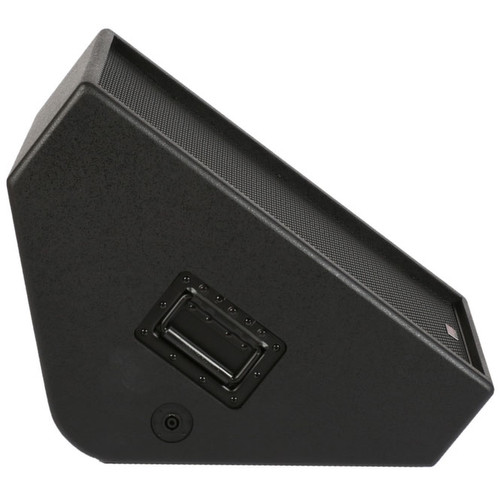

The VFM159i features a classic stage monitor design with NL4 connectors located on both sides for easy loop-through connections. They also include a pole mount cup should they need to be used as small PA mains. Engineers integrated the handles into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.
| Operating Mode | Amplifier Channel: Single-amp LF/HF External Signal Processing: High pass filter |
|---|---|
| Operating Range | 63 Hz to 20 kHz |
| Nominal Beamwidth (Rotatable) | 90° H x 60° V |
| Axial Sensitivity (whole space SPL) | LF/HF 97 dB; 63 Hz to 20 kHz |
| Input Impedance | Nominal: LF/HF 8Ω Minimum : 6.4 @ 151 Hz |
| High Pass Filter | High Pass =>50 Hz, 12 dB/octave Butterworth |
| Accelerated Life Test | LF/HF 69.3V; 600 W @ 8Ω |
| Calculated Axial Output Limit | Average: LF/HF 126 dB Peak: 132 dB |
| Dimensions (H x W x D) | 19.3" (489 mm) x 17.5" (445 mm) x 23.4" (596 mm) |
| Net Weight | 49 lbs (22.2 kg) |
| Shipping Weight | 65 lbs (29.5 kg) |
