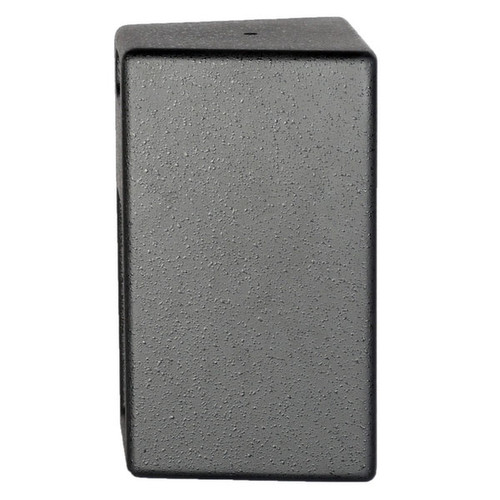

The VFR "i" revision brings the VF concept more fully into the EAW product line. VFR "i" Series black versions provide a handle designed into the rear of the cabinet. An installation only white version comes without handles or a pole mount cup.

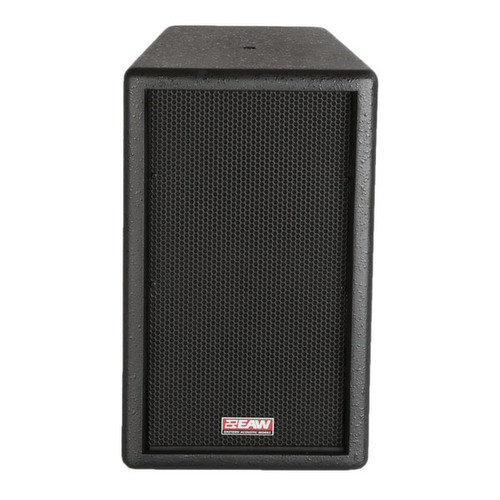

The VFR69i two-way, full range loudspeaker system includes a directradiating, vented, 6" LF cone transducer and a 1" exit / 1.25" voice coil HF compression driver loaded with a large, square, userrotatable 90x50 coverage pattern horn built on the classic MK Series horns. These horns deliver exceptional high frequency dispersion, and their square shape lets users "rotate the enclosure around the horn" to maintain directivity in a horizontal configuration.
Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary "beamwidth-matching" internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFR69i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.
The VFR69i black version includes traditional portable features such as a pole-mount cup, parallel NL4 4-terminal connectors, barrier strip connectors, an optional transformer, and handles that accept accessory covers for permanent installation. The white, installationonly versions omit handles and the pole-mount cup but include NL4 connector, barrier strip connector, an optional transformer, and multiple mounting points.
| Operating Range | 70 Hz to 20 kHz |
|---|---|
| Axial Sensitivity (whole space SPL) | LF/HF: 89 dB; 70 Hz to 20 kHz |
| Input Impedance | Full Range Passive: 250 @ 8Ω |
| High Pass Filter | High Pass =>70 Hz, 12 dB/octave Butterworth |
| Accelerated Life Test | LF/HF 44.7V; 250W @ 8 ohm |
| Calculated Axial Output Limit | Average: LF/HF 113 dB Peak: 119 dB |
| Optional Accessories | Transformer Kit, ACC-TXVFR: Item Number 2039034 EAW U-Bracket V6U BLK [UBKT-V6U]: Item Number 2039420 EAW U-Bracket V6U WHT [UBKT-V6U]: Item Number 2039421 Eye Bolt Forged Shoulder M10 X 1.5 X 37 mm: Item Number 0029818 |
| Dimensions (H x W x D) | 14.8" (375 mm) x 8.88" (225.5 mm) x 8.4" (214 mm) |
| Net Weight | 15 lbs (6.8 kg) |
| Shipping Weight | 21 lbs (9.5 kg) |
